Front Wiper/Washer Switch

  1. Remove instrument panel lower cover. Remove lower column cover. Unfasten hold-down clip securing harness.
  2. Disconnect combination switch harness connectors from body harness. Ensure continuity is present between terminals as indicated. See Fig 1 . Repair or replace as necessary.

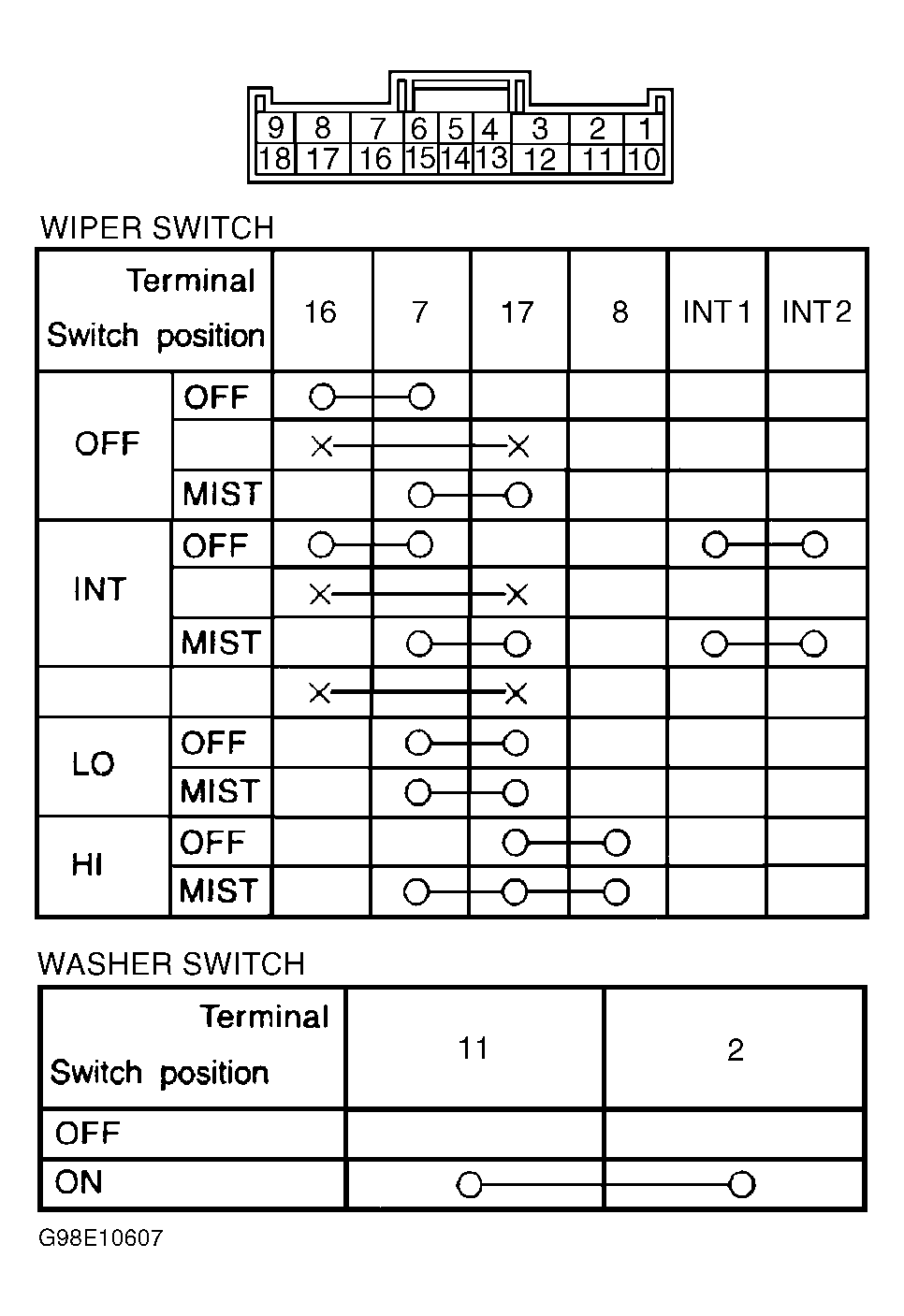

Fig 1: Testing Front Wiper/Washer Switch
G98E10607Courtesy of SUBARU OF AMERICA, INC.
