Reverse Check Mechanism Operation

The selector arm again moves to the 5th and reverse side. When the shift is made to reverse, the selector arm moves to the reverse position while pushing the reverse accent shaft and reverse check cam together.

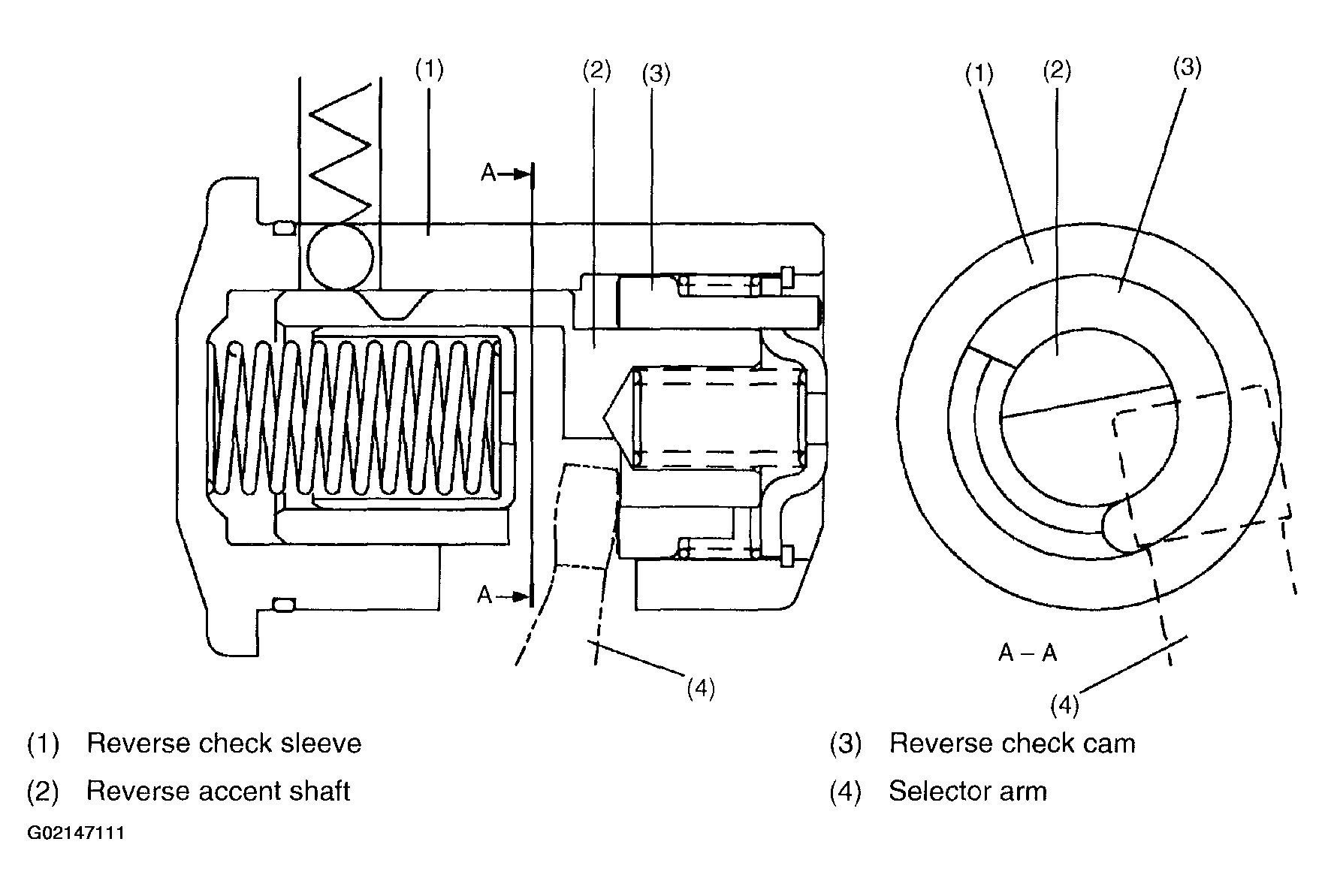

Fig 1: Reverse Check Mechanism Operation
G02147111
