Wheel Alignment Specifications & Procedures: Loyale

WARNING: This page is about a different car, the 1990 Subaru XT6, 1990 Subaru XT, 1990 Subaru Loyale, 1990 Subaru Legacy, and 1990 Subaru Justy. However, it is still accessible from the selected car via links, so may be relevant.

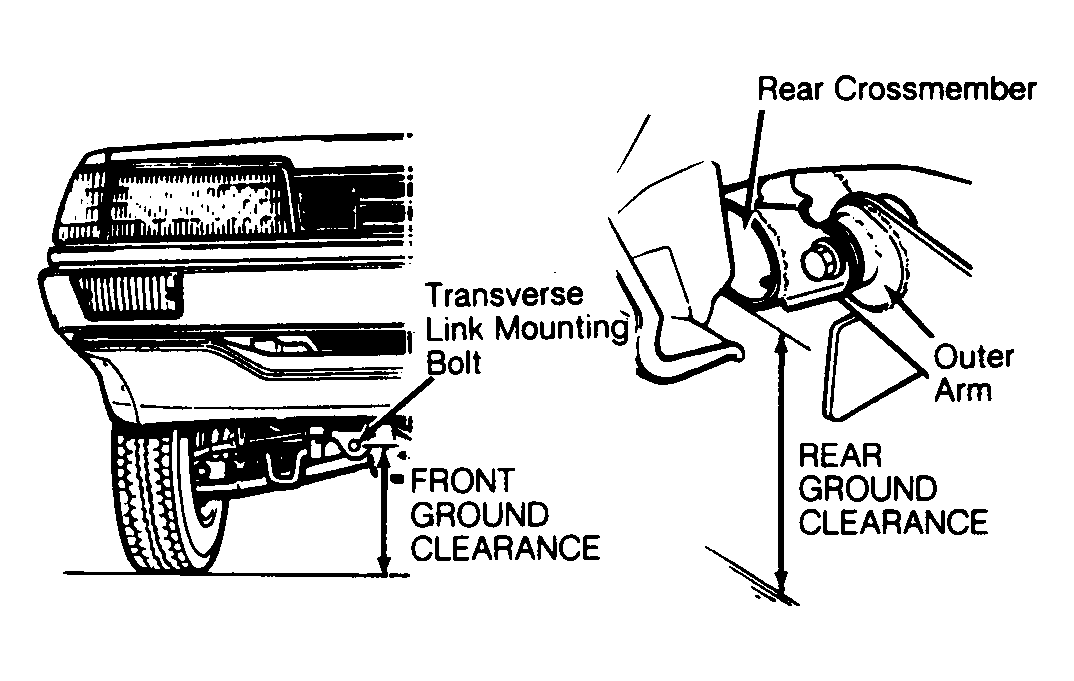

Measure front riding height (ground clearance) between transverse link front mounting bolt and ground. Measure rear riding height (ground clearance) between ground and bottom, outer end of rear crossmember pipe (below point where outer arm bolts to rear crossmember pipe). See Figure . Adjust to specifications. See RIDING HEIGHT SPECIFICATIONS  .
