Door Trim Panel: Notes

NOTE: Use the following illustrations for removal & installation procedures: See Fig 1 and Fig 2 below.

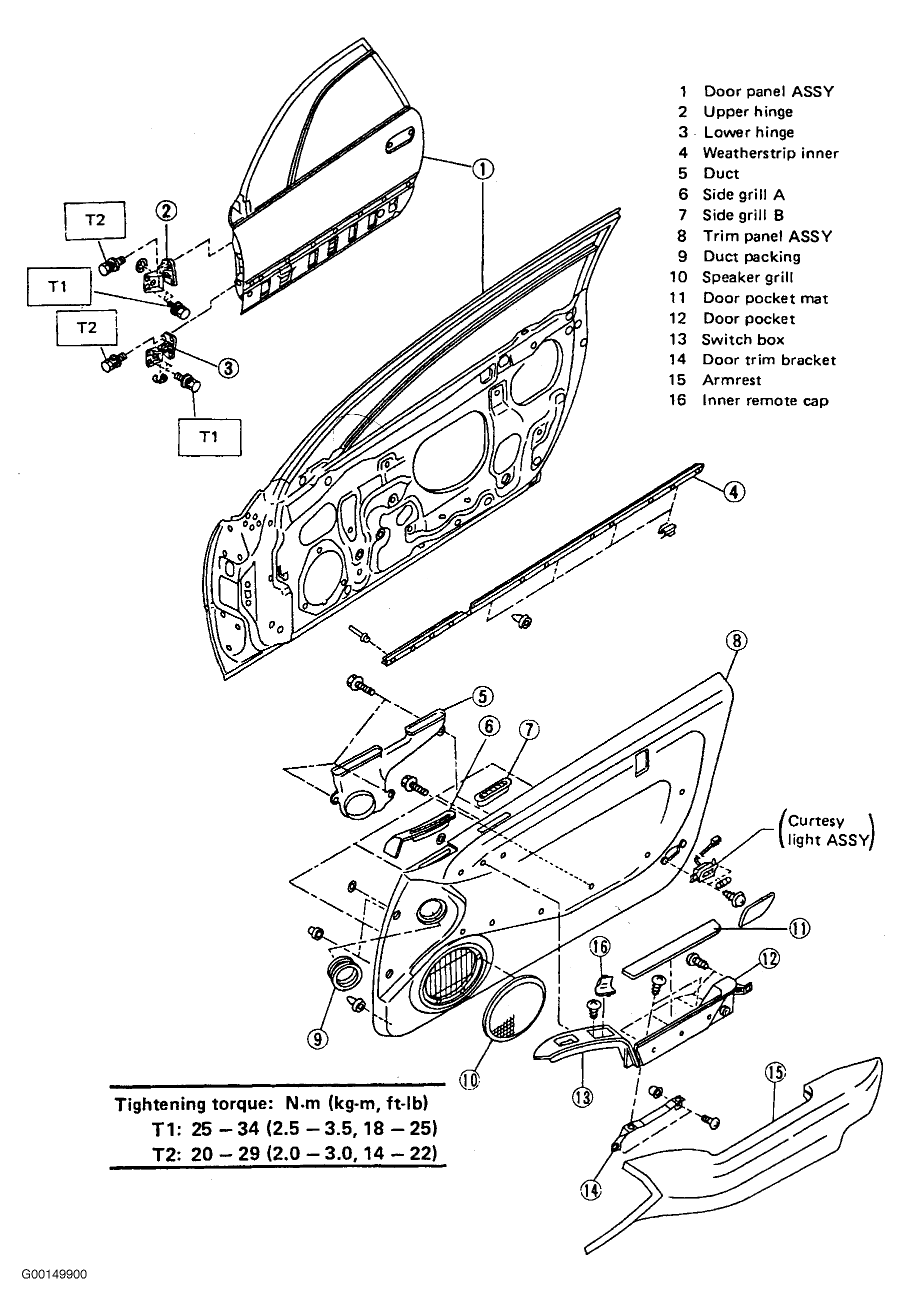

Fig 1: Exploded View of Door Panel Trim
G00149900Courtesy of SUBARU OF AMERICA, INC.

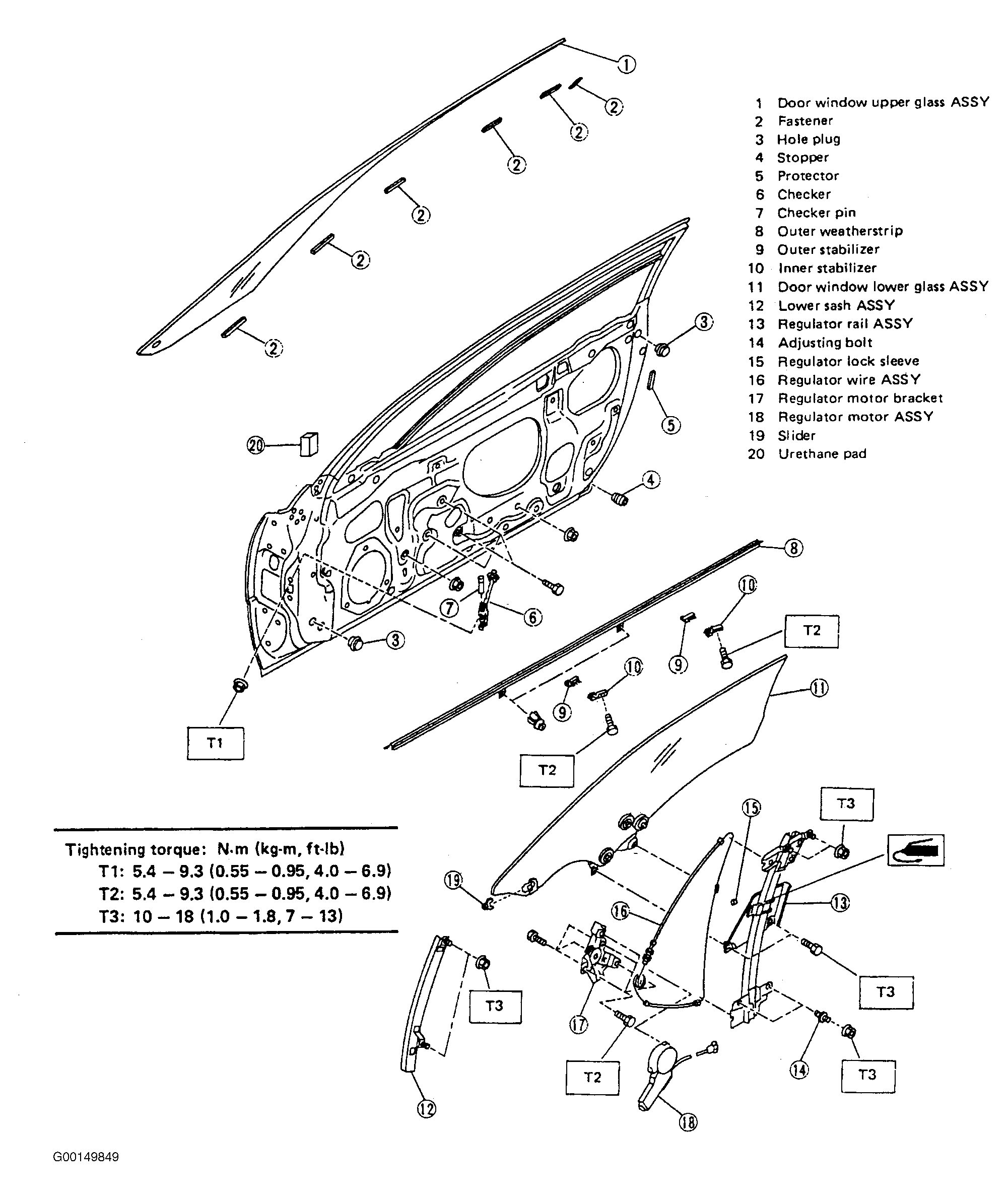

Fig 2: Exploded View of Door Glass & Regulator
G00149849Courtesy of SUBARU OF AMERICA, INC.
