Code 62: Idle Up System ( )

Fig 1: Wiring Schematic - Code 62: Idle Up System

G118334

Courtesy of SUBARU OF AMERICA, INC.

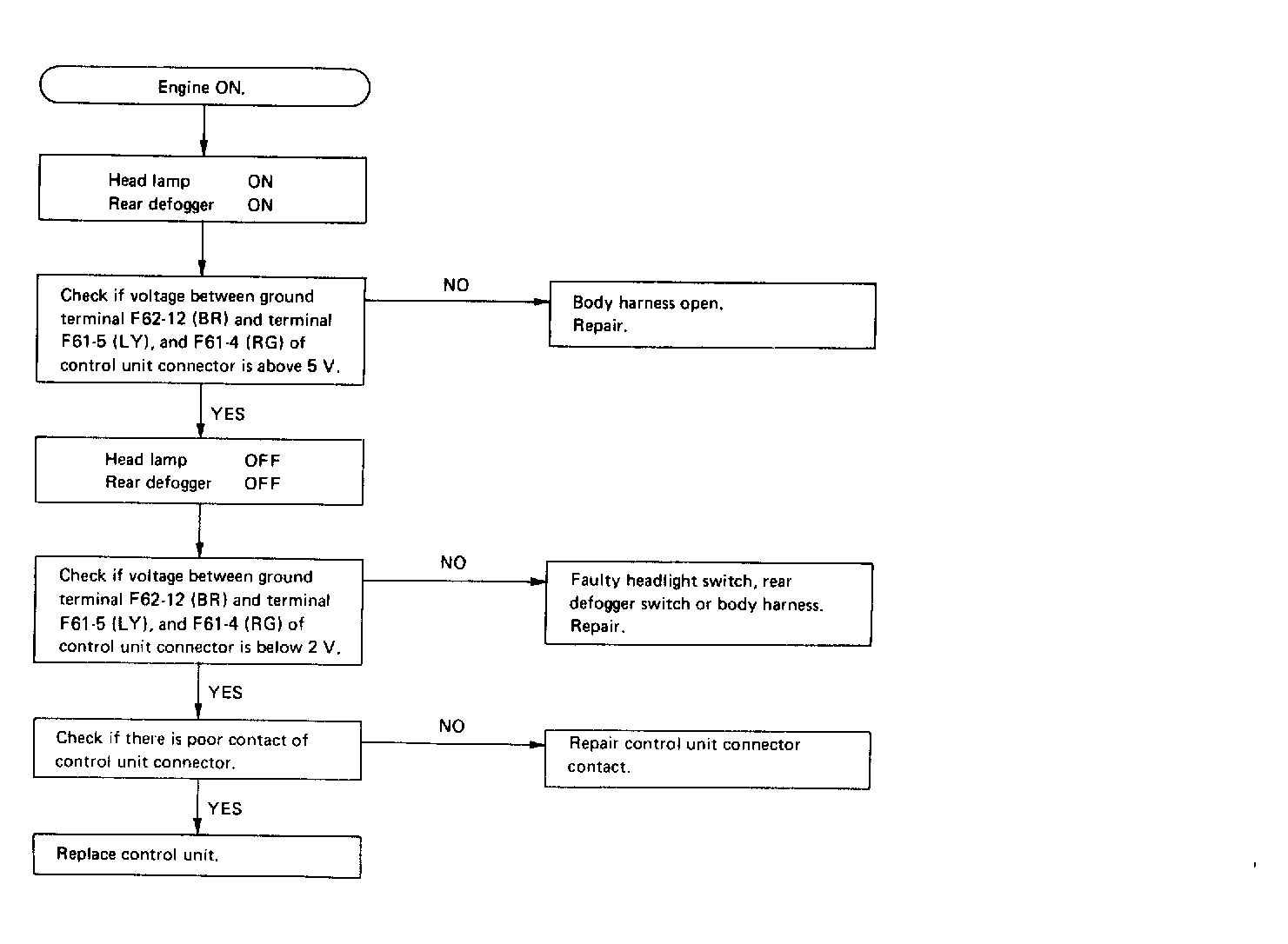

Fig 2: Flow Chart - Code 62: Idle Up System

G121932

Courtesy of SUBARU OF AMERICA, INC.
