Code 24: Idle Up Solenoid

Fig 1: Wiring Schematic - Code 24: Idle Up Solenoid

G118321

Courtesy of SUBARU OF AMERICA, INC.

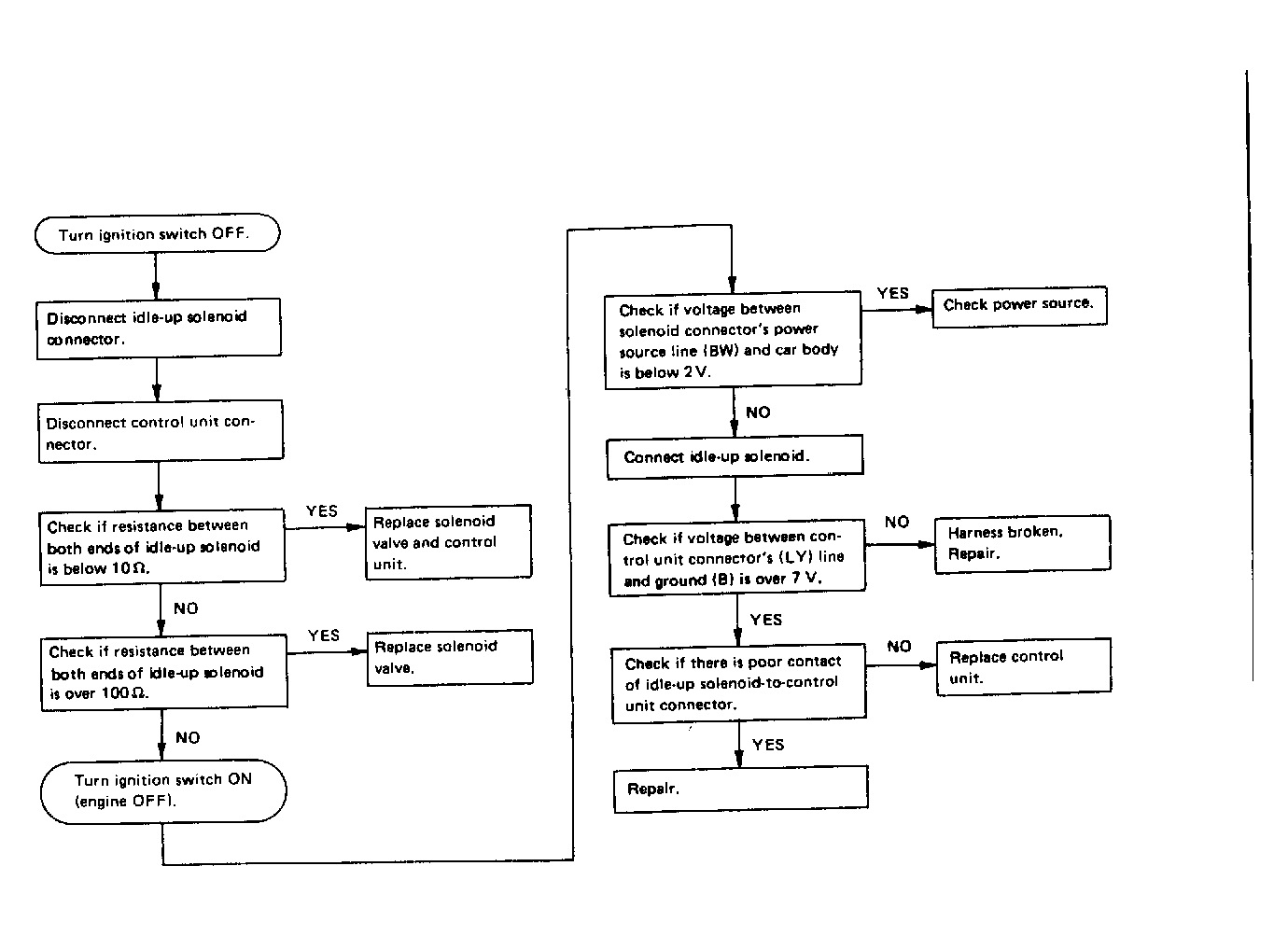

Fig 2: Flow Chart - Code 24: Idle Up Solenoid

G121926

Courtesy of SUBARU OF AMERICA, INC.
