Home
>>
Subaru
>>
1991
>>
XT Standard
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System - Electronic Power
>>
Self-Diagnostic Charts
>>
Faulty Power Controller Control
Faulty Power Controller Control

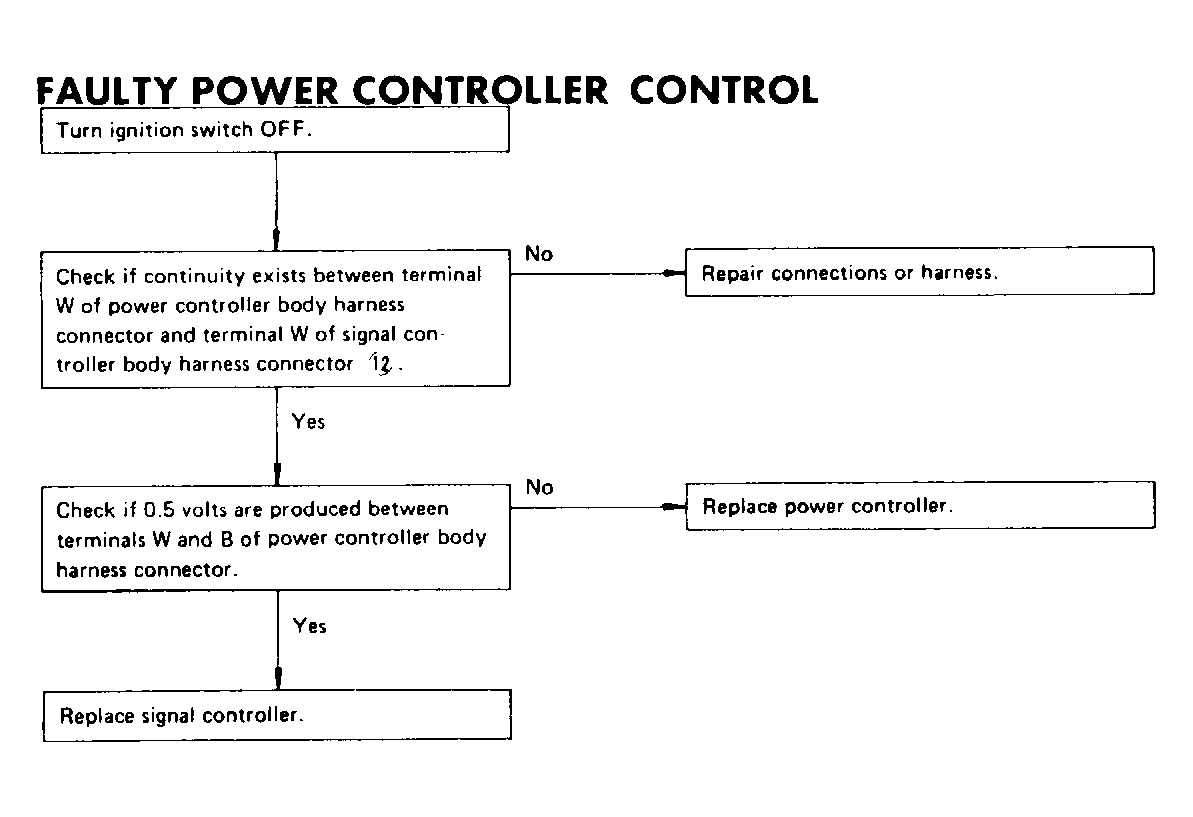

Fig 1: FAULTY POWER CONTROLLER CONTROL
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
