Code 22: Knock Sensor

Fig 1: Schematic - Code 22, Knock Sensor

G91J18381

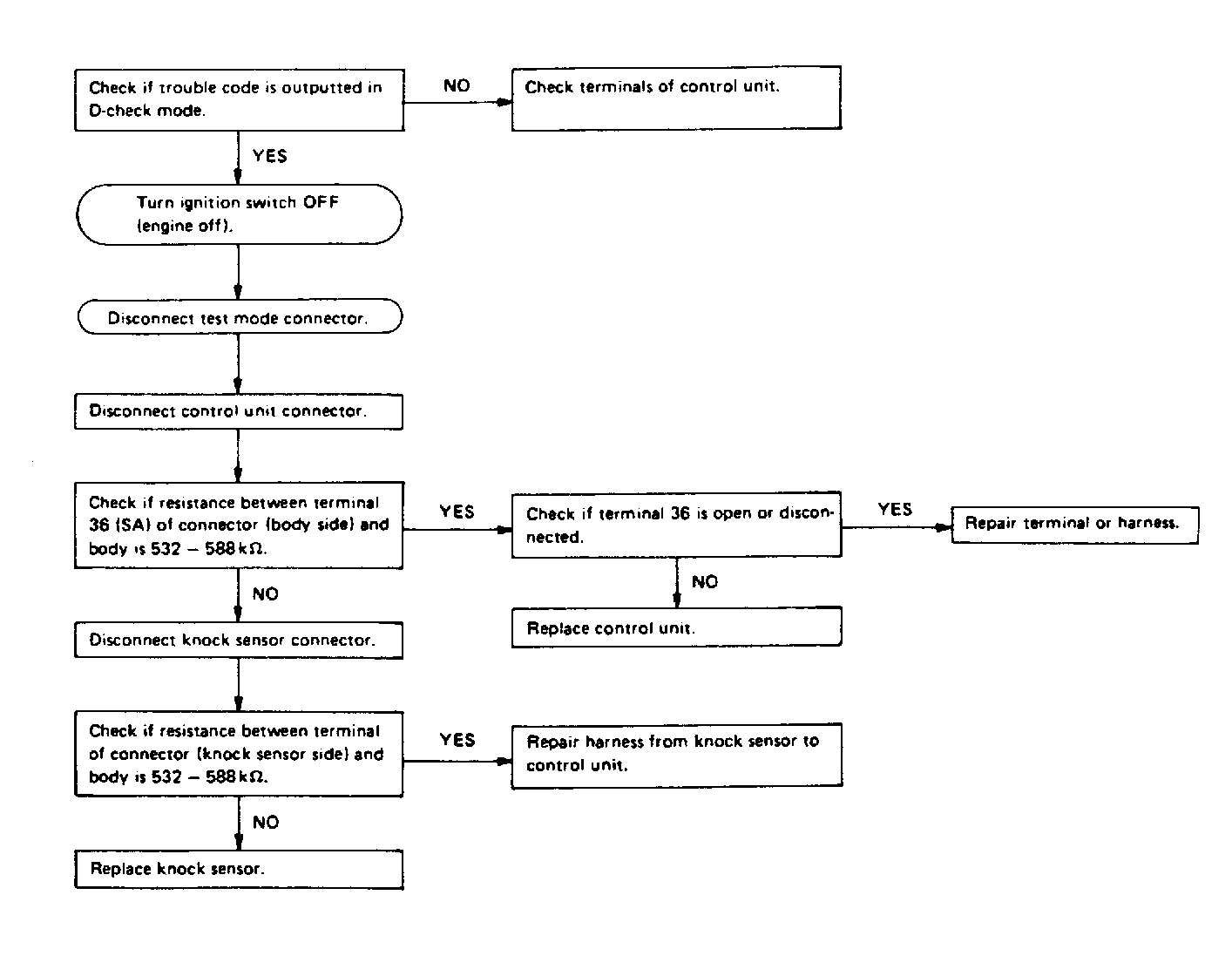

Fig 2: Flow Chart - Code 22, Knock Sensor

G90G21895
