Trouble Code 25, FCV Solenoid Valve
Trouble Code 25, FCV Solenoid Valve

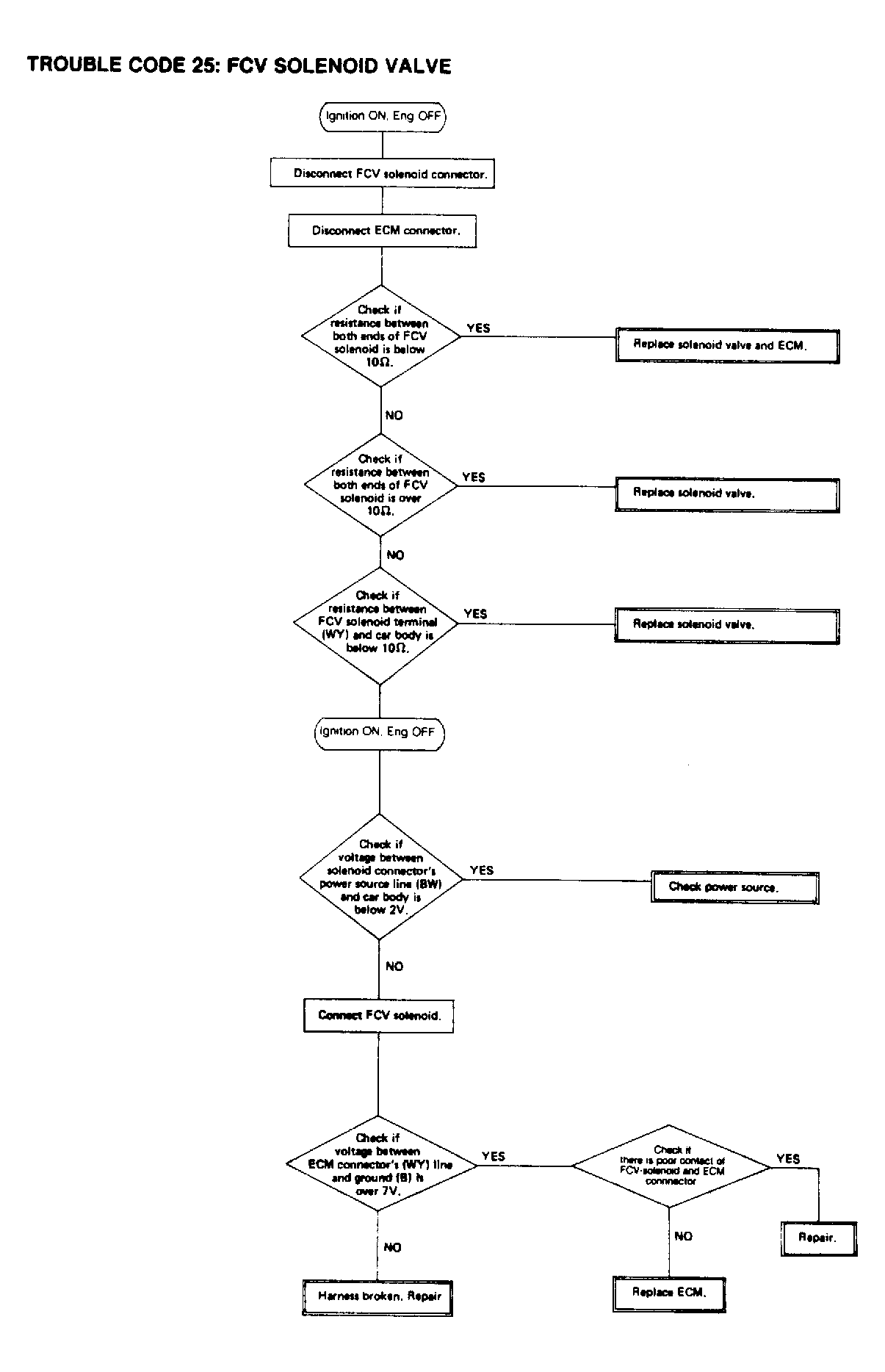

Fig 1: TROUBLE CODE 25, FCV SOLENOID VALVE
