Feedback Carburetor System
>>
Diagnosis & Testing
>>
ECM Inspection
ECM Inspection

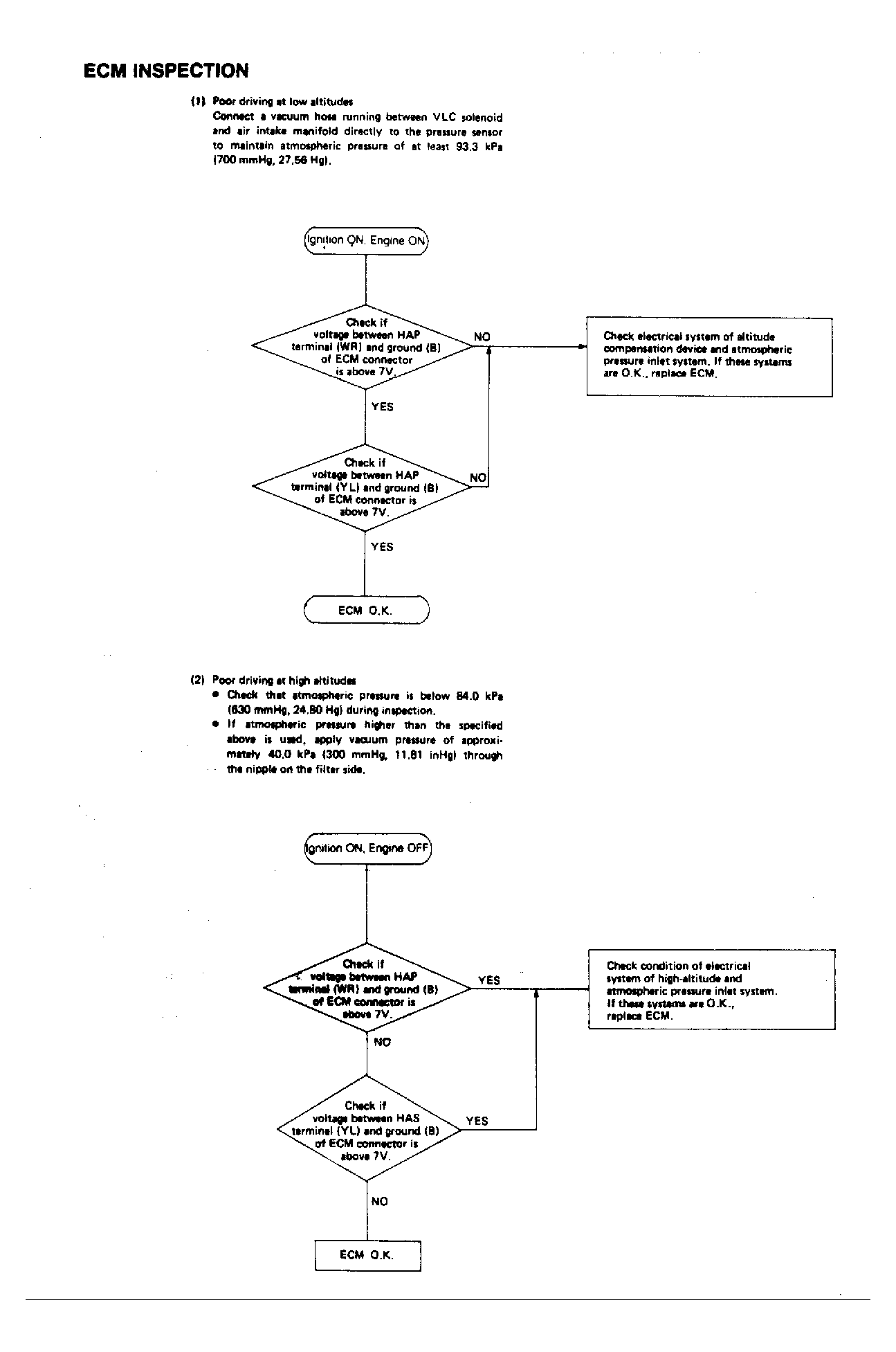

Fig 1: ECM Inspection
