Fuel Pump Circuit & Trouble Code 11, Crank Angle Sensor
Fuel Pump Circuit & Trouble Code 11, Crank Angle Sensor

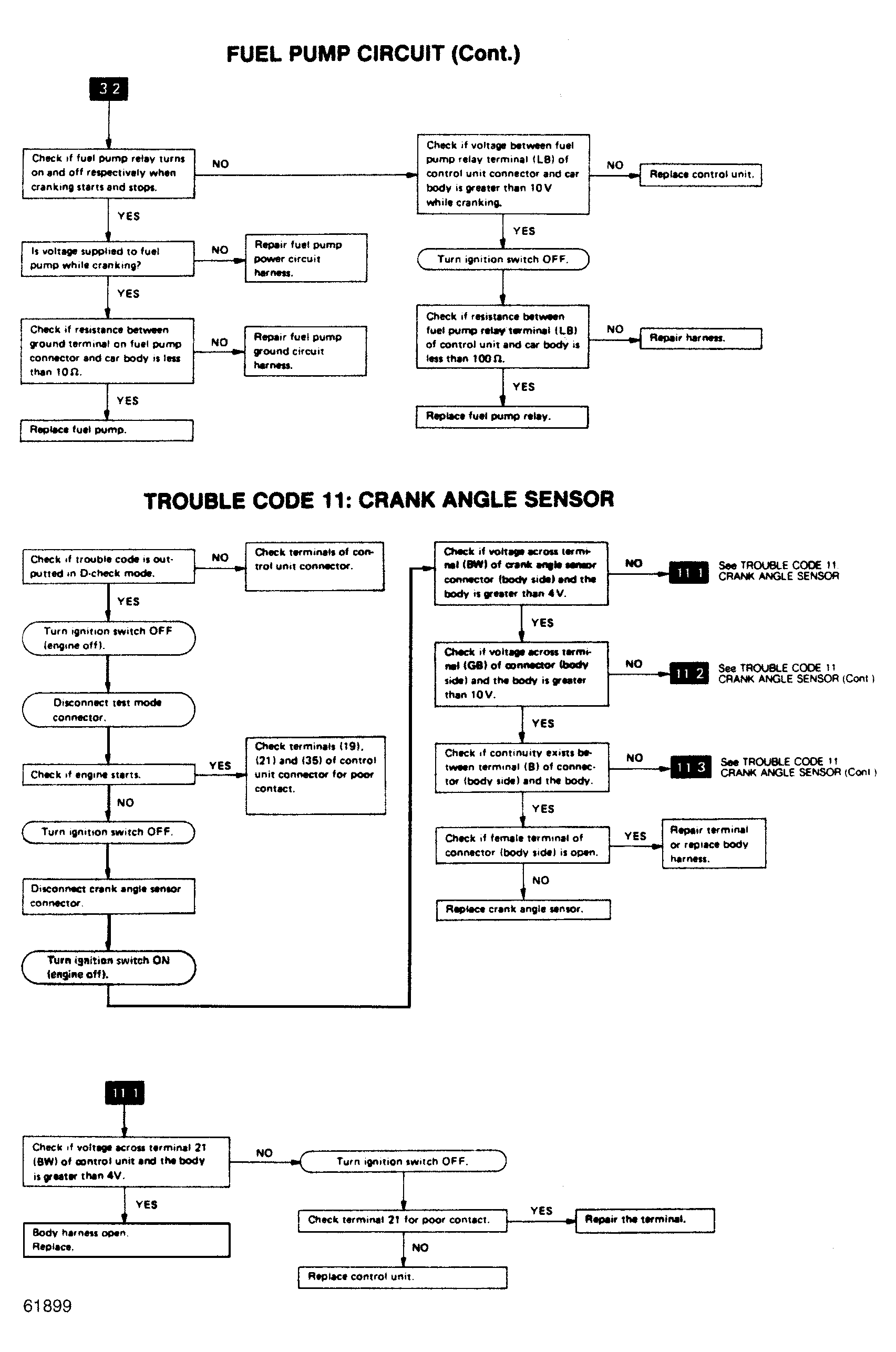

Fig 1: Fuel Pump Circuit (Cont.) & Trouble Code 11, Crank Angle Sensor
