Home >> Subaru >> 1983 >> DL 2D Hatchback >> Repair and Diagnosis >> Engine Performance >> System >> Fuel Injection System - BOSCH AFC >> Wiring Diagrams

Wiring Diagrams

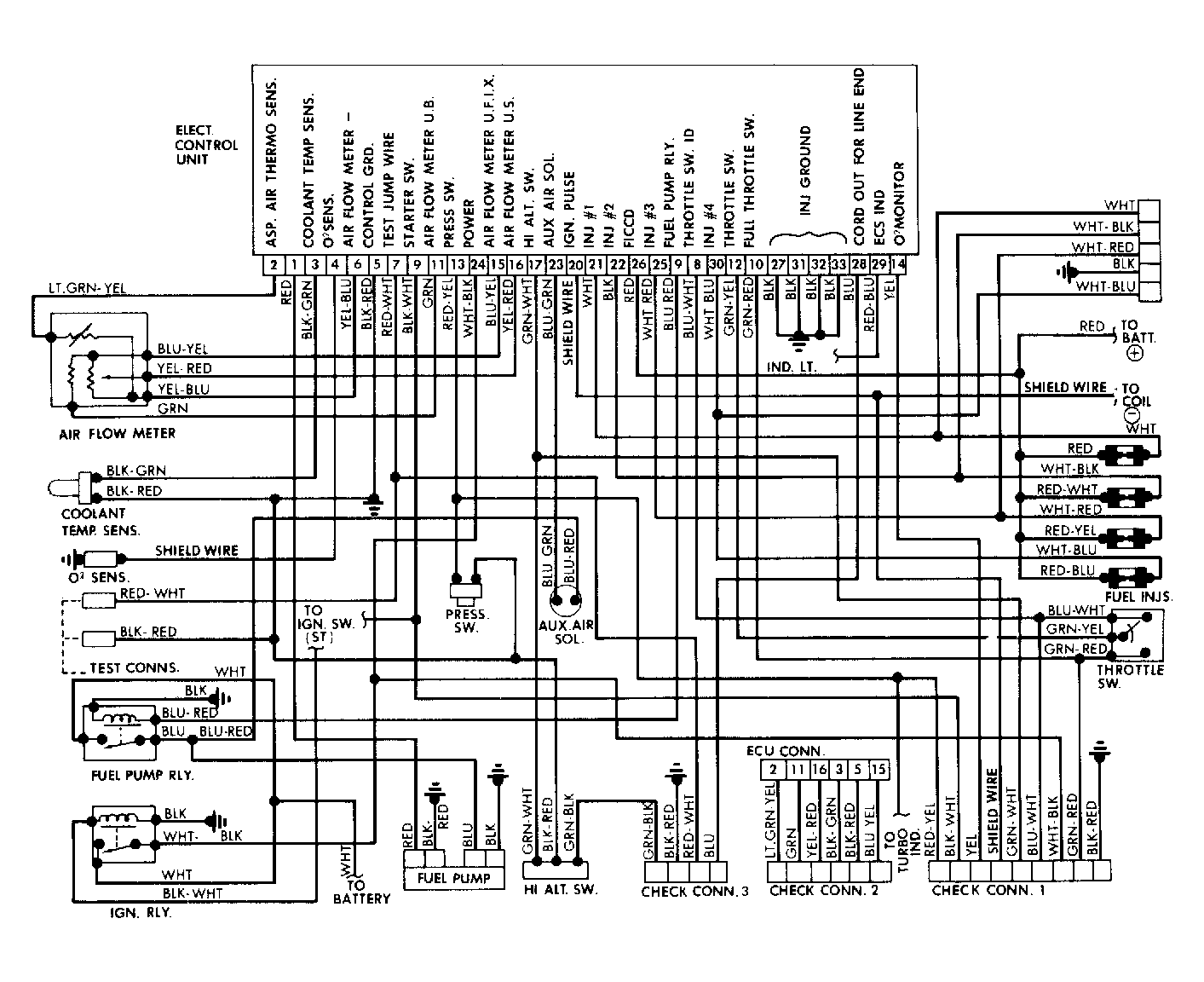

Fig 1: Fuel Injection Wiring Diagram

G34518
