Remove/Install Tank Recess - AR88.60-P-2000SR
MODEL 453.04/05/06/34/35/36/44/45/46
Shown on model 453.04
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove right rear fender liner | Model 453.04/05/06 | AR88.10-P-1400SR |
| Model 453.34/35/36/44/45/46 | AR88.10-P-1400SRA | ||
| 2 | Remove drain hose from tank filling recess (1) | ||
| 3 | Open fuel filler flap (2) | ||
| 4 | Unscrew bolts (3) | ||

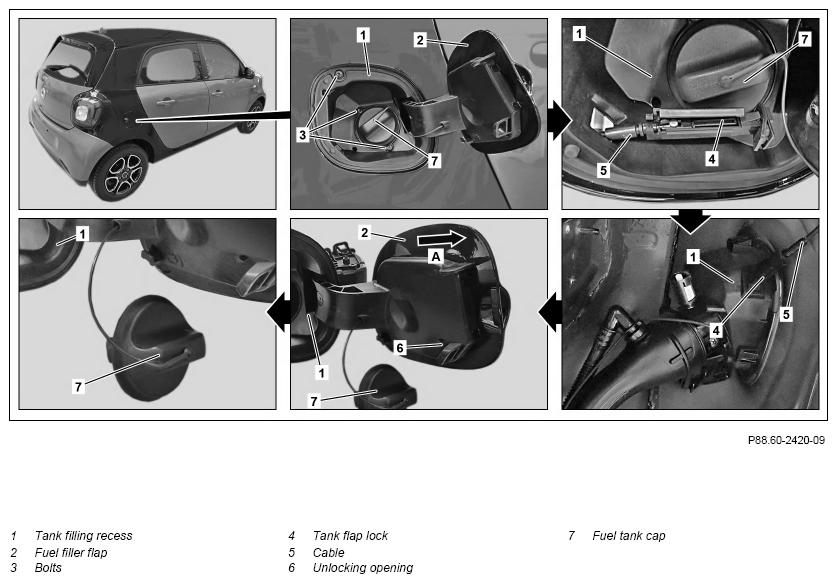

| 5 | Unclip fuel filer flap lock (4) and remove from cable (5) | Figure | |
| 6 | Remove cable (5) downward | ||
| 7 | Unscrew tank cap (7) and hook into tank filling recess (1) | ||
| 8 | Loosen filler necks from tank filling recess (1) | ||
| 9 | Unclip tank filler recess (1) at bottom from rear side wall | Figure | |
| 10 | Close fuel filler flap (2) and remove tank filling recess (1) | ||
| 11 | Unlock fuel filler flap (2) through release opening (6) and remove from hinge lever on tank filling recess (1) in direction of arrow (arrow A) | When replacing tank filling recess (1). | |
| 12 | Remove tank cap (7) from hinge lever on tank filling recess (1) | When replacing tank filling recess (1). | |
| 13 | Install in the reverse order |
