Refrigerant Compressor, Remove/Install - AR83.55-P-5310SR
MODEL 453 with ENGINE 281 with CODE I01 (Automatic air conditioning)
MODEL 453 with ENGINE 281 with CODE I77 (Air conditioning, manual)
| Risk of explosion caused by welding or soldering work on closed air conditioning system. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerant. | Do not perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. | AS83.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Drain air conditioning system, then disconnect air conditioning service unit | AR83.30-P-1760SR | |
| 2 | Lower and position rear drive module | AR01.00-P-3050SR | |

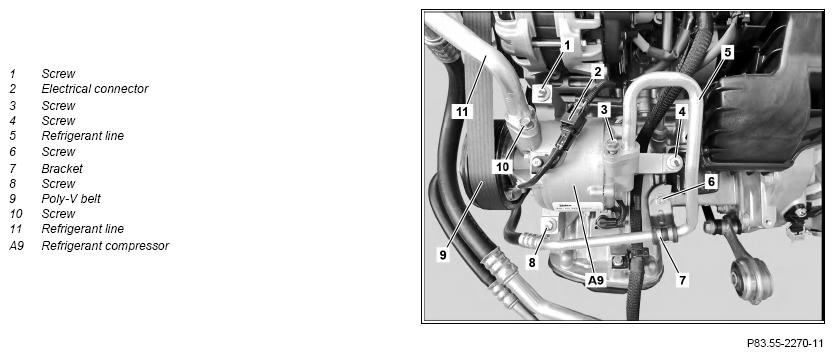

| 3 | Loosen poly-V belt (9) and remove | AR13.22-P-1202SR | |
| 4 | Unscrew screw/bolt (6) and rotate bracket (7) to one side | ||
| 5 | Unscrew screw/bolt (3) and remove refrigerant line (5) from refrigerant compressor (A9) | *BA83.30-P-1008-01G | |
| 6 | Seal opening of refrigerant line (5) and refrigerant compressor (A9) with a stop plug | Figure | |
| 7 | Unscrew screw/bolt (10) and remove refrigerant line (11) from refrigerant compressor (A9) | *BA83.30-P-1009-01G | |
| 8 | Seal opening of refrigerant line (11) and refrigerant compressor (A9) with a stop plug | Figure | |
| 9 | Disconnect electrical connector (2) from refrigerant compressor (A9) | ||
| 10 | Unscrew screws/bolts (1, 4, 8) and remove refrigerant compressor (A9) downwards | *BA83.55-P-1001-01SR | |
| 11 | Install in the reverse order | ||
| 12 |
Connect diagnostic unit and perform break-in of refrigerant compressor (A9) | When installing new refrigerant compressor (A9). |
AD00.00-P-2000-06SR |
AIR CONDITIONING
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA83.30-P-1008-01G | Bolt, low-pressure line to A/C compressor | Nm | 8 |
AIR CONDITIONING
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA83.30-P-1009-01G | Bolt, high-pressure line to A/C compressor | Nm | 8 |
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 281 | |
|---|---|---|---|
| BA83.55-P-1001-01SR | Bolt, refrigerant compressor to engine | Nm | 25 |
