Check Compression Pressure - AR01.00-P-1201SR
ENGINE 281
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Remove | |||
| 1 | Warm up engine to normal operating temperature and then switch off the ignition | ||
| 2 | Remove spark plugs | AR15.12-P-1010SR | |
| Check | |||
| 3 | Actuate the starter and allow the engine to turn for about 3 s | ||

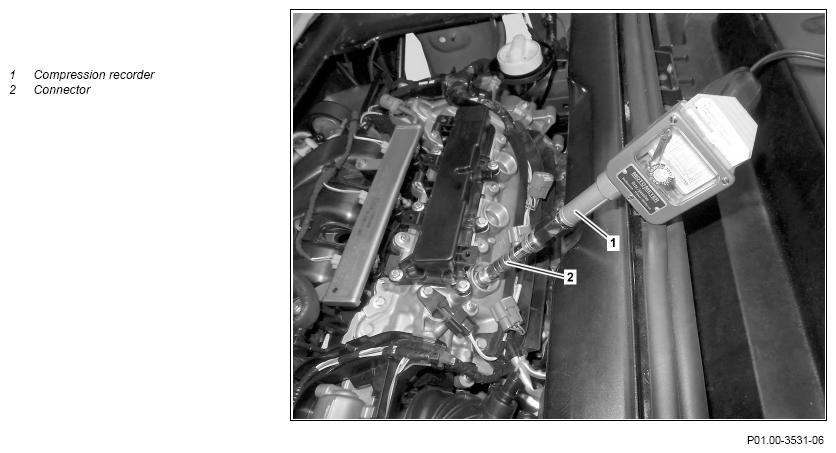

| 4 | Insert compression recorder (1) with appropriate connector (2) into spark plug bore | Fig 1 | |
| 5 | Actuate starter and crank engine until no further pressure rise is monitored on compression recorder (1). | ||
| 6 | Carry out test procedure at remaining cylinders in the same way | ||
| 7 | Compare measurements for the individual cylinders with each other | For deviation of a cylinder to the remaining cylinders: ↓ Check cylinder leakage of the respective cylinder. |
AR01.00-P-1300SR |
| Install | |||
| 8 | Install spark plugs | AR15.12-P-1010SR | |
| 9 |
Read out fault memory; clear if necessary | AD00.00-P-2000-06SR |
