Operating Panel On Transmitter Key Damaged (LI80.35-P-048210)

WARNING: This page is about the Fortwo Electric Drive, 2D Convertible, which is a different variant/trim than selected.

Publication date: 2009-10-14
Reference number: LI80.35-P-048210

OPERATING PANEL ON TRANSMITTER KEY DAMAGED

TECHNICAL SERVICE BULLETIN

Reference Number(s): LI80.35-P-048210 Version 1, Date of Issue: October 14, 2009

SMART:	451.3/4
DESIGN GROUP:	80.35 Radio remote control
REASON FOR CHANGE:	Added an attachment to the Remedy field (Tech TIp TT009). Changed the word operating panel to rubber buttons. Removed part number for 3 button key remote.

Buttons on operating panel of transmitter key broken off or damaged.

Wear and tear on operating panel.

Replace rubber buttons.

Insert a suitable coin at the keyring attachment between the two housing parts and twist gently to press the upper transmitter key housing off the lower transmitter key housing.
Remove transmitter of remote control with operating panel from upper transmitter key housing.
Replace rubber buttons on transmitter of radio remote control.
Install transmitter of radio remote control with rubber buttons in upper transmitter key housing.
Position upper transmitter key housing on lower transmitter key housing and clip into place.
Perform function test of transmitter key.

File	Designation

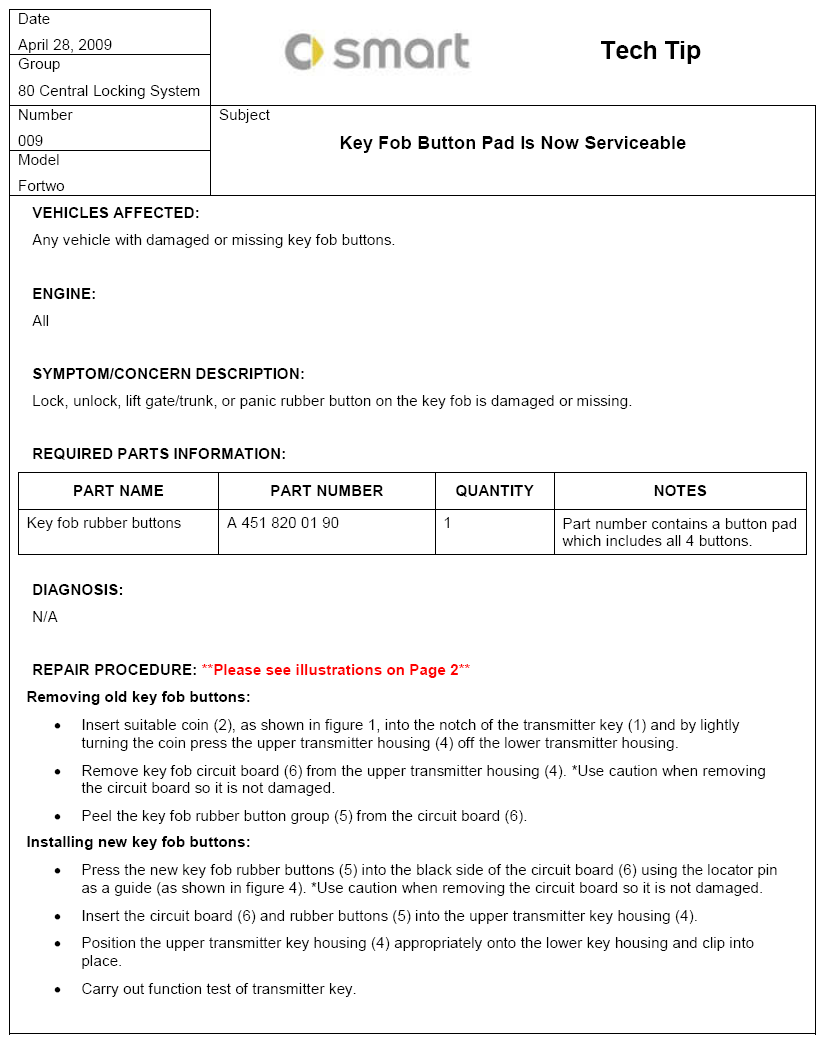

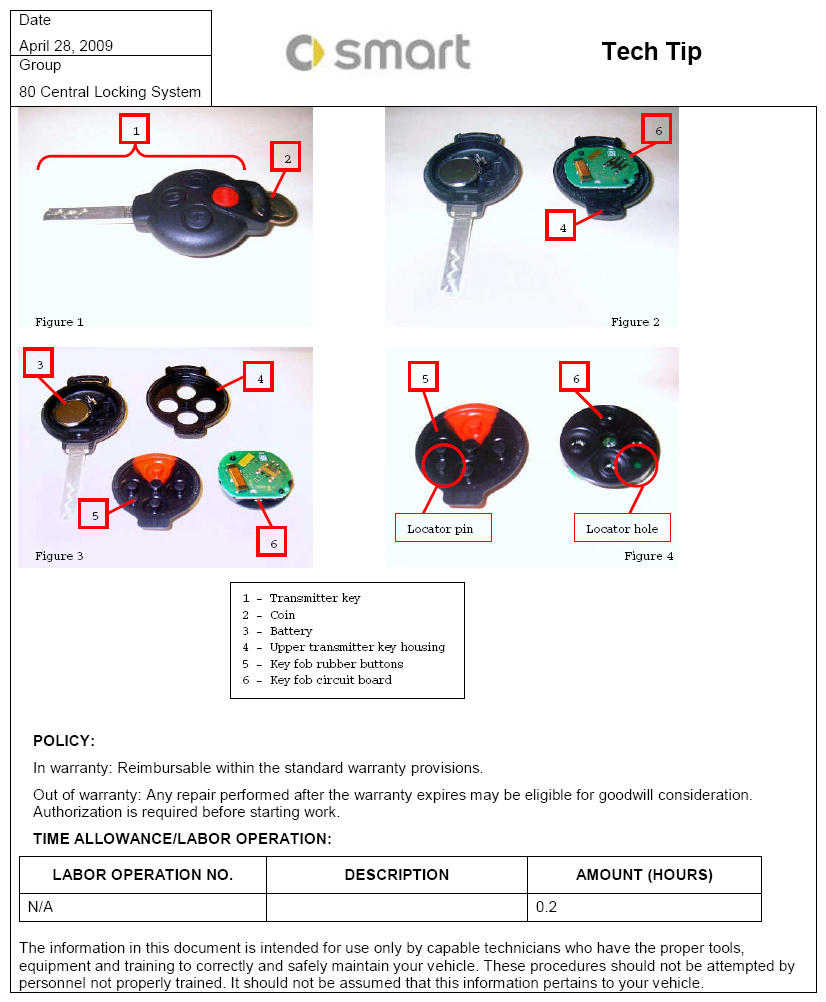

Tech Tip TT009 - Key Fob Button Pad Is Now Serviceable	Tech Tip TT009

Overall vehicle/Safety and locking system/Locks/locking/Remote closing mechanism/Key wear

PARTS DESCRIPTION

Part number	ES1	ES2	Designation	Quantity	Note	EPC	Other make part
A4518200190			Operating panel	1	4 buttons for USA	X

Op. no.	Operation text	Time	Damage code	Note
80-2626	REPLACE TRANSMITTER OF RADIO REMOTE CONTROL	2 AW	58108 D1	The transmitter is not to be replaced. Only replace the operating panel with the part number valid for the vehicle in question!
