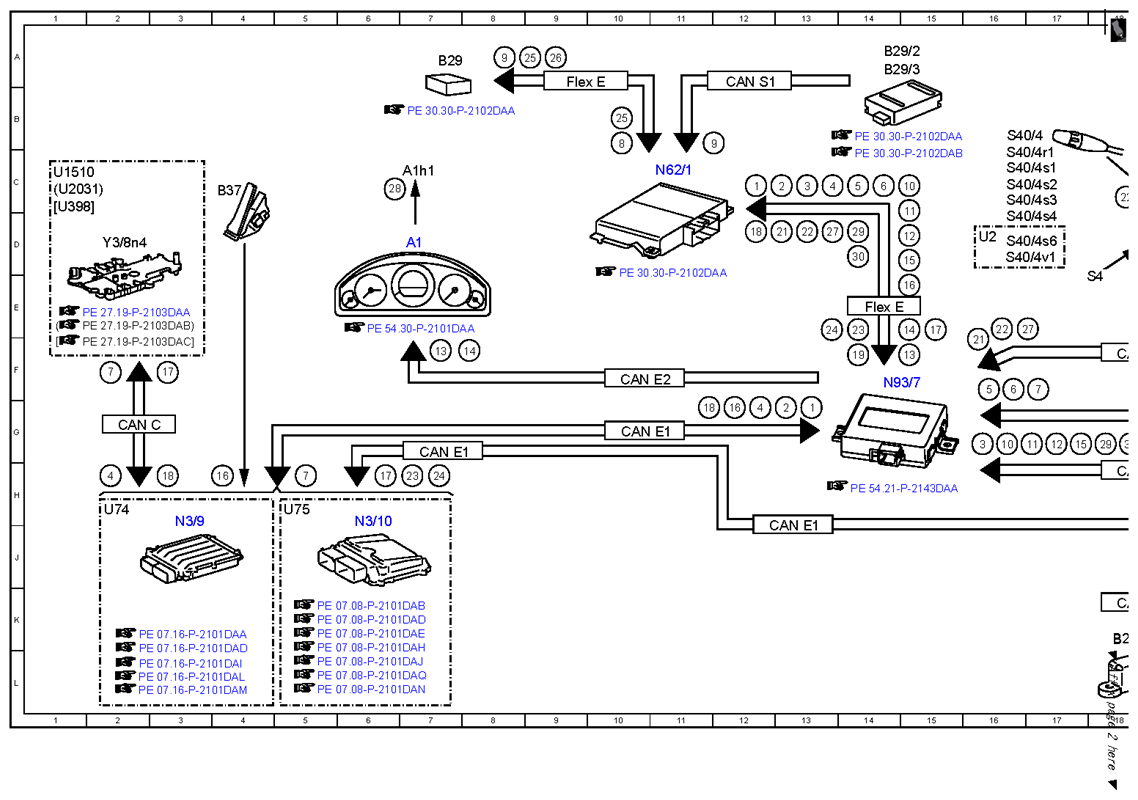

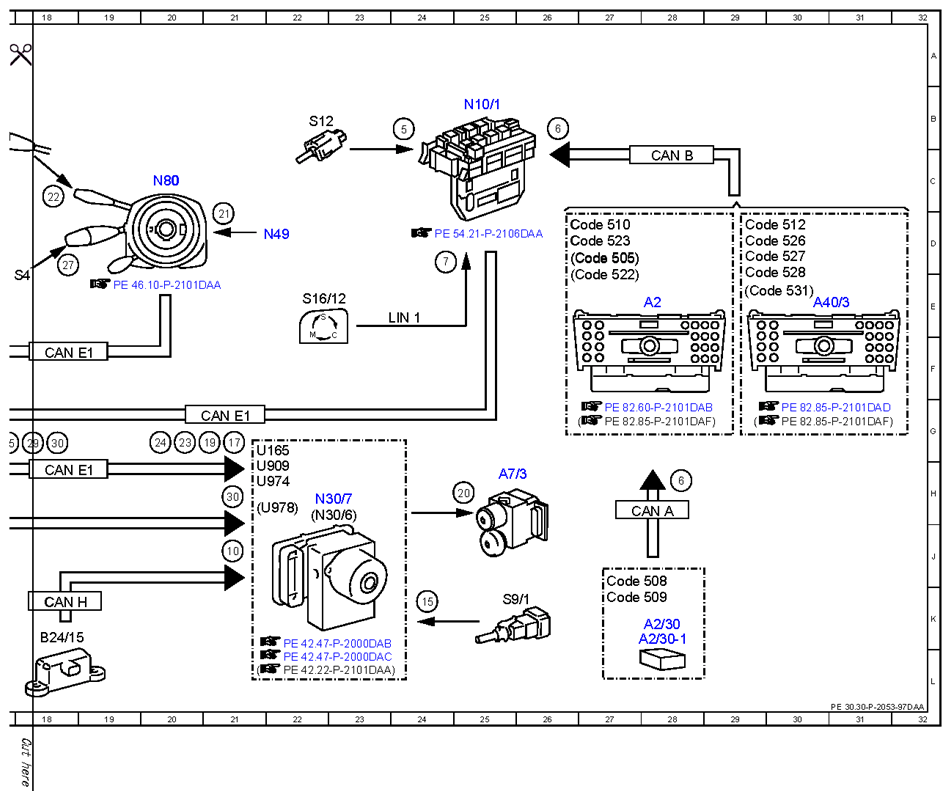

Distronic PLUS electrical function schematic - PE30.30-P-2053-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 with CODE 233 (DISTRONIC PLUS)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 12C |
| 1 | Engine running, signal | 13G |
| 10 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 21J |
| 10 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 16G |
| 10 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 15C |
| 11 | Wheel speed, signal | 17G |
| 11 | Wheel speed, signal | 15D |
| 12 | Wheel rotation direction, signal | 17G |
| 12 | Wheel rotation direction, signal | 15D |
| 13 | Instrument cluster message, request | 15F |
| 13 | Instrument cluster message, request | 7F |
| 14 | Warning tone, request | 15E |
| 14 | Warning tone, request | 8F |
| 15 | Brake light switch, status | 15D |
| 15 | Brake light switch, status | 17G |
| 15 | Brake light switch, status | 24K |
| 16 | Accelerator pedal sensor, signal | 4H |
| 16 | Accelerator pedal sensor, signal | 15E |
| 16 | Accelerator pedal sensor, signal | 12G |
| 17 | Engage targeted gear, request | 6H |
| 17 | Engage targeted gear, request | 3F |
| 17 | Engage targeted gear, request | 15E |
| 17 | Engage targeted gear, request | 21G |
| 18 | Transmission mode, signal | 12D |
| 18 | Transmission mode, signal | 11G |
| 18 | Transmission mode, signal | 3H |
| 19 | Service brake braking torque, request | 14F |
| 19 | Service brake braking torque, request | 21G |
| 2 | Drivetrain operational, signal | 13C |
| 2 | Drivetrain operational, signal | 13G |
| 20 | Service brake braking torque, actuation | 25H |
| 21 | Steering angle, signal | 21D |
| 21 | Steering angle, signal | 13D |
| 21 | Steering angle, signal | 16F |
| 22 | CRUISE CONTROL lever, signal | 13D |
| 22 | CRUISE CONTROL lever, signal | 18C |
| 22 | CRUISE CONTROL lever, signal | 16E |
| 23 | Engine torque, increase request | 14E |
| 23 | Engine torque, increase request | 20G |
| 23 | Engine torque, increase request | 7H |
| 24 | Engine torque, reduce request | 13E |
| 24 | Engine torque, reduce request | 20G |
| 24 | Engine torque, reduce request | 7H |
| 25 | Diagnosis, communication | 9A |
| 25 | Diagnosis, communication | 10B |
| 26 | Long-range radar, request | 9A |
| 27 | Combination switch, status | 13D |
| 27 | Combination switch, status | 16E |
| 27 | Combination switch, status | 18D |
| 28 | Warning buzzer, actuation | 6C |
| 29 | Braking torque, signal | 14D |
| 29 | Braking torque, signal | 18G |
| 3 | ESP®, status | 13C |
| 3 | ESP®, status | 16G |
| 30 | Available torque, signal | 21H |
| 30 | Available torque, signal | 14D |
| 30 | Available torque, signal | 18G |
| 4 | Gear range, status | 13C |
| 4 | Gear range, status | 12G |
| 4 | Gear range, status | 2H |
| 5 | Parking brake indicator switch, status | 14C |
| 5 | Parking brake indicator switch, status | 16F |
| 5 | Parking brake indicator switch, status | 24B |
| 6 | GPS, signal | 16F |
| 6 | GPS, signal | 14C |
| 6 | GPS, signal | 26B |
| 6 | GPS, signal | 28H |
| 7 | Automatic transmission mode button, status | 17F |
| 7 | Automatic transmission mode button, status | 5H |
| 7 | Automatic transmission mode button, status | 24D |
| 7 | Automatic transmission mode button, status | 2F |
| 8 | Far range radar sensor, signal | 10B |
| 9 | Close range radar sensors, signal | 11B |
| 9 | Close range radar sensors, signal | 8A |
| A1 | Instrument cluster | 7D |
| A1h1 | Warning buzzer | 7C |
| A2 | Radio | 28E |
| A2/30 | Navigation module | 28K |
| A2/30-1 | Cradle for navigation module | 28K |
| A40/3 | COMAND control unit | 30E |
| A7/3 | Traction system hydraulic unit | 25H |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 18K |
| B29 | Front long-range radar sensor | 7A |
| B29/2 | DISTRONIC sensor (DTR) / left front bumper | 14A |
| B29/3 | DISTRONIC sensor (DTR) / right front bumper | 14A |
| B37 | Accelerator pedal sensor | 4C |
| CAN A | Telematics CAN | 28H |
| CAN B | Interior CAN | 28C |
| CAN C | Drive train CAN | 2G |
| CAN E1 | Chassis CAN 1 | 10G |
| CAN E1 | Chassis CAN 1 | 18F |
| CAN E1 | Chassis CAN 1 | 7G |
| CAN E1 | Chassis CAN 1 | 13J |
| CAN E1 | Chassis CAN 1 | 21G |
| CAN E1 | Chassis CAN 1 | 18H |
| CAN E2 | Chassis CAN 2 | 10F |
| CAN H | Vehicle dynamics CAN | 18K |
| CAN S1 | Radar CAN 1 | 12A |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 26D |
| Code 508 | Navigation module preinstallation | 27J |
| Code 509 | Navigation module | 27K |
| Code 510 | Audio 20 with CD changer | 26D |
| Code 512 | COMAND APS with DVD changer | 29D |
| Code 522 | Audio 20 radio | 26E |
| Code 523 | Audio 20 radio | 26D |
| Code 526 | COMAND with single DVD drive (without navigation) | 29D |
| Code 527 | COMAND APS (with navigation) | 29D |
| Code 528 | COMAND with DVD changer | 29E |
| Code 531 | COMAND APS | 29E |
| Flex E | Chassis FlexRay | 14E |
| Flex E | Chassis FlexRay | 9A |
| LIN 1 | Instrument panel LIN | 24E |
| N10/1 | Front SAM control unit with fuse and relay module | 25B |
| N3/10 | ME-SFI [ME] control unit | 6J |
| N3/9 | CDI control unit | 3J |
| N30/6 | Regenerative braking system control unit | 22H |
| N30/7 | Premium Electronic Stability Program control unit | 22H |
| N49 | Steering angle sensor | 21D |
| N62/1 | Radar sensors control unit | 11C |
| N80 | Steering column module control unit | 20C |
| N93/7 | Chassis gateway control unit | 14F |
| S12 | Parking brake indicator switch | 22B |
| S16/12 | Automatic transmission mode button | 22E |
| S4 | Combination switch | 18E |
| S40/4 | Cruise control lever | 16B |
| S40/4r1 | DISTRONIC control | 16C |
| S40/4s1 | Resume from memory switch | 16C |
| S40/4s2 | Decelerate and set switch | 16C |
| S40/4s3 | Accelerate and set switch | 16C |
| S40/4s4 | OFF switch | 16D |
| S40/4s6 | SPEEDTRONIC switch | 16D |
| S40/4v1 | SPEEDTRONIC light emitting diode | 16D |
| S9/1 | Stop lamp switch | 25K |
| U1510 | Valid for transmission 722.9 | 1C |
| U165 | Valid for AMG | 21G |
| U2 | Valid for all except USA | 16D |
| U2031 | Valid for transmission 724 | 1C |
| U398 | Valid for transmission 725 (NAG3) | 1C |
| U74 | Valid for diesel engines | 2H |
| U75 | Valid for gasoline engines | 5H |
| U909 | Valid for DISTRONIC PLUS | 21H |
| U974 | Not valid for full hybrid drive | 21H |
| U978 | Valid for full hybrid drive | 21H |
| Y3/8n4 | Fully integrated transmission control unit | 2D |
