Front passenger airbag, component description - GF91.60-P-4038MCU

MODEL 451.3 /4

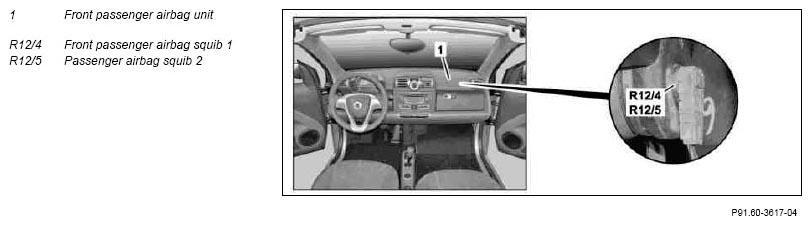

Fig 1: Identifying Front Passenger Airbag Unit, Front Passenger Airbag Ignition Squib 1 And 2
G07077546Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The airbag unit is located in the dashboard on the passenger side.

Task

The front passenger is protected from injury in the event of a frontal impact by the airbag unit.

IMPORTANT The two-stage airbag unit is deployed by means of squib ignition by the restraint systems control unit (N2/7).
