Remove/install front CBS - AR88.00-P-1010MCC

MODEL 451.3/ 4

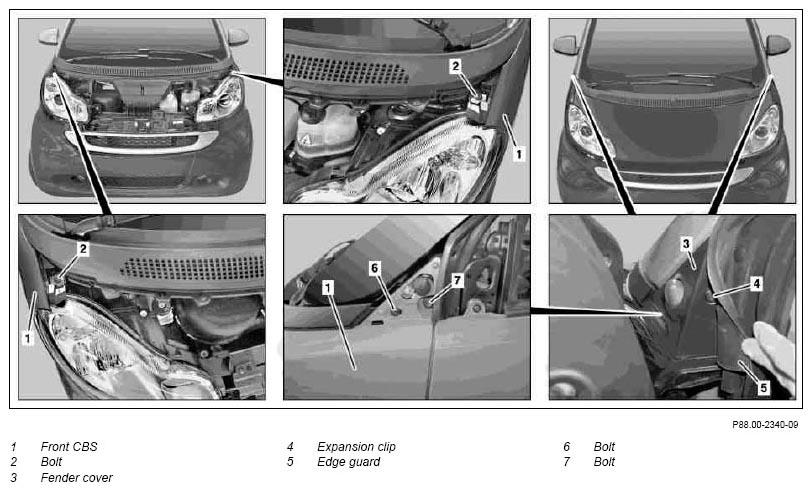

Fig 1: Identifying Front CBS Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

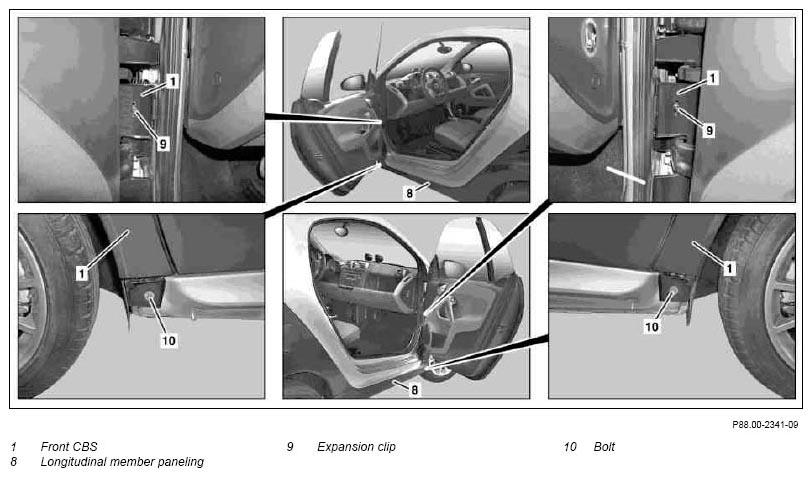

Fig 2: Identifying Front CBS Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on vehicle with code (V07) Front fog lamps (FFO)

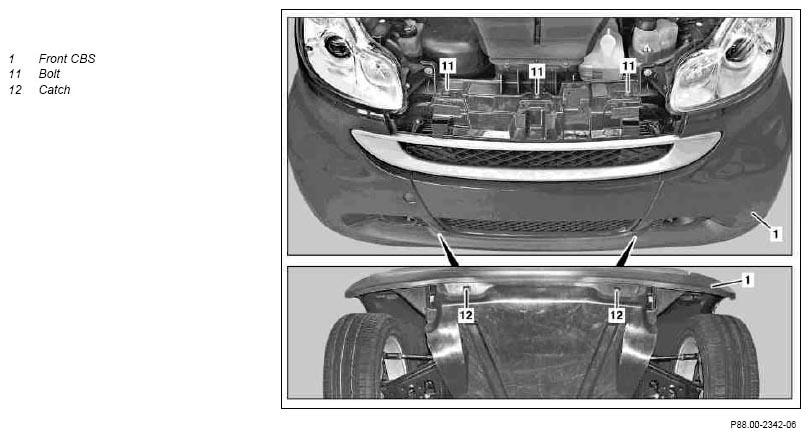

Fig 3: Identifying Front CBS, Bolt And Catch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove antenna rod
2	Remove additional turn signal lamps		AR82.25-P-4726MCC
3	Open left and right door, press edge guard (5) to side in area of left and right fender covering (3) on both sides and remove expansion clip (4).
4	Slightly slide left and right fender covering (3) upward and remove.
5	Unscrew bolts (6, 7)	Installation:  Check whether guide sleeve on bolt (7) is seated correctly.
6	Unscrew bolts (2) from front CBS (1).
7	Remove longitudinal member paneling (8).		AR88.80-P-6000MCC
8	Remove expansion clip (9) in area of left and right door hinge.
9	Unscrew bolts (10) located behind left and right longitudinal member paneling (8) from front CBS (1).
10	Unscrew bolts (11) from front CBS (1).
11	Loosen catches (12) on CBS front end (1) and remove CBS front end (1) with aid of helper.	Lay front CBS (1) down on suitable subsurface.
12	Install in the reverse order
