Electrically adjustable outside mirrors, function - GF88.79-P-0005MCC
MODEL 451.3/4 except CODE (V21) Electrically adjustable and heated outside mirrors (FFO)
General information

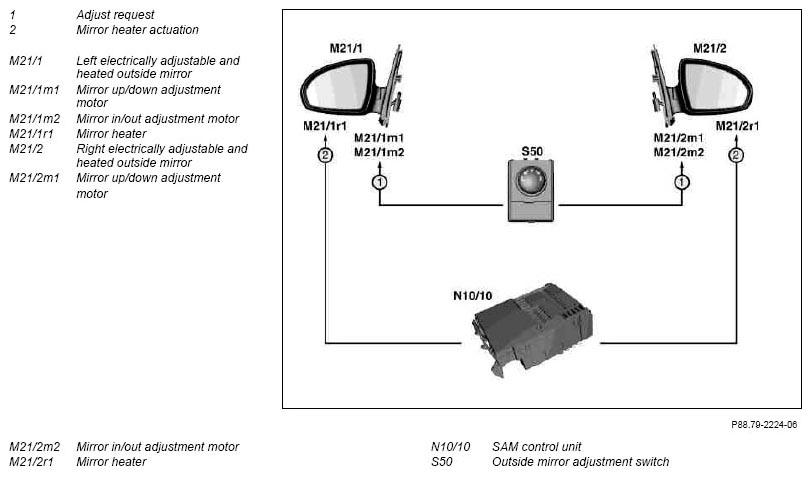

The left and right outside mirrors can be adjusted electrically using the outside mirror adjustment switch. The adjustments are performed by the mirror adjustment motors. The outside mirror adjustment switch is actuated directly. Moreover, the outside mirrors are heated.
Function requirements:
- Circuit 15 ON
Functions
- Mirror lens adjustment
- Heating outside mirror
Mirror lens adjustment
The outside mirror to be adjusted is preselected by turning the outside mirror adjustment switch.
The corresponding mirror adjustment motor and the mirror lens are adjusted horizontally by actuating the outside mirror adjustment switch forward and backward.
The corresponding mirror adjustment motor and the mirror lens are adjusted vertically by actuating the outside mirror adjustment switch to left or right.
It is not possible to adjust the outside mirror when the outside mirror adjustment switch is set to "0".
Heating outside mirror
The SAM control unit supplies power to the mirror heater when circuit 15 is On.
| Electrically adjustable outside mirrors, location of components | GF88.79-P-0005-01MCC | ||
| Wiring diagram of outside mirrors | * not for USA | PE88.79-P-2000MCC | |
| Model 451.3## /4## ## up to 013644 | |||
| * not for USA | PE88.79-P-2000MCD | ||
| Model 451.3## /4## ## as of 013645 | |||
| * for USA only | PE88.79-P-2000MCU | ||
| SAM control unit, component description | N10/10 | GF54.21-P-4157MCC | |
| * not for USA | |||
| * for USA only | GF54.21-P-4157MCU | ||
| Outside mirror adjustment switch, component description | S50 | GF88.79-P-4110MCC |
