Remove/install bulkhead - AR61.25-P-6600MCU
WARNING: This page is about a different variant/trim than selected.
MODEL 451.4
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle with vehicle lift and remove rear underfloor paneling | Rechargeable drill/screwdriver http://gotis.aftersales.mercedes-benz.com |
|

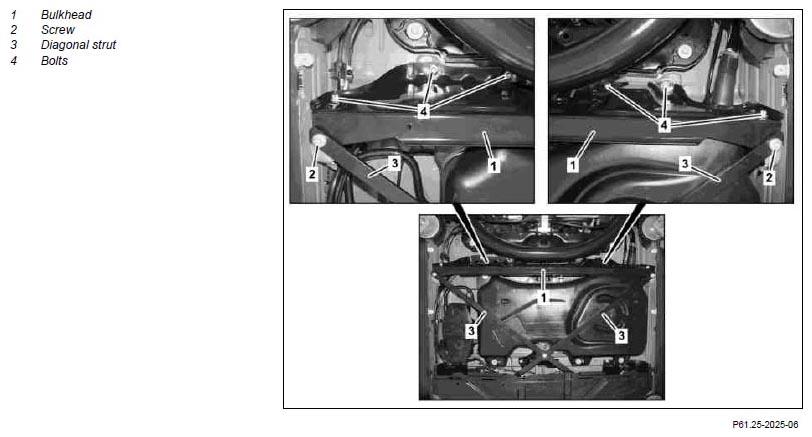

| 2 | Remove bolts (2) from diagonal struts (3). | *BA61.25-P-1002-01B | |
| 3 | Remove bolts (4) from bulkhead (1) | *BA61.25-P-1001-01A | |
| 4 | Pull right diagonal strut (3) downward and unhook bulk head (1) from right mount on underbody | ||
| 5 | Unhook bulk head (1) from left mount on underbody and remove | ||
| 6 | Install in the reverse order |
BULKHEAD TO UNDERBODY
| Number | Designation | Model 451.4 | |
|---|---|---|---|
| BA61.25-P-1001-01A | Bolt, bulkhead to underbody | Nm | 26 |
UNDERBODY FRAME
| Number | Designation | Model 451.4 except 451.491 | |
|---|---|---|---|
| BA61.25-P-1002-01B | Bolt, diagonal strut to underbody | Nm | 65 |
