Refrigerant pressure sensor, component description - GF83.40-P-2193MCC
WARNING: This page is about a different variant/trim than selected.
MODEL 451.3/4 with CODE (I01) Air conditioning Plus
Location

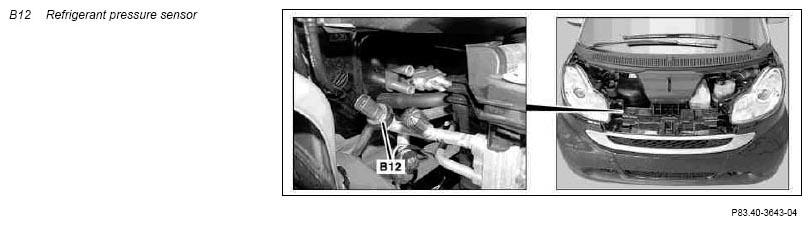

The refrigerant pressure sensor is located at the left behind the condenser on the pressure line of the refrigerant circuit.
Task
The refrigerant pressure sensor is used for measuring the refrigerant pressure.
The value determined by the refrigerant pressure sensor is directly read in by the heater/air conditioning operating unit (N23).
