Parts Location [05/2014 - ]: Illustration

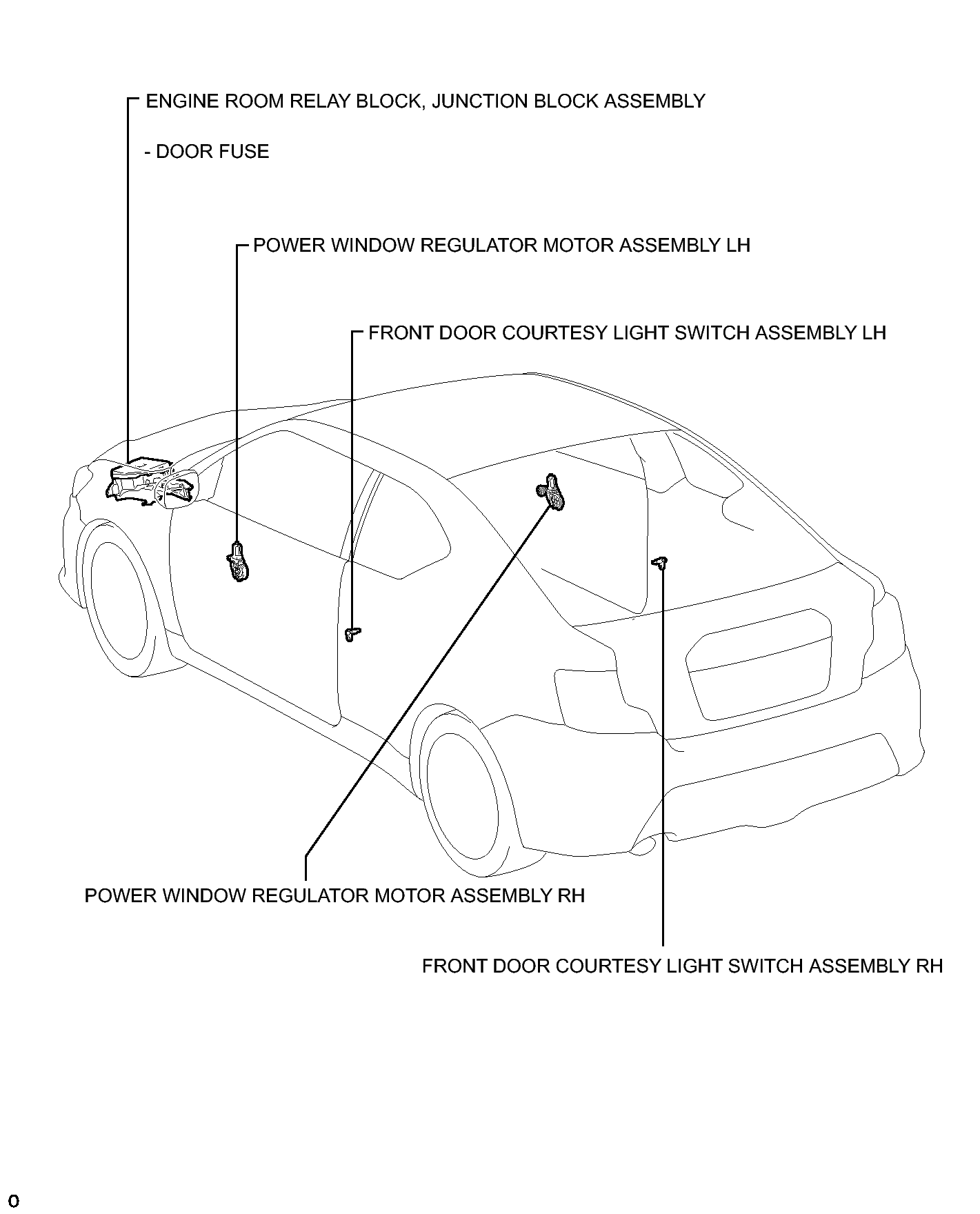

Fig 1: Identifying Power Window Control System Components Location (1 Of 2)
GTY421371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

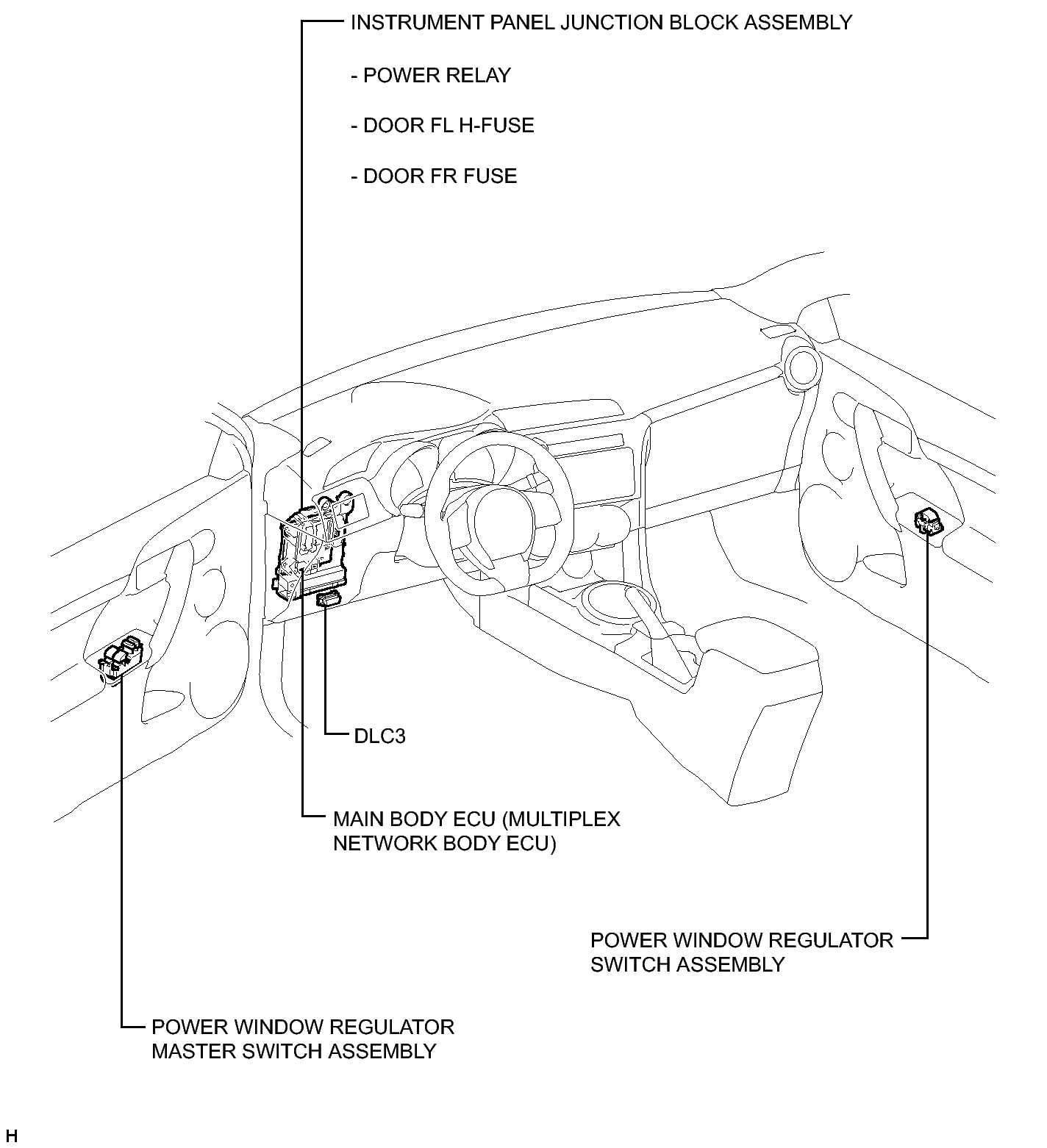

Fig 1: Identifying Power Window Control System Components Location (2 Of 2)
GTY423007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
