Components [06/2015 - ]: Illustration

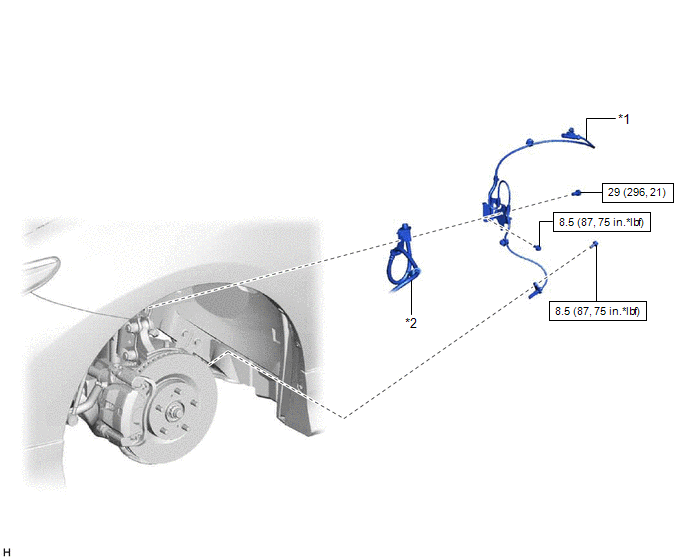

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
GTY485723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT SPEED SENSOR *2 FRONT FLEXIBLE HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -
