Inspection [07/2015 - ]: Procedure
- INSPECT OCCUPANT DETECTION SENSOR

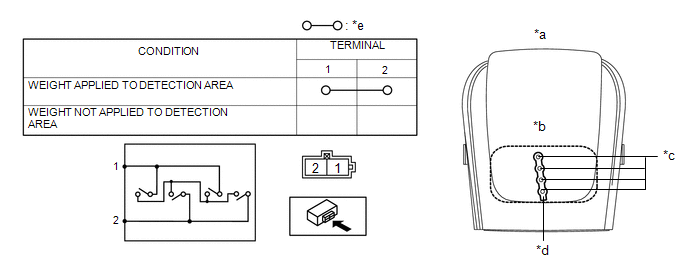

- Verify that the continuity between the occupancy sensor terminals is as indicated in the table.
*a Passenger-side Front Seat *b Detection Area *c Sensor *d Occupancy Sensor *e Continuity - - - If not as indicated in the table, replace the passenger-side front seat cushion trim.
Refer to PROCEDURE - Step 1
- If not as indicated in the table, replace the passenger-side front seat cushion trim.
- Verify that the continuity between the occupancy sensor terminals is as indicated in the table.
