Driver-Side Door Glass Cannot Be Operated Manually Or Automatically [07/2015 - ]: Wiring Diagram

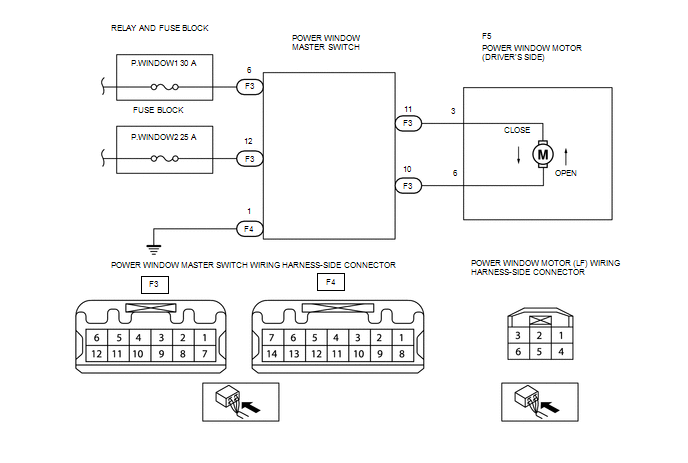

Fig 1: Power Window Wiring Diagram With Connector End Views
GTY492142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
