Components Location [05/2014 - ]: Illustration

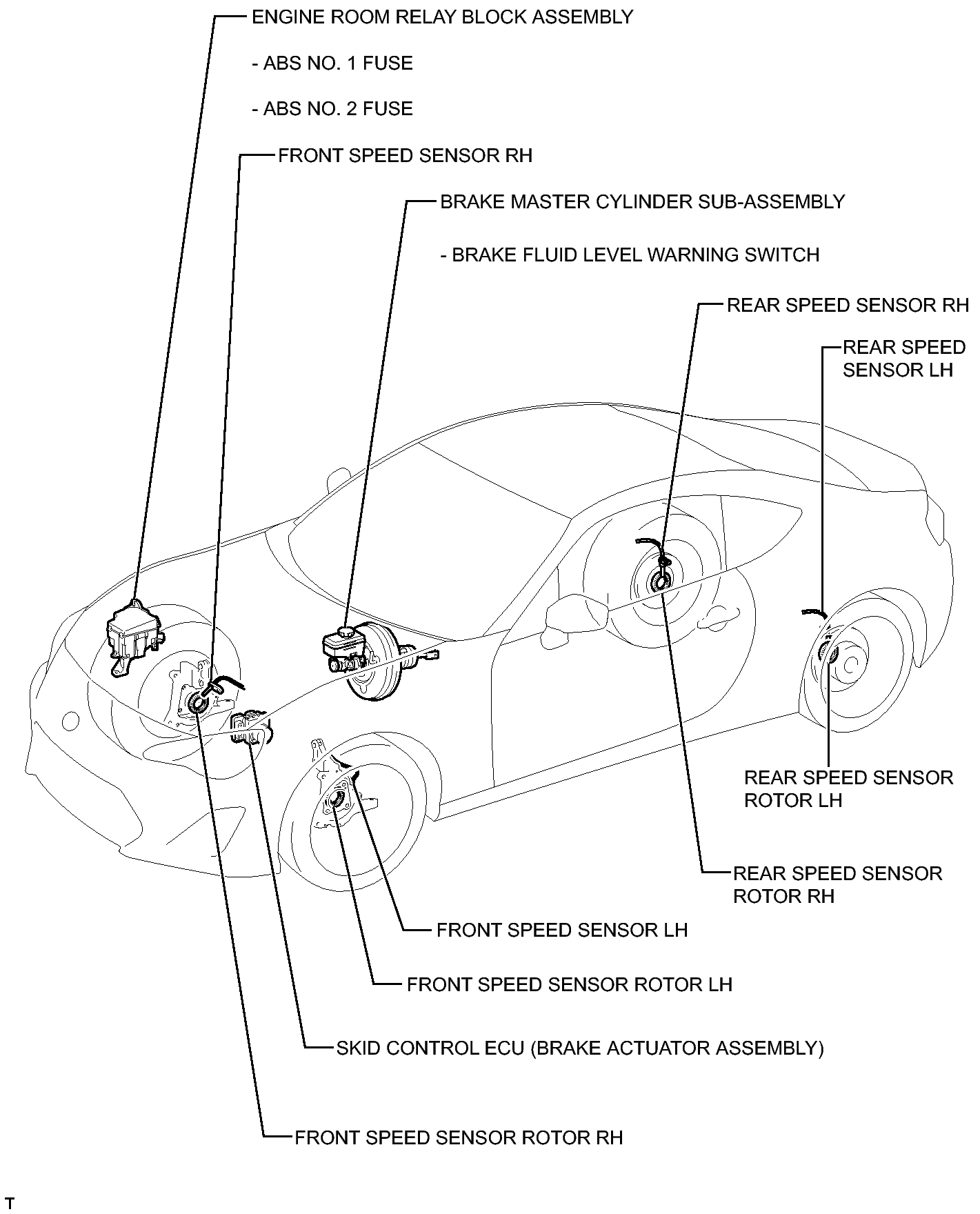

Fig 1: Identifying Vehicle Stability Control System Replacement Components (1 Of 2)
GTY386404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

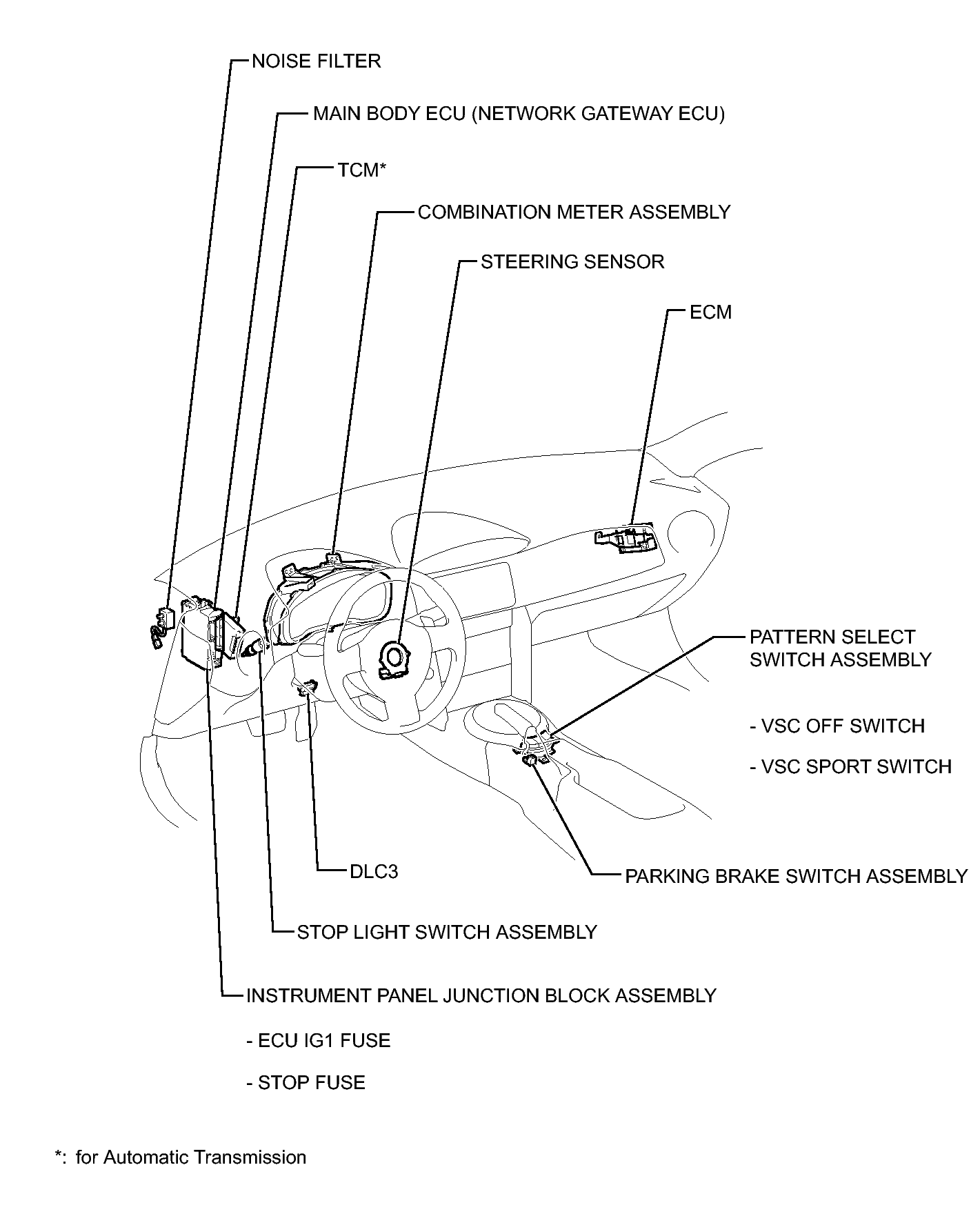

Fig 1: Identifying Vehicle Stability Control System Replacement Components (2 Of 2)
GTY387335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
