Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [01/2014 - ]: Wiring Diagram

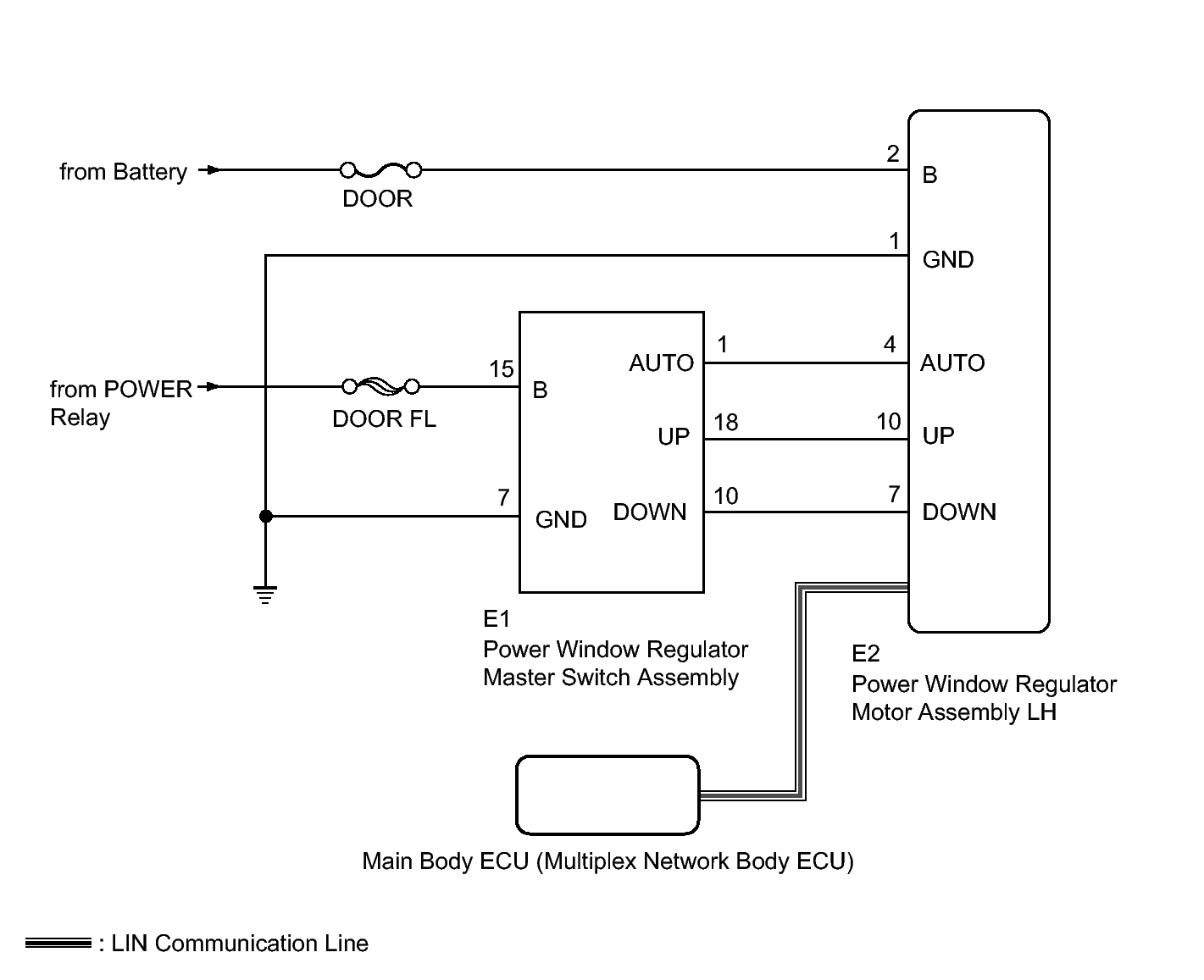

Fig 1: Power Window Regulator Motor Assembly LH Wiring Diagram
GTY421836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
