Parts Location [07/2013 - 12/2013]: Illustration

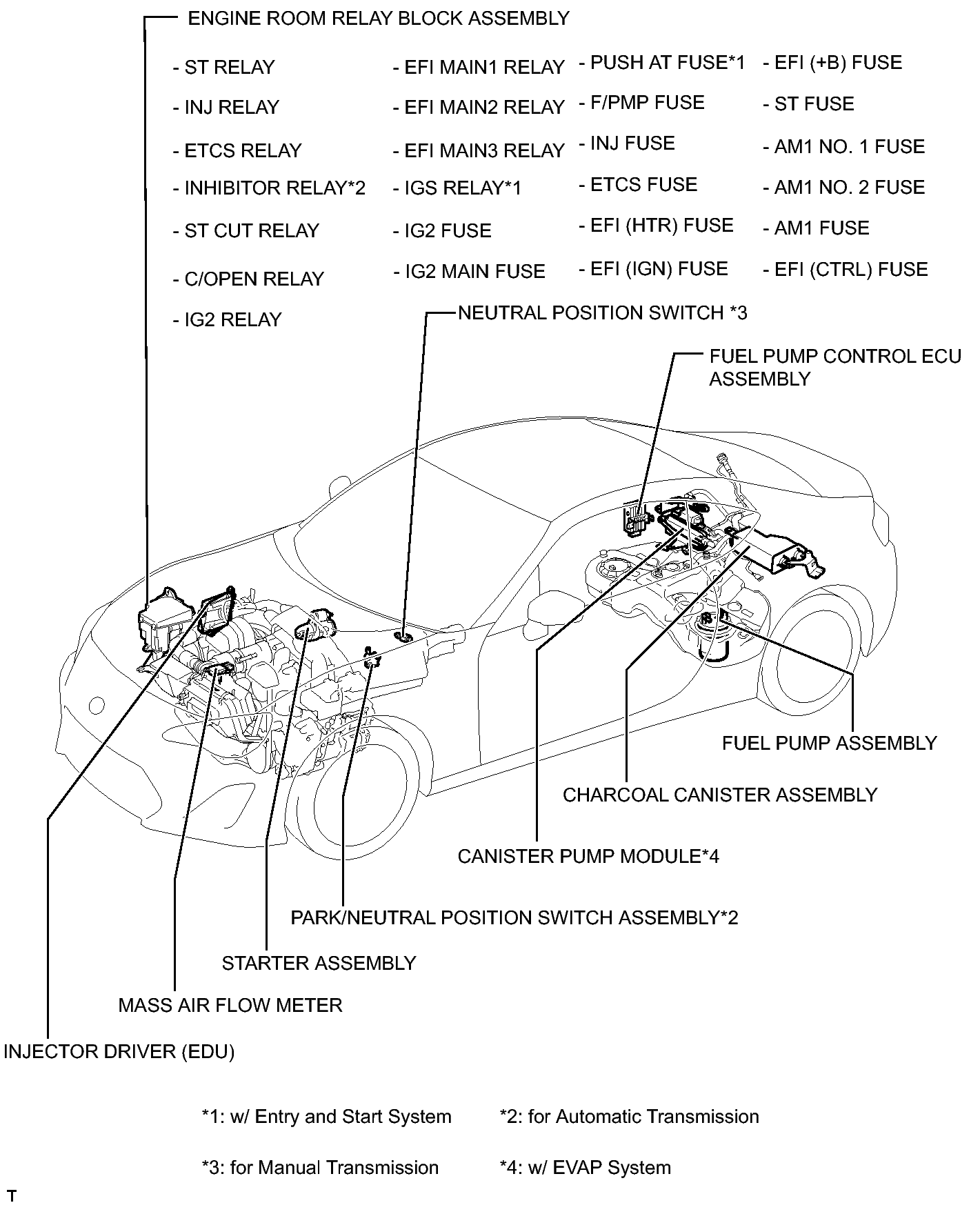

Fig 1: Identifying Engine Control System Components Location (1 Of 4)
GTY420771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

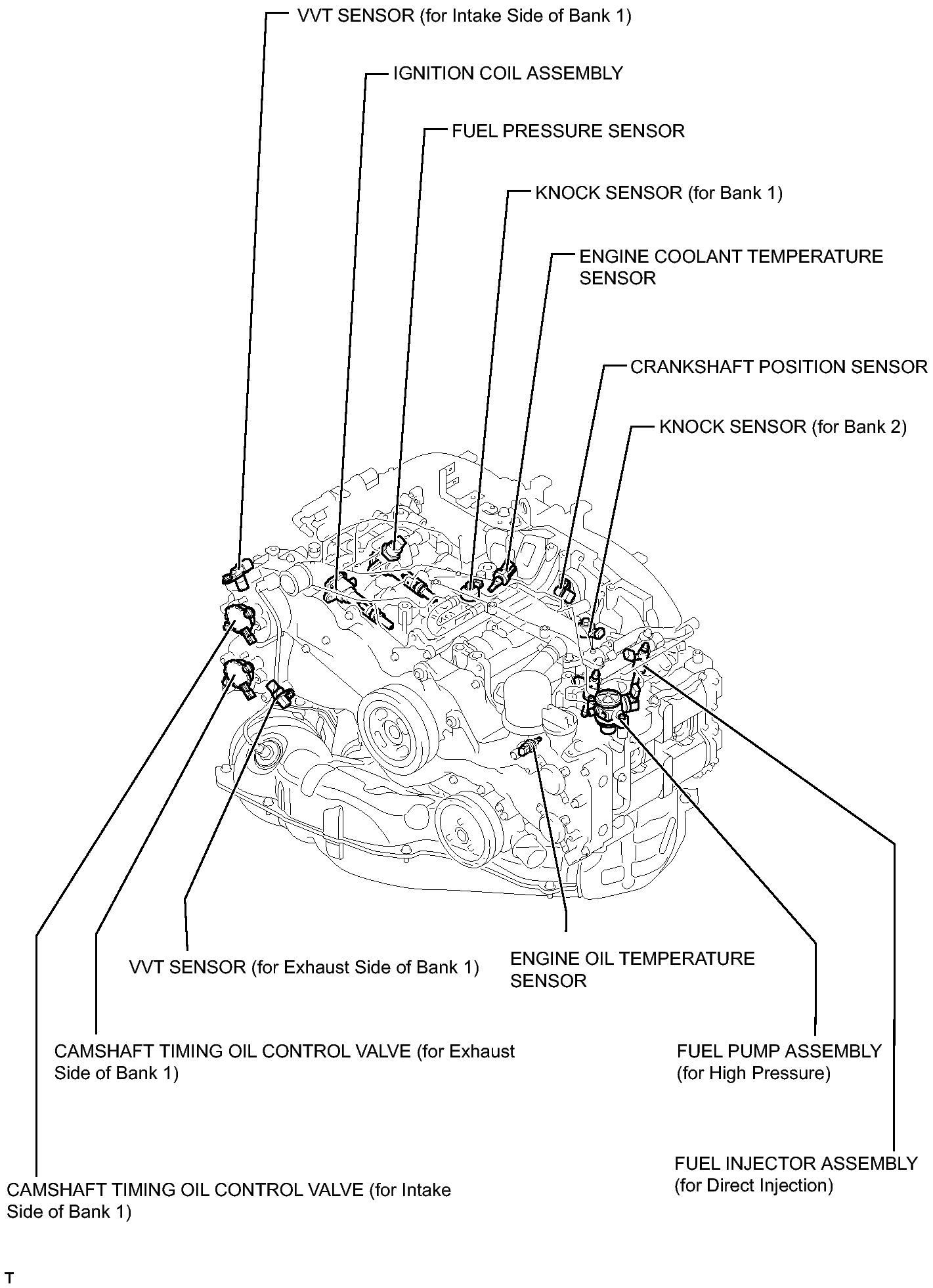

Fig 1: Identifying Engine Control System Components Location (2 Of 4)
GTY387814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

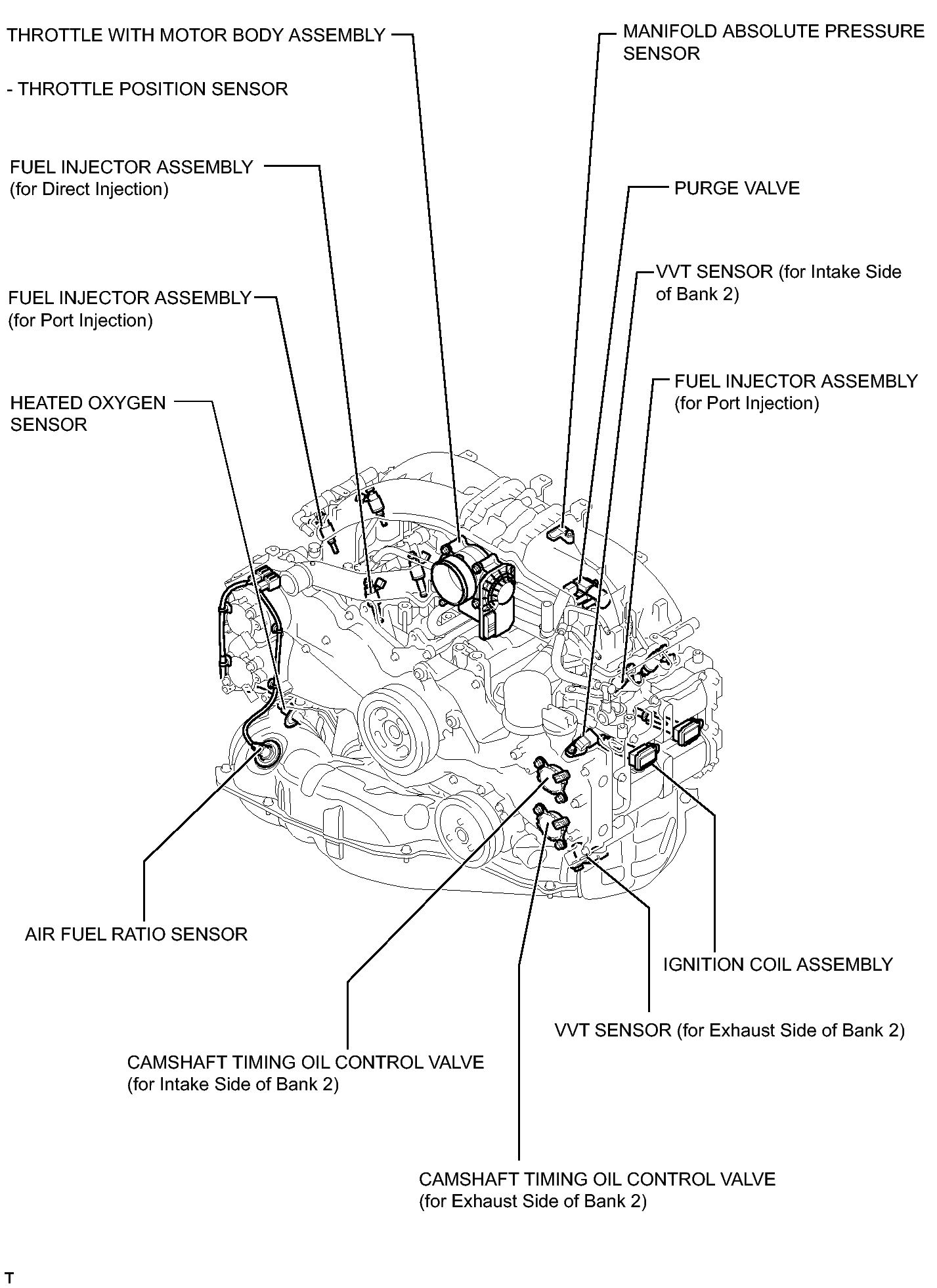

Fig 1: Identifying Engine Control System Components Location (3 Of 4)
GTY388933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Components Location (4 Of 4)
GTY421847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
