Remote Control Mirror: Notes

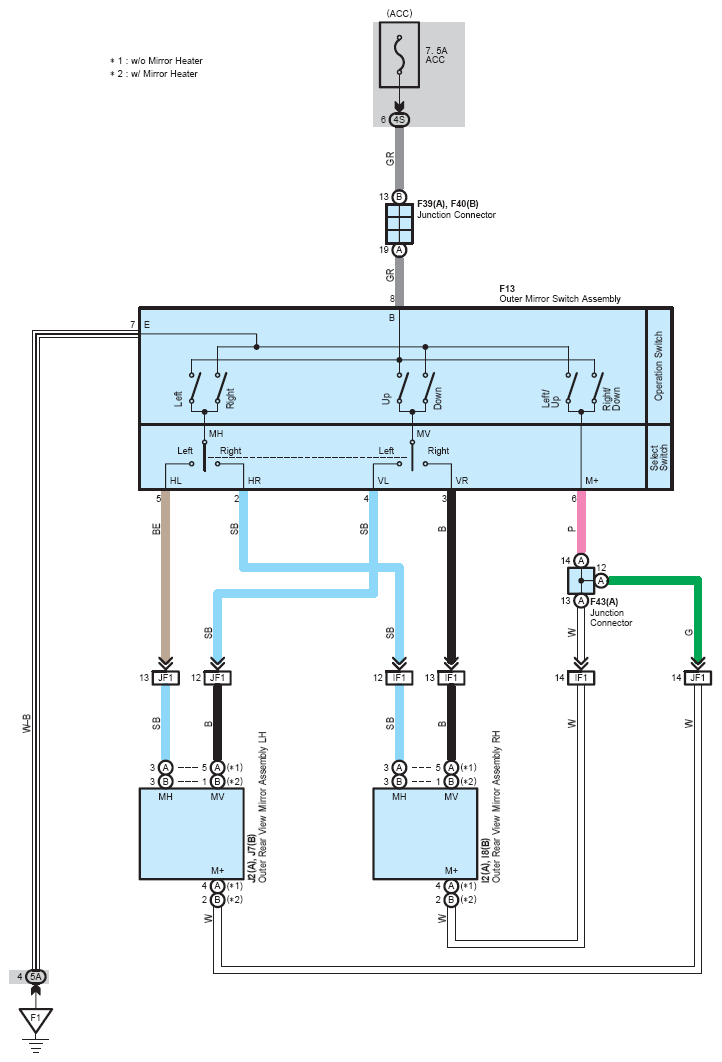

Fig 1: Remote Control Mirror - Circuit Diagram

G08777364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
