ACIS Control Circuit: Description

This circuit opens and closes the Intake Air Control Valve (IACV) according to the engine load in order to increase intake efficiency (ACIS: Acoustic Control Induction System).

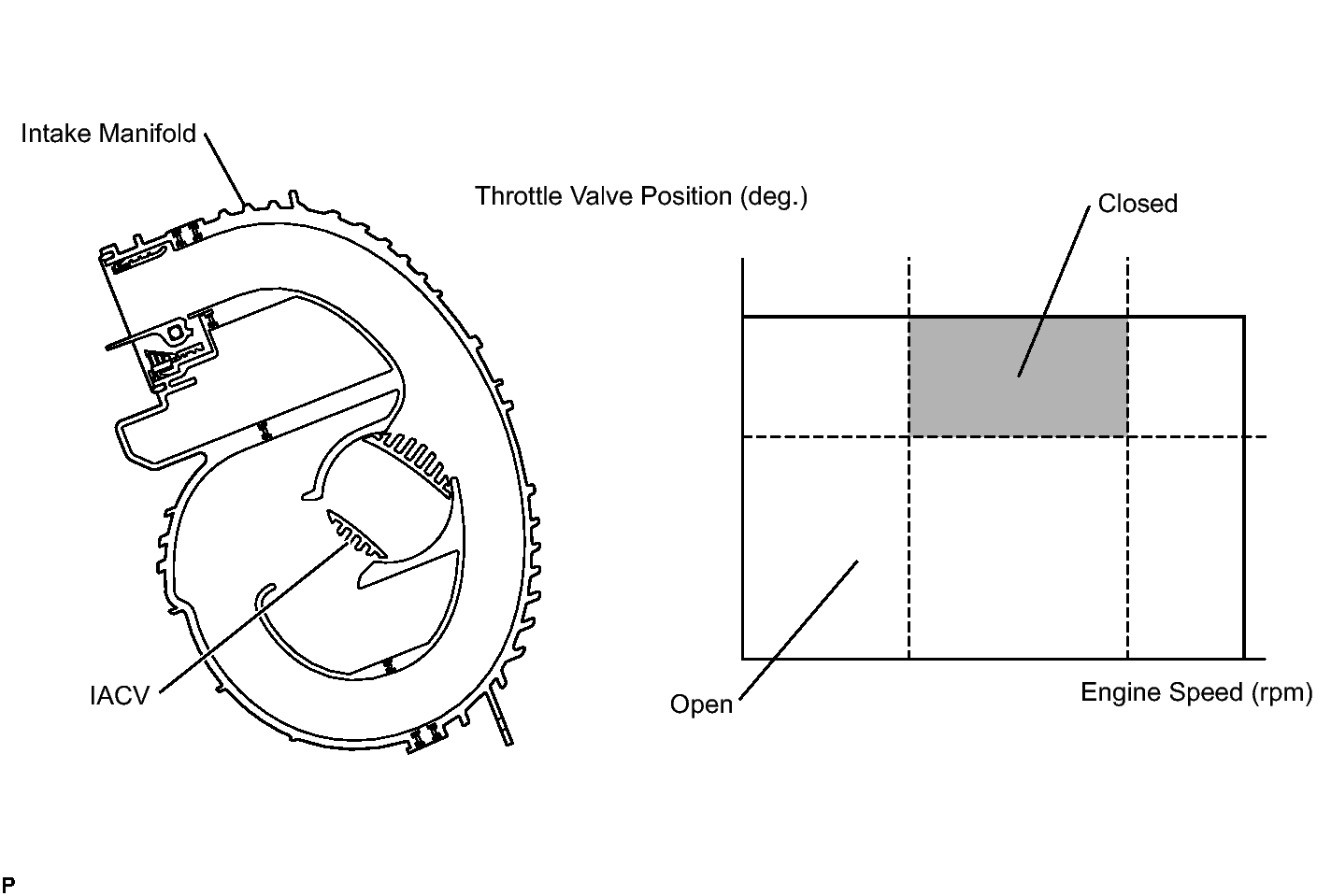

Fig 1: Throttle Valve Position Chart
GTY213585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
