System Diagram

WARNING: This page is about a different variant/trim than selected.

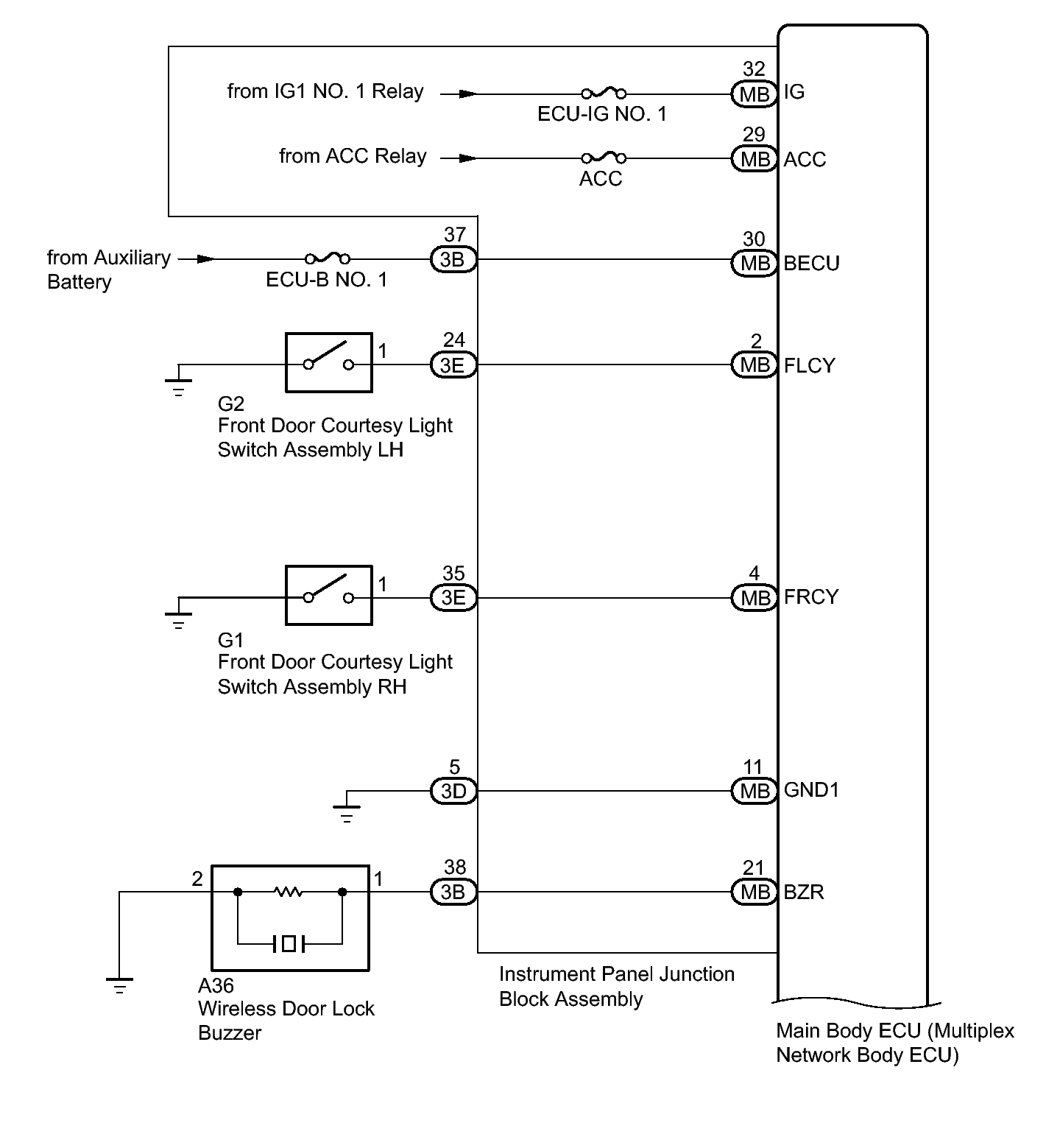

Fig 1: Wireless Door Lock Control System Diagram (1 Of 3)
GTY386817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

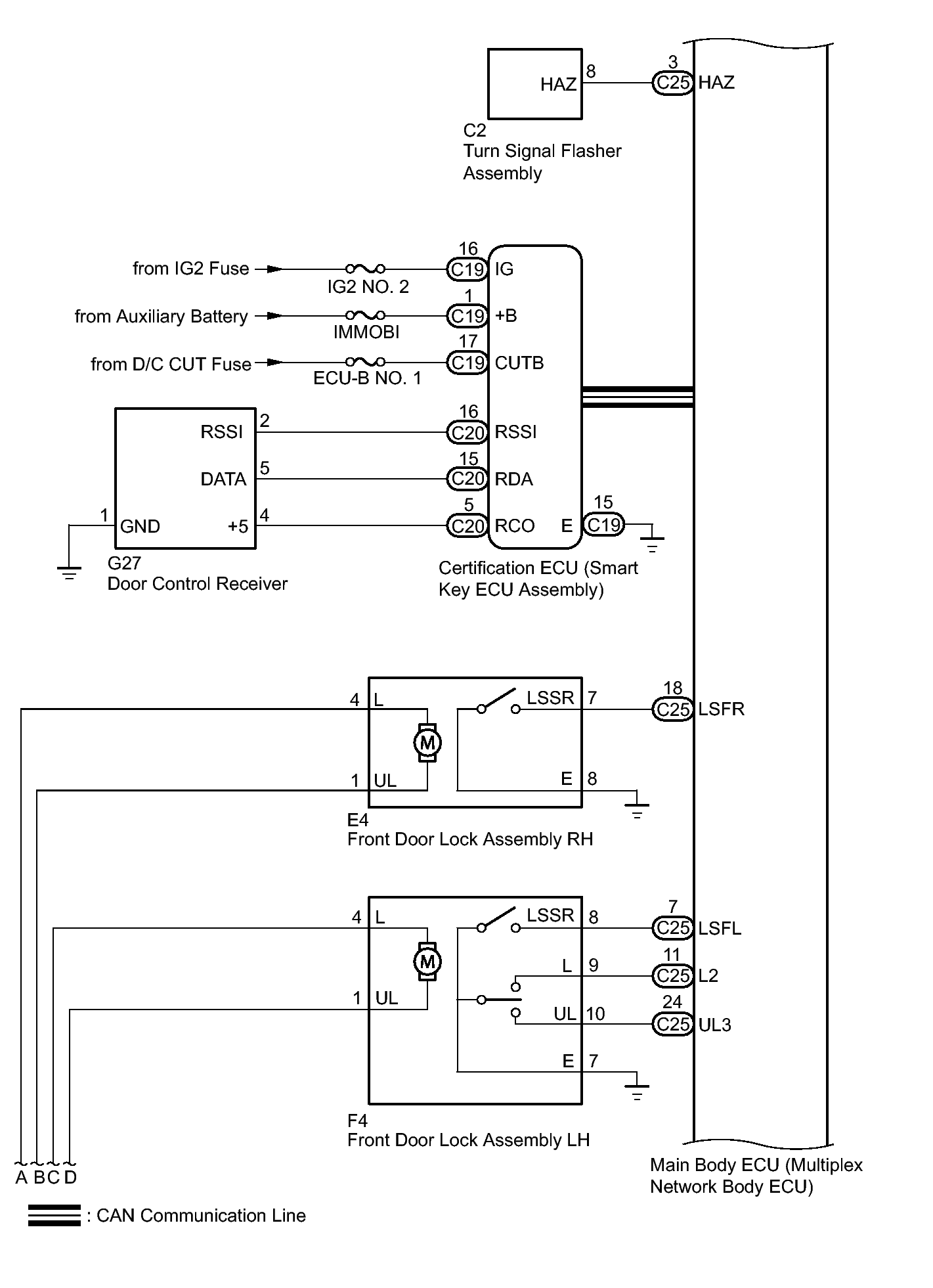

Fig 2: Wireless Door Lock Control System Diagram (2 Of 3)
GTY388972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

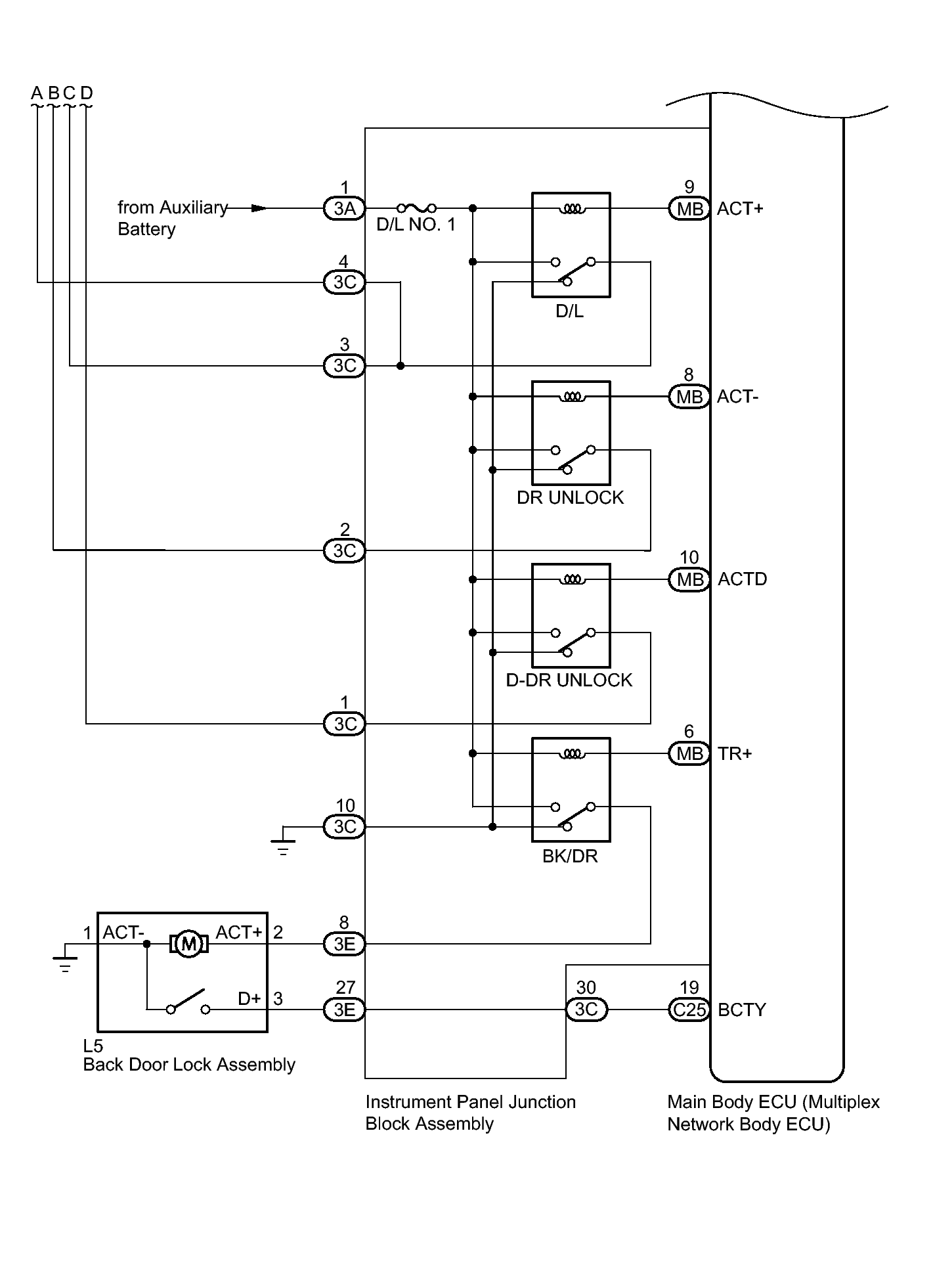

Fig 3: Wireless Door Lock Control System Diagram (3 Of 3)
GTY392474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU (Transmitter) Receiving ECU (Receiver) Signal Line
Certification ECU (Smart Key ECU Assembly) Main body ECU (Multiplex Network Body ECU) Wireless door lock signal CAN
