System Diagram

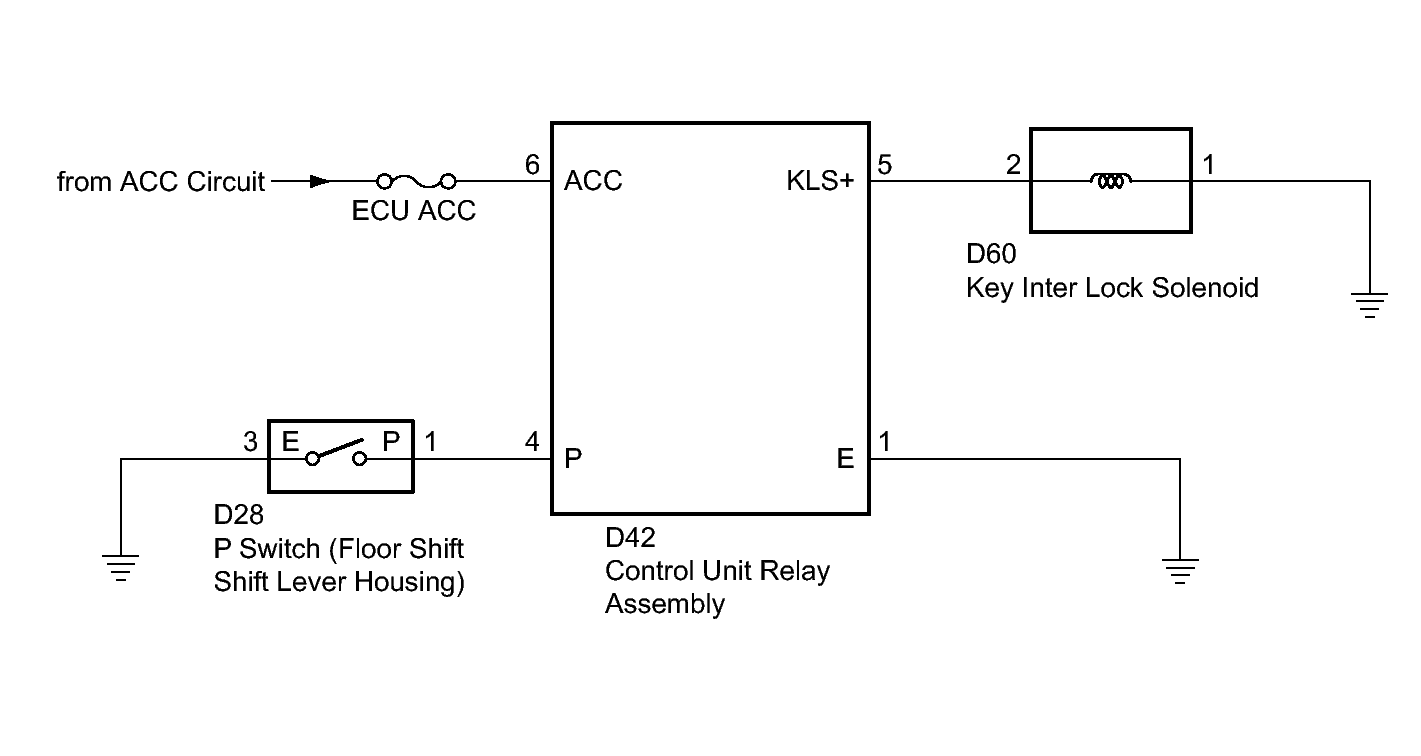

Fig 1: Identifying Key Inter Lock System Wiring Diagram

GTY388420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
