Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock: Notes

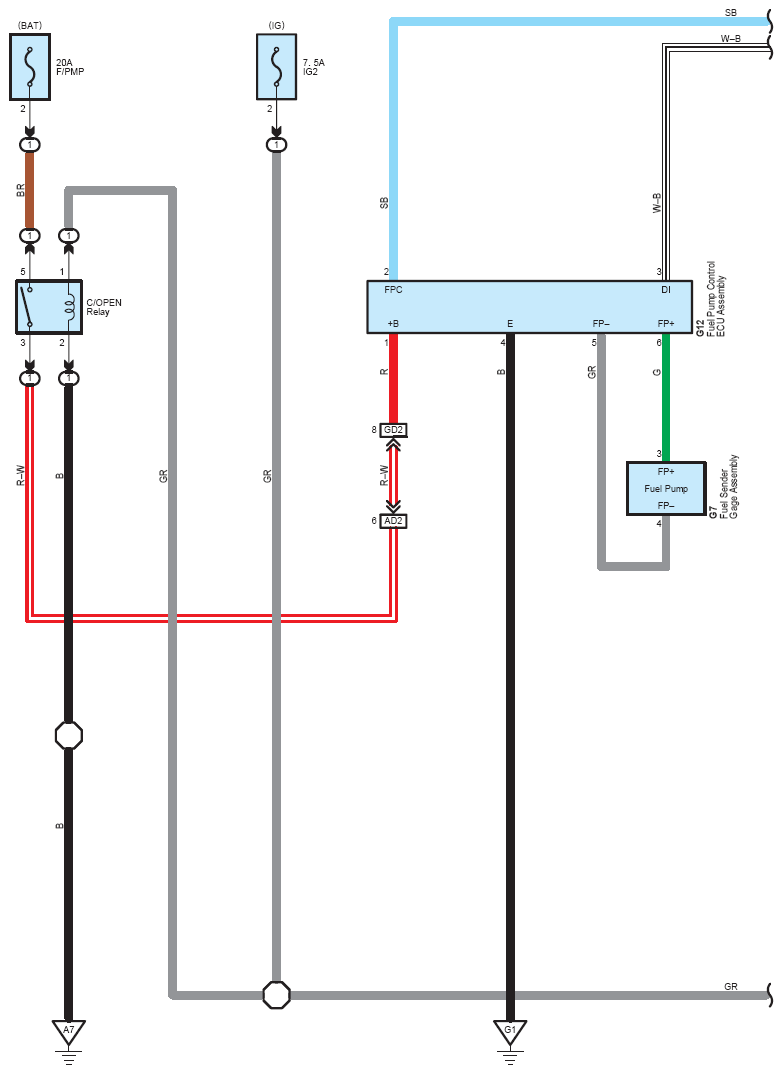

Fig 1: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (1 Of 33)
G08774077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

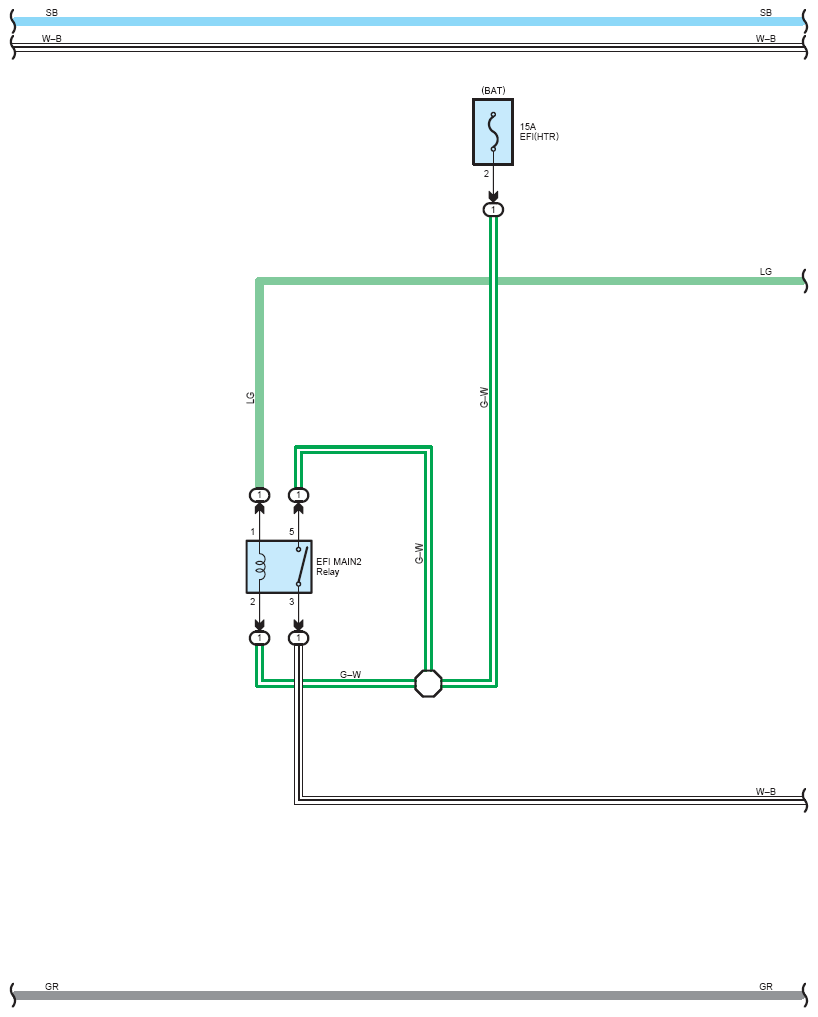

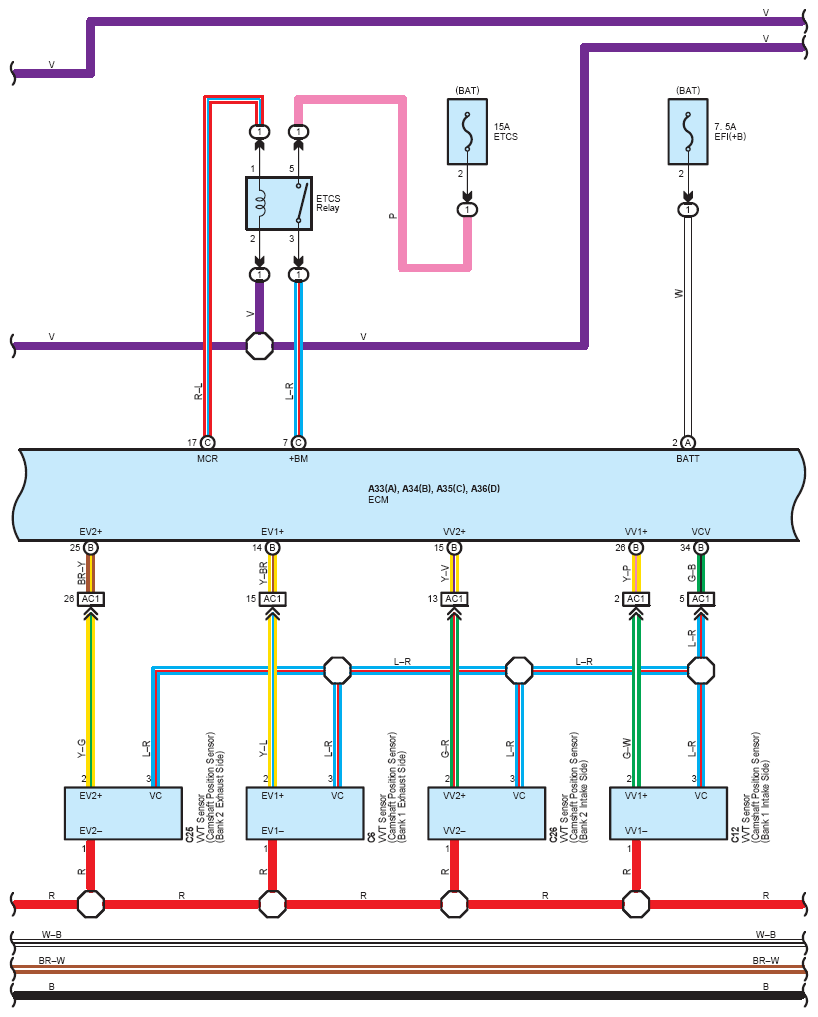

Fig 2: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (2 Of 33)
G08774078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (3 Of 33)
G08774079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

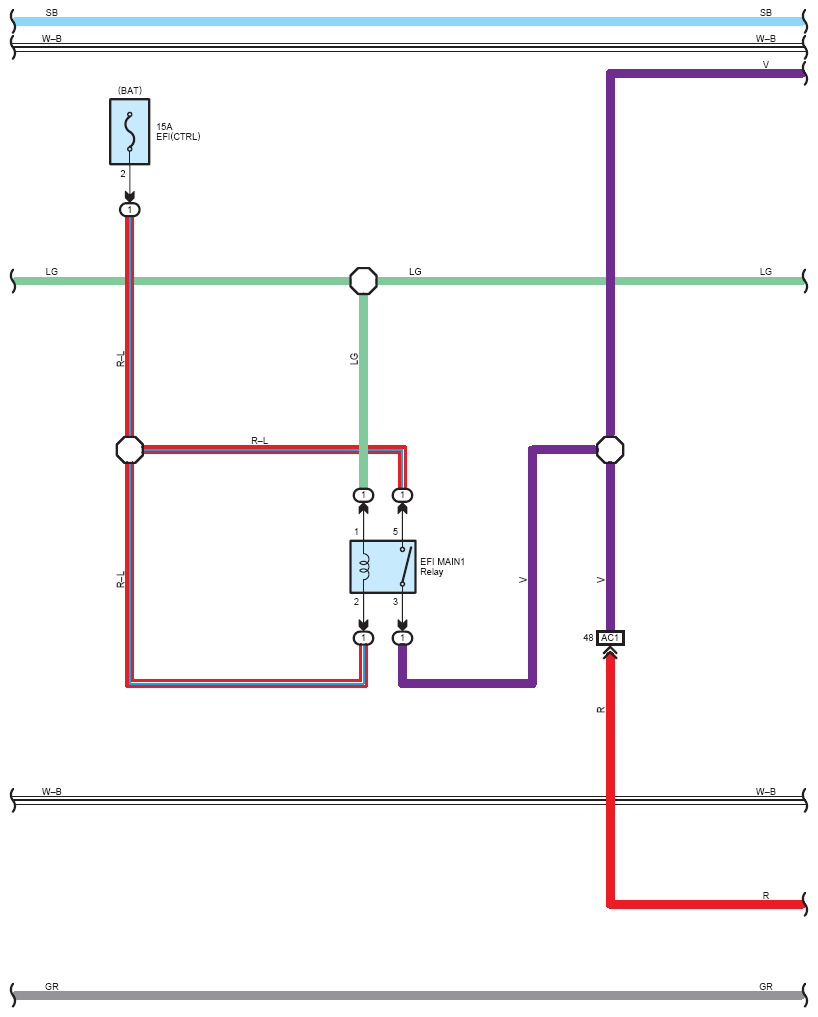

Fig 4: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (4 Of 33)
G08774080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

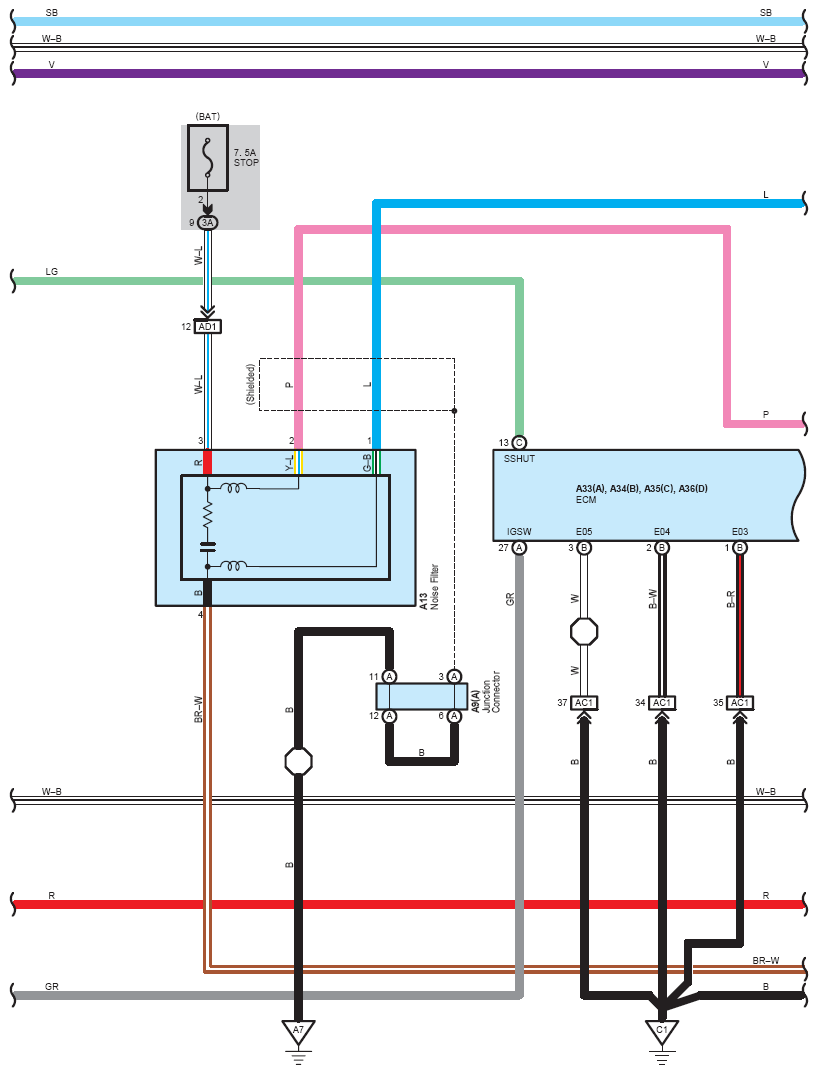

Fig 5: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (5 Of 33)
G08774081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

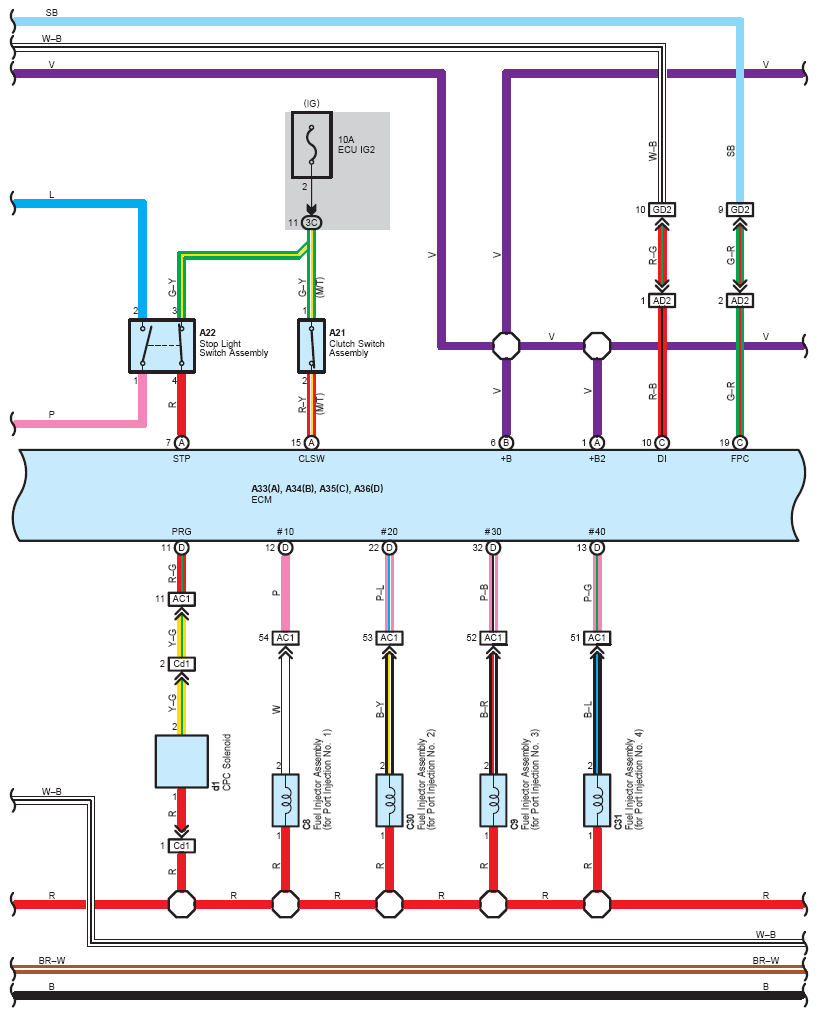

Fig 6: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (6 Of 33)
G08774082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

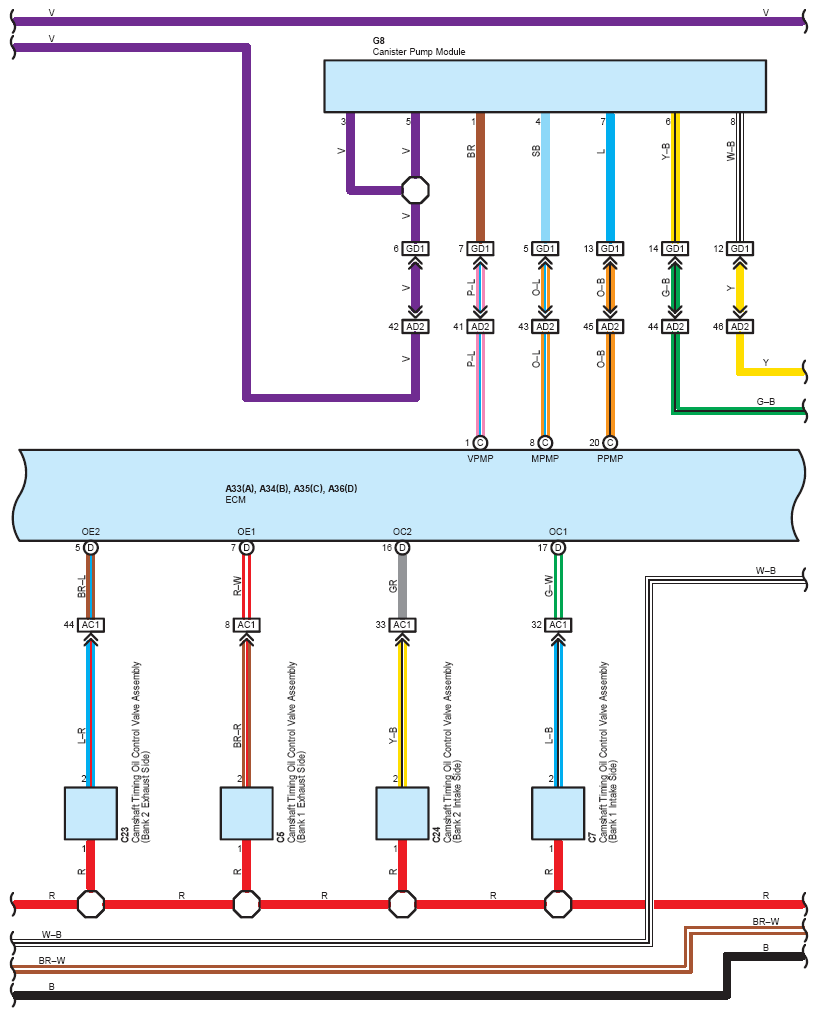

Fig 7: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (7 Of 33)
G08774083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (8 Of 33)
G08774084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

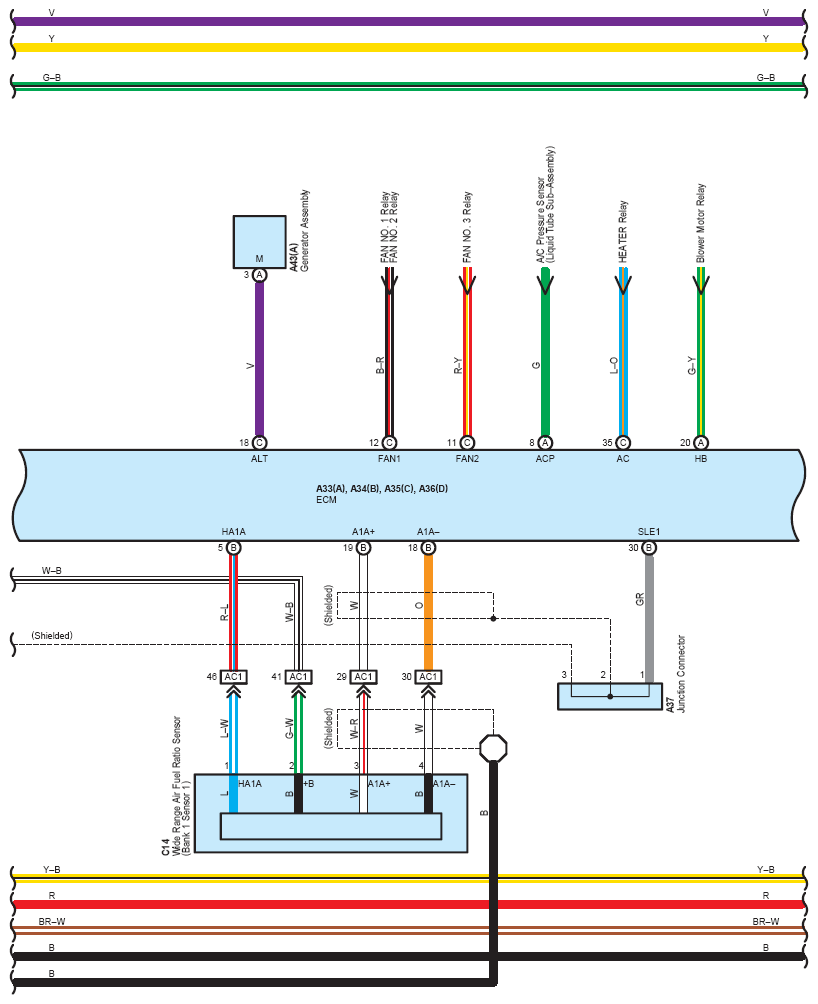

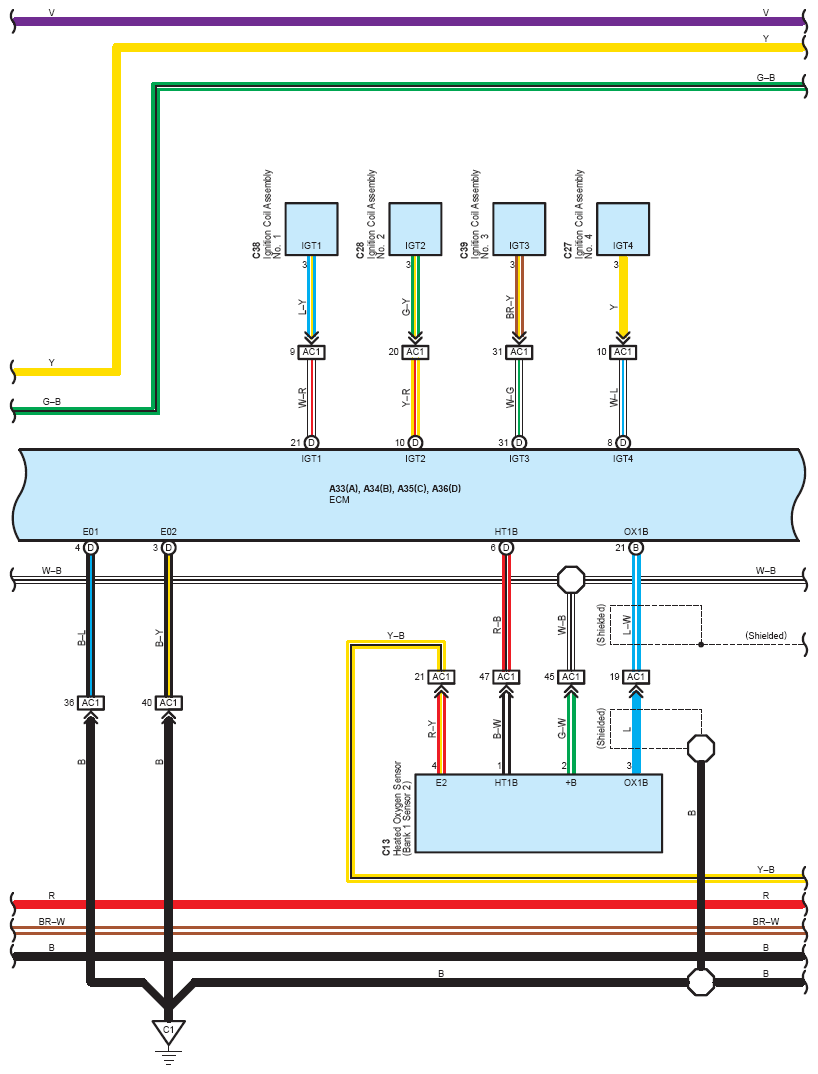

Fig 9: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (9 Of 33)
G08774085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

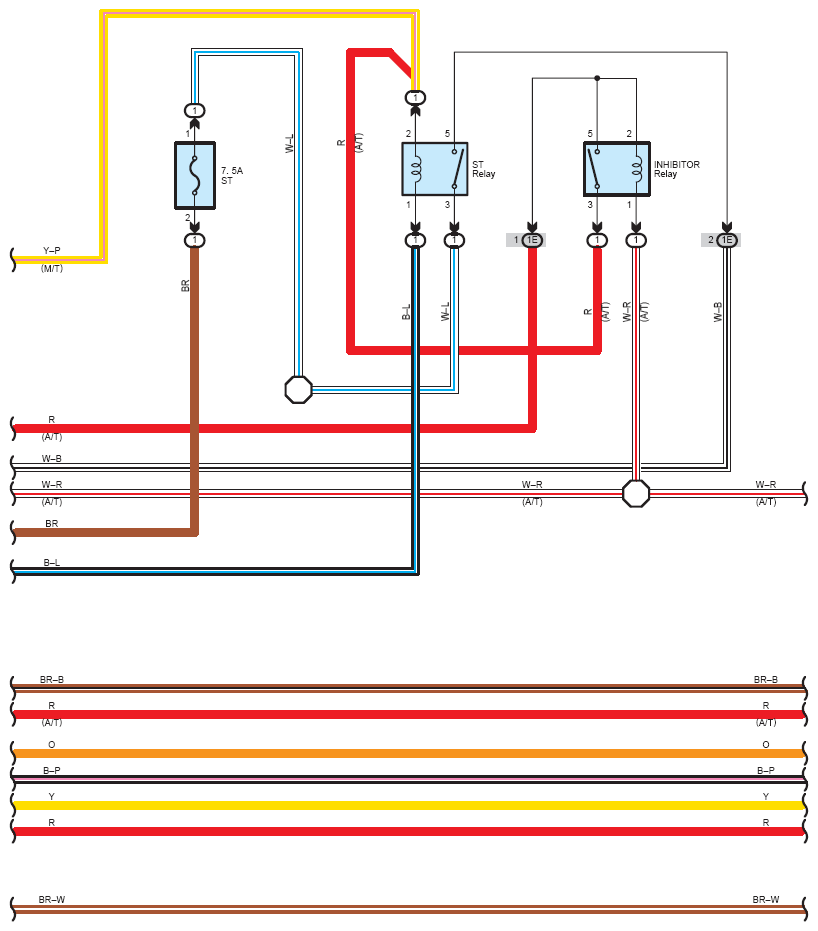

Fig 10: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (10 Of 33)
G08774086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

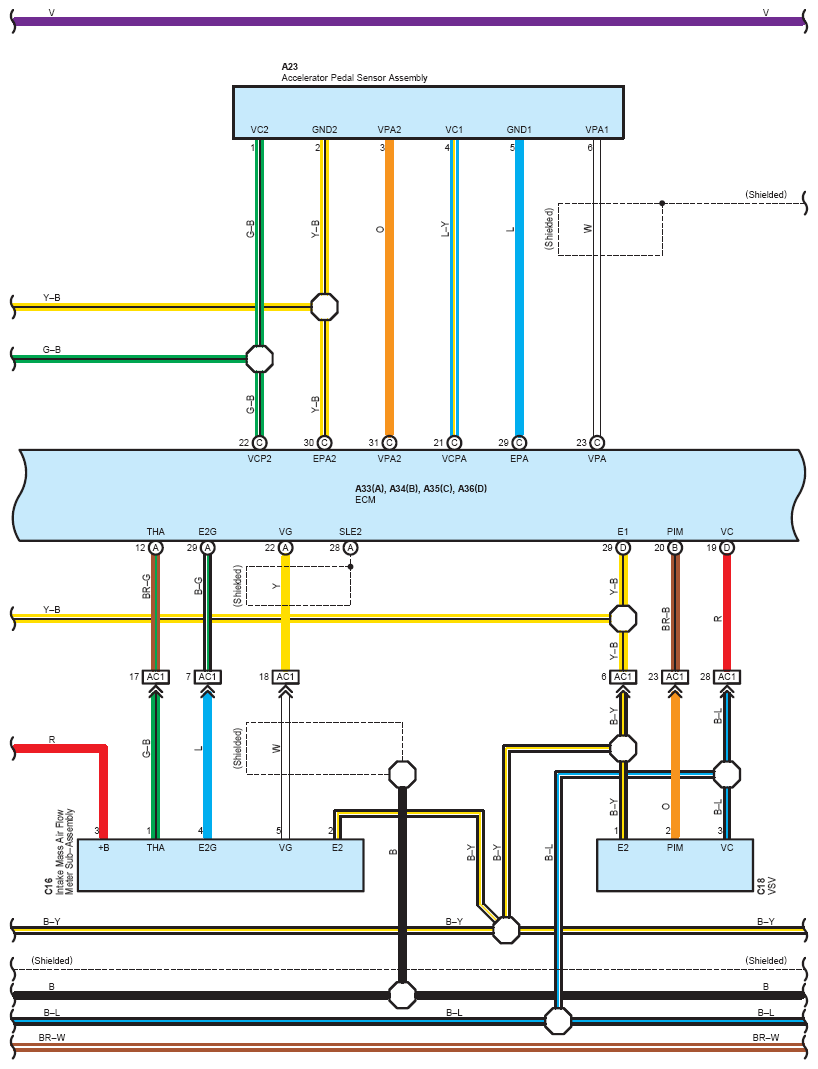

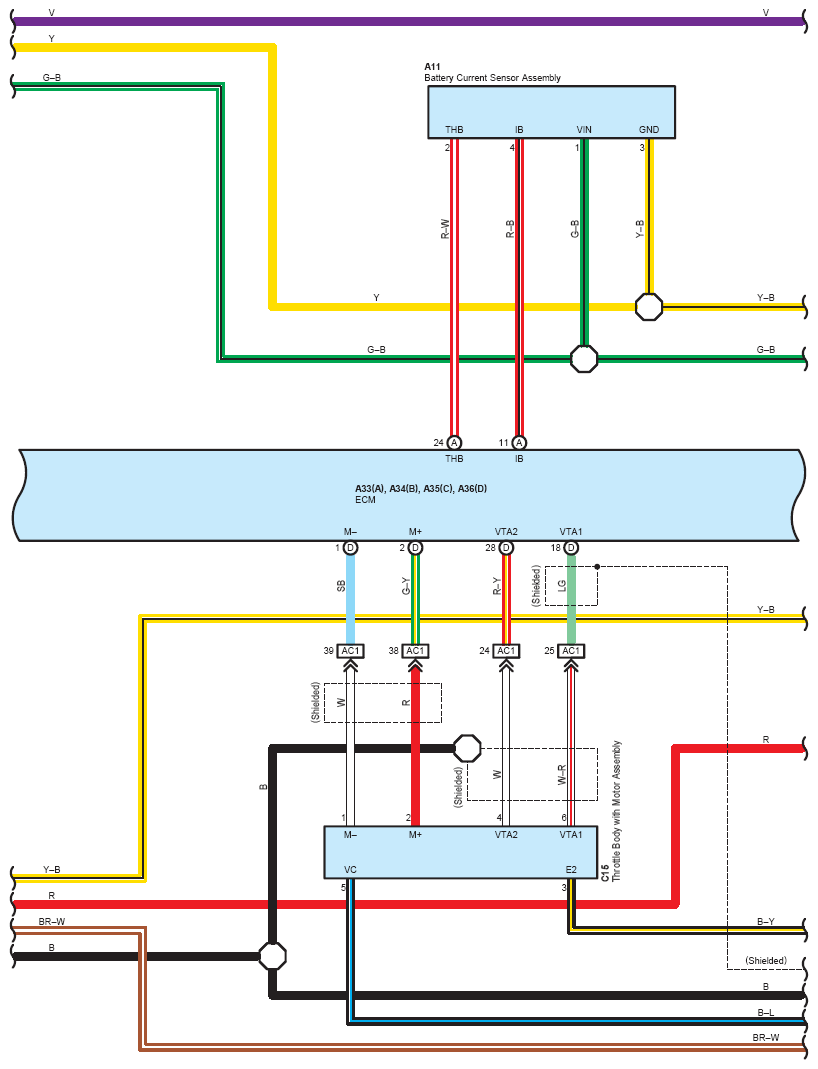

Fig 11: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (11 Of 33)
G08774087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (12 Of 33)
G08774088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

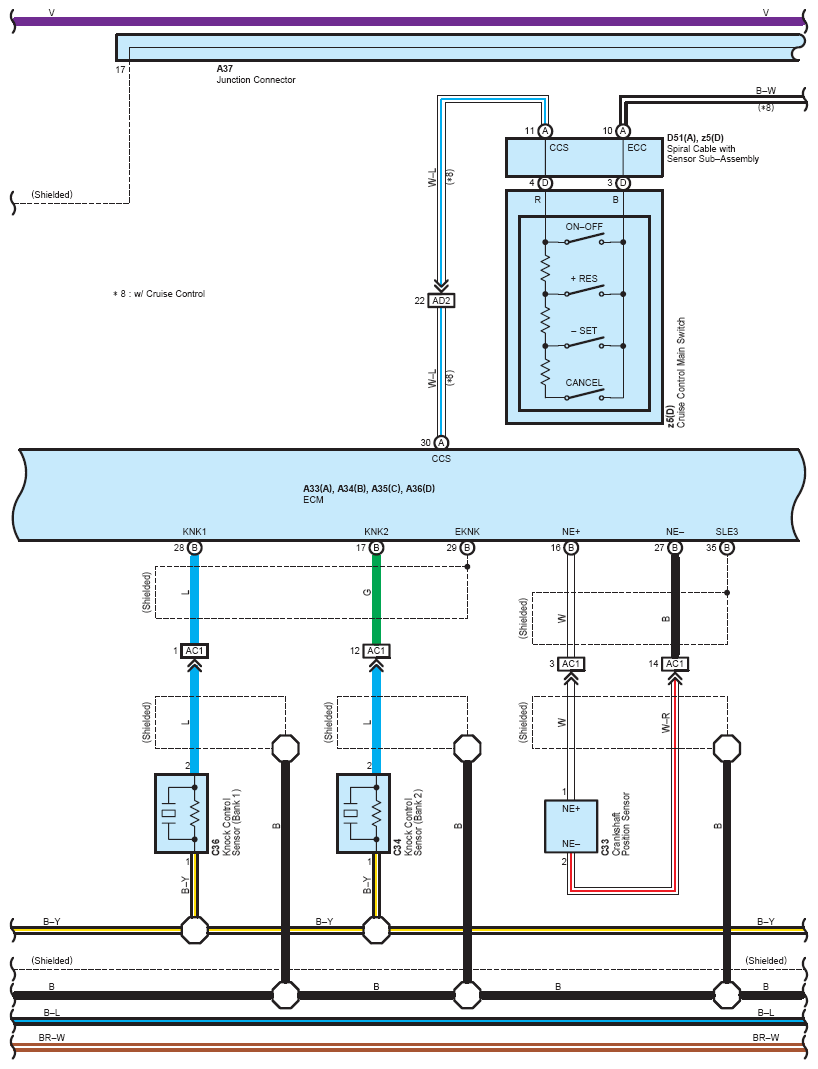

Fig 13: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (13 Of 33)
G08774089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

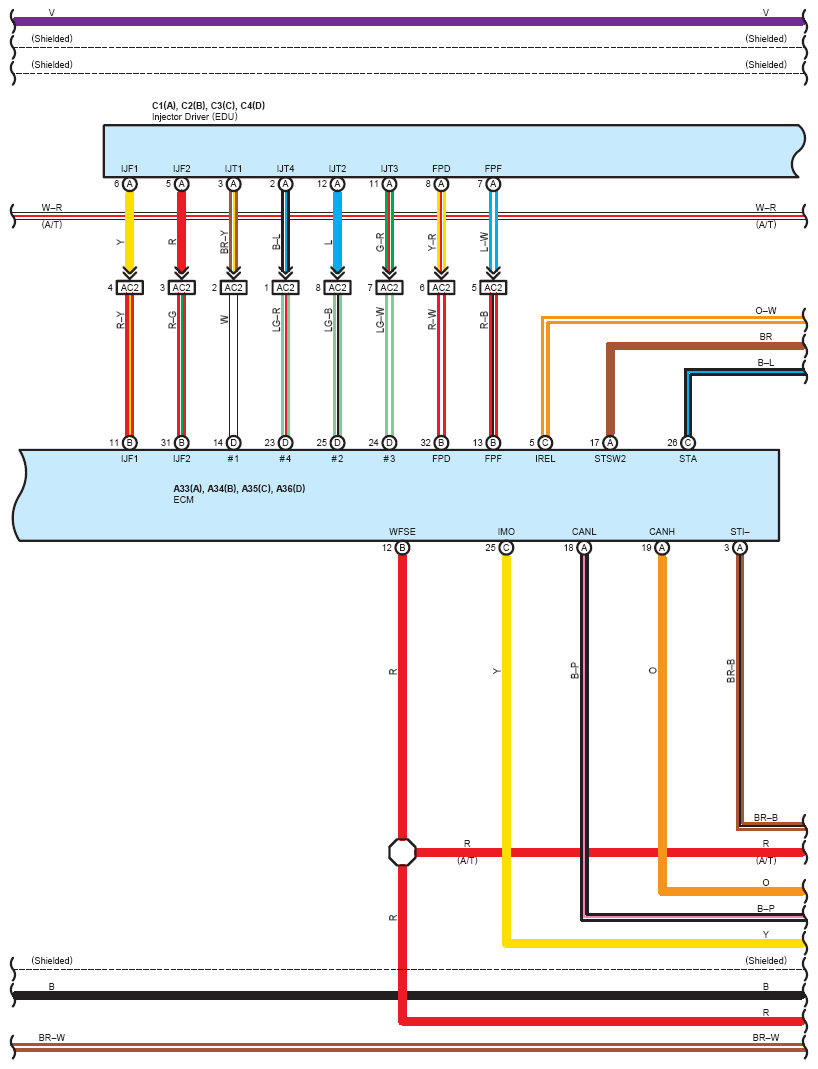

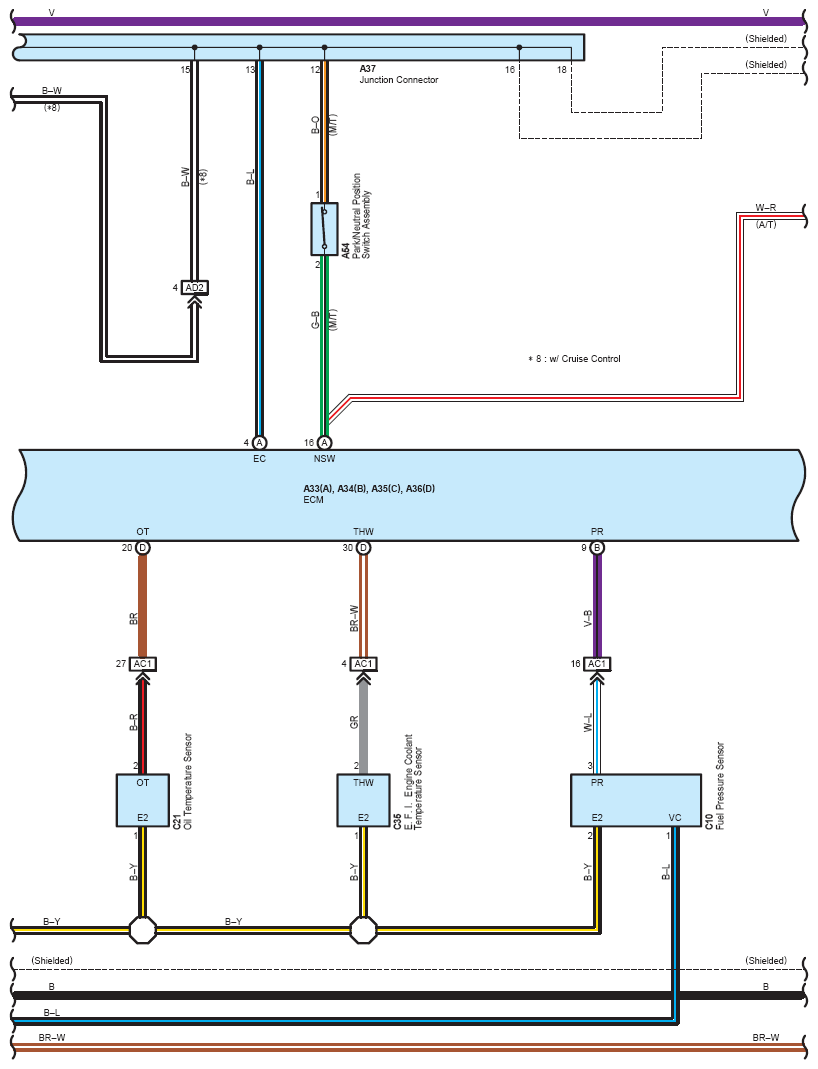

Fig 14: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (14 Of 33)
G08774090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

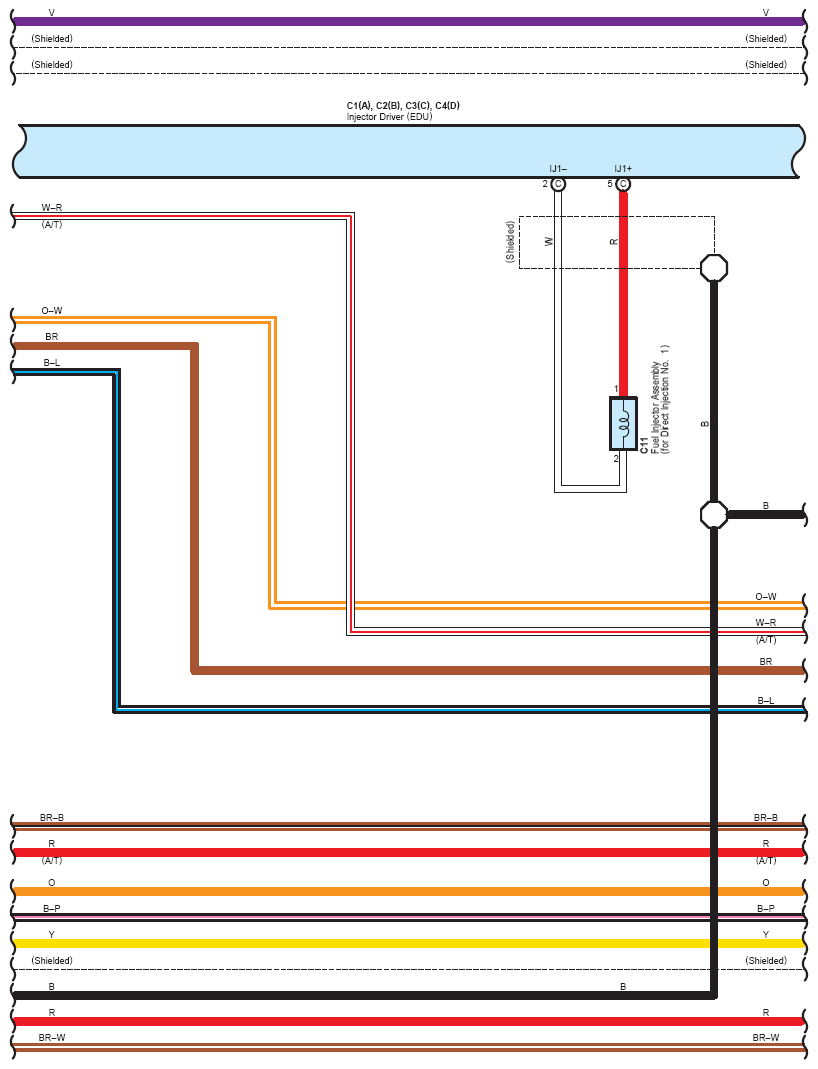

Fig 15: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (15 Of 33)
G08774091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

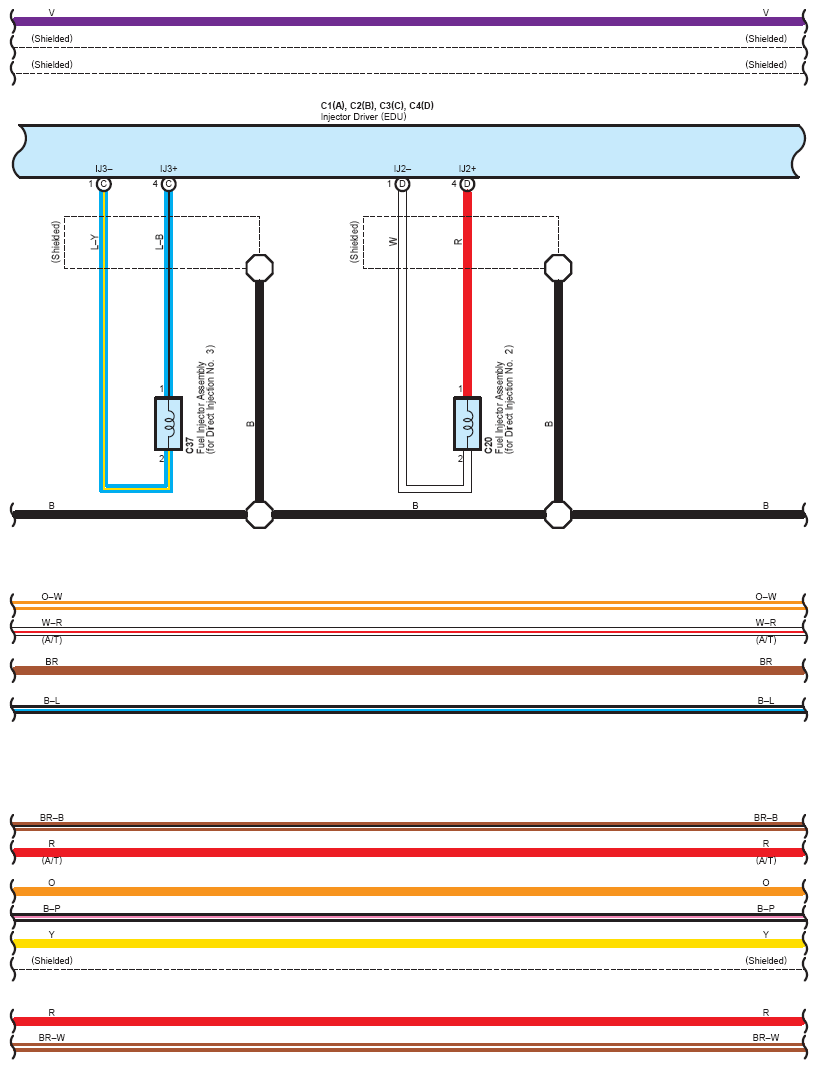

Fig 16: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (16 Of 33)
G08774092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

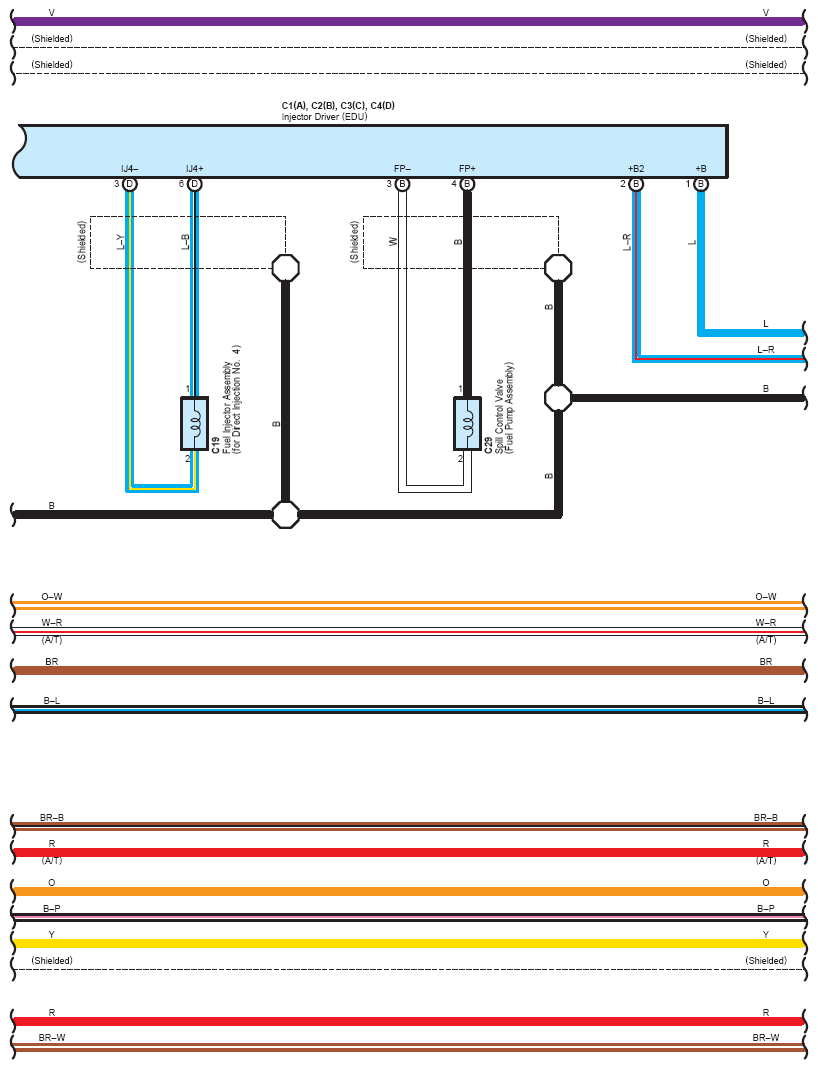

Fig 17: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (17 Of 33)
G08774093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

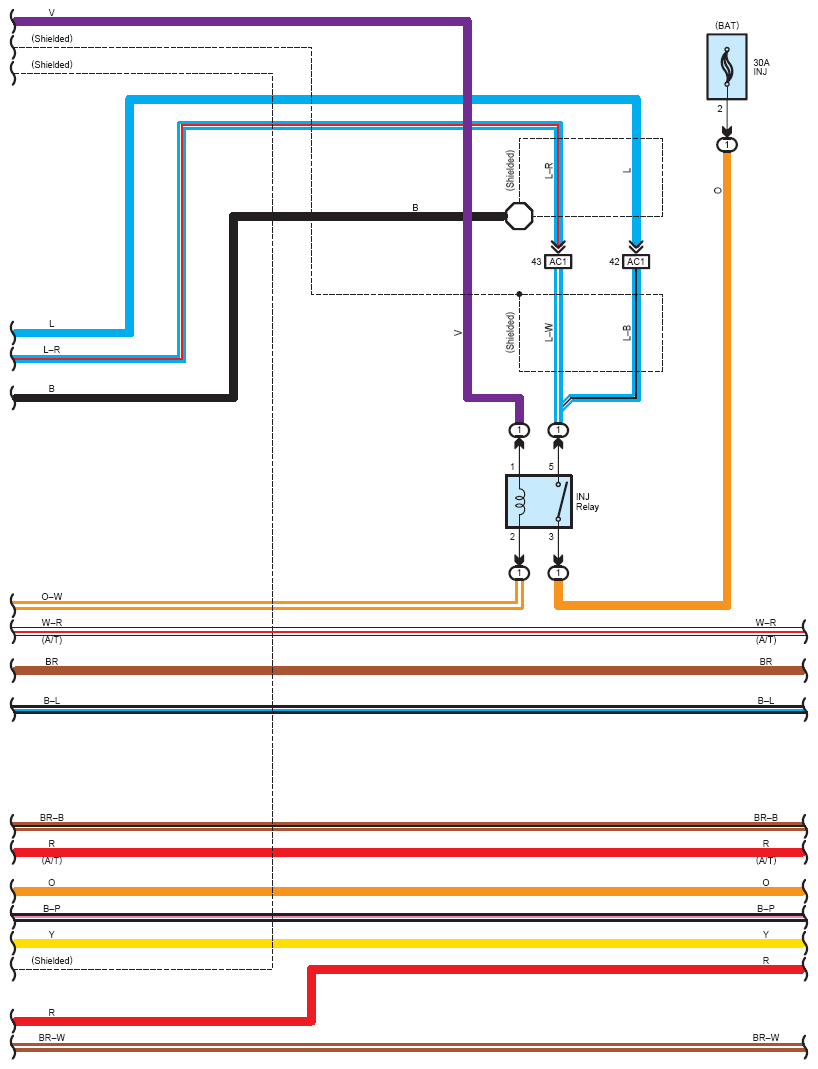

Fig 18: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (18 Of 33)
G08774094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

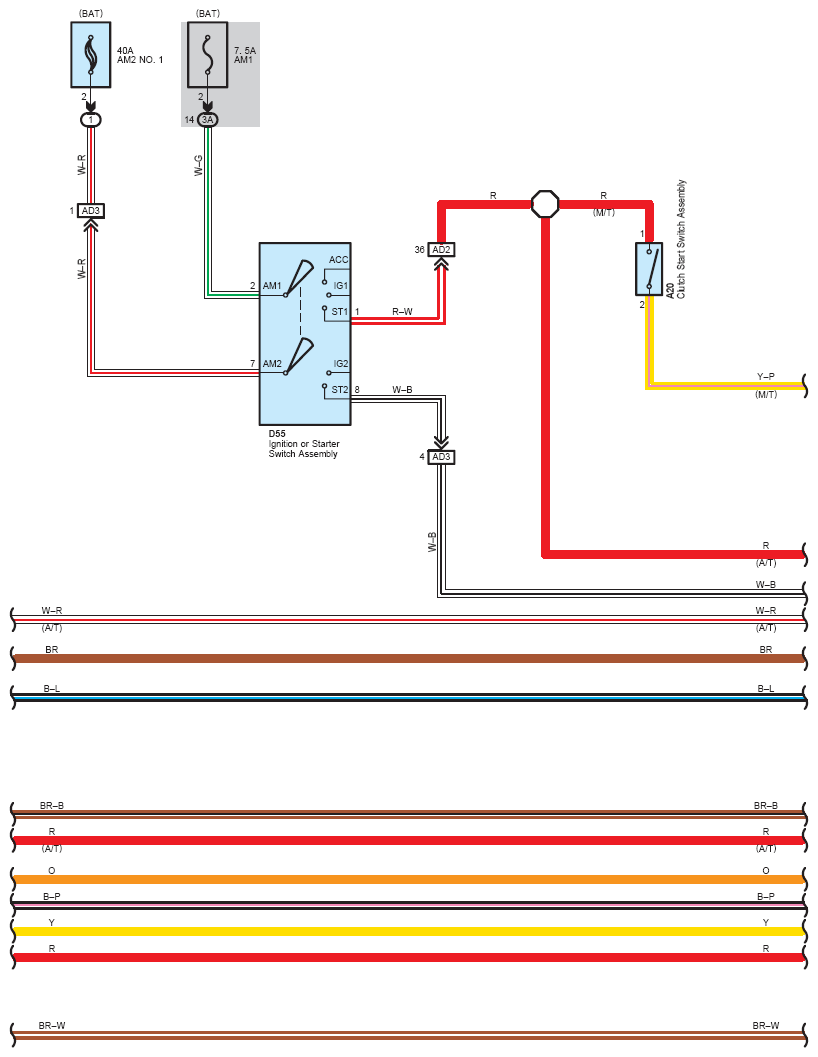

Fig 19: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (19 Of 33)
G08774095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (20 Of 33)
G08774096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

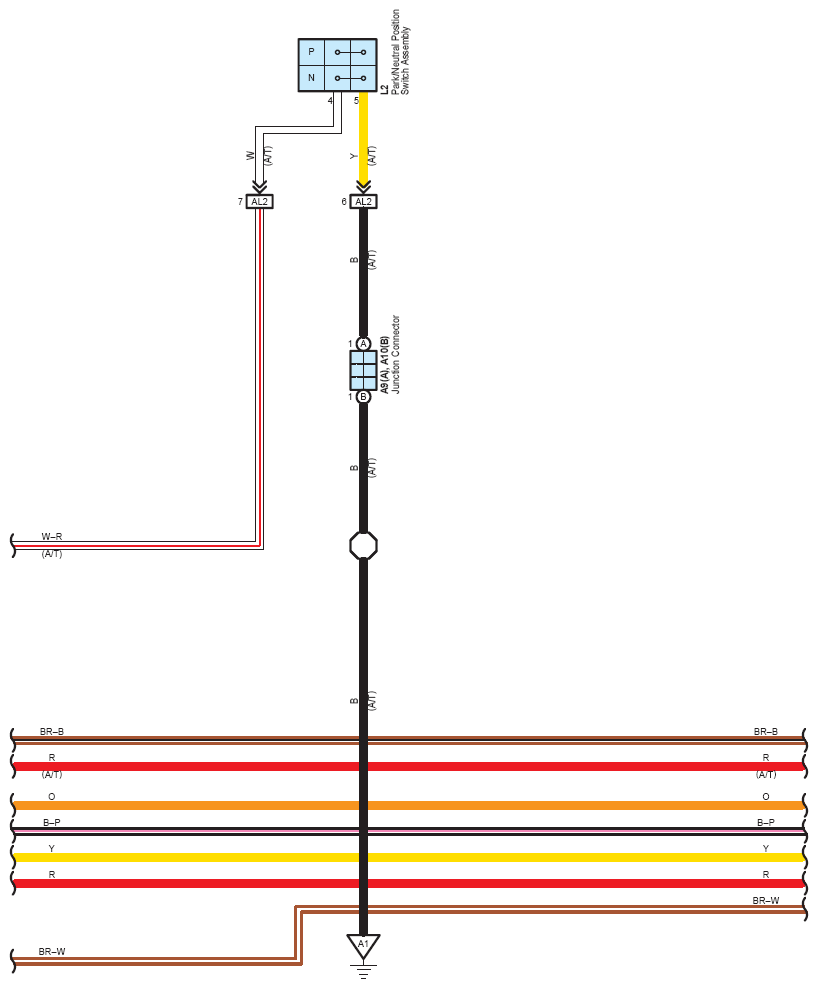

Fig 21: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (21 Of 33)
G08774097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

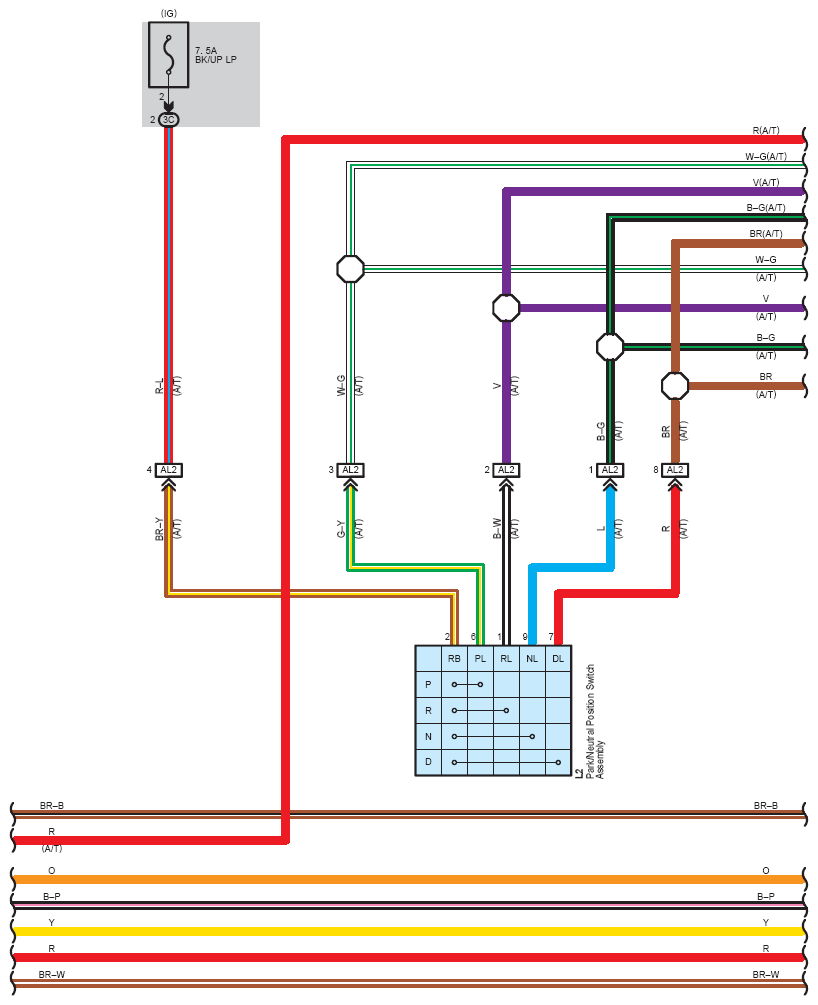

Fig 22: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (22 Of 33)
G08774098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

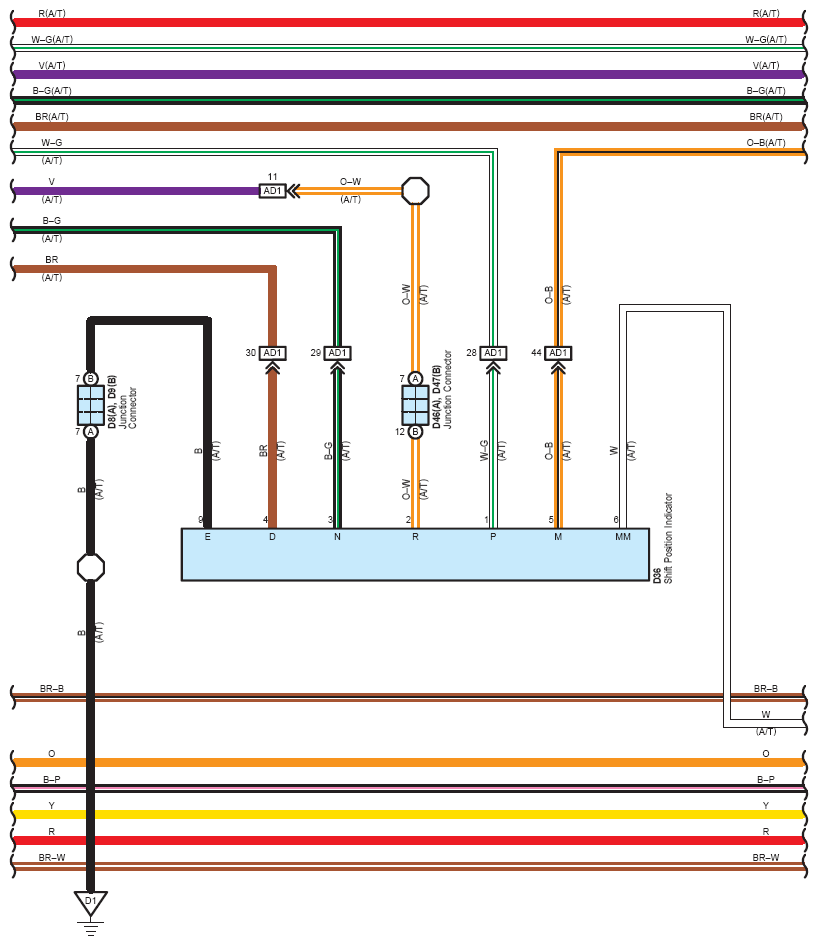

Fig 23: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (23 Of 33)
G08774099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

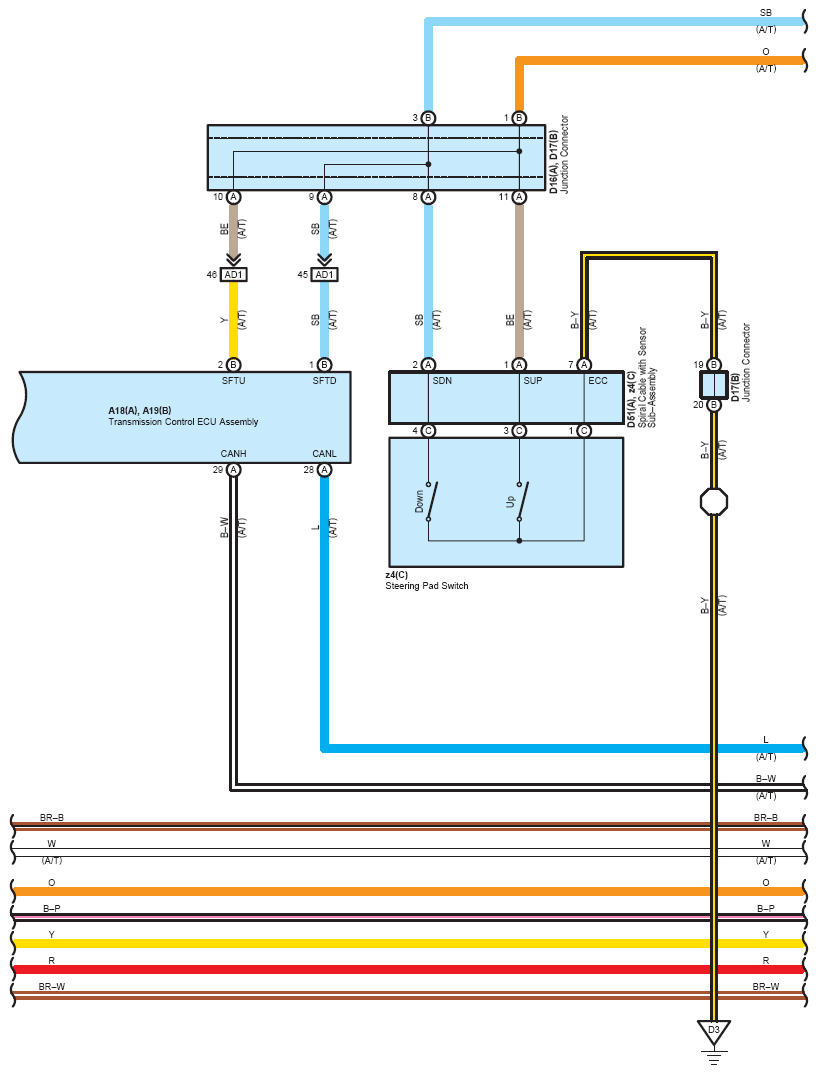

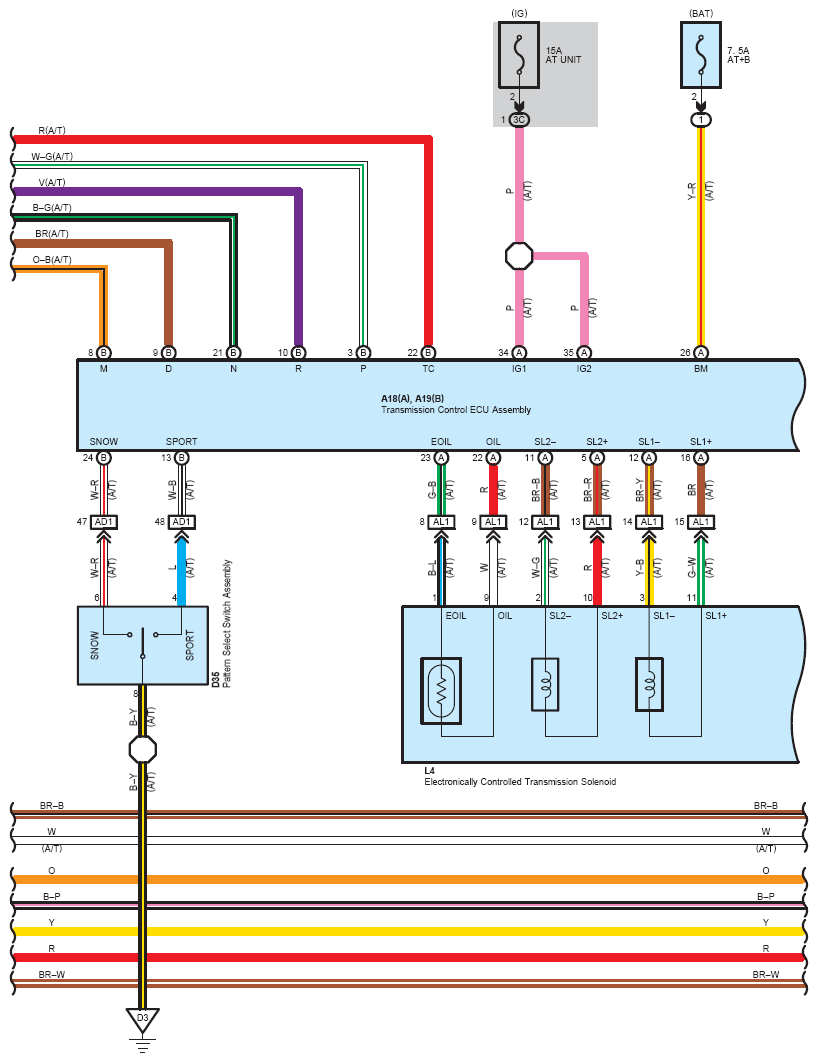

Fig 24: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (24 Of 33)
G08774100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

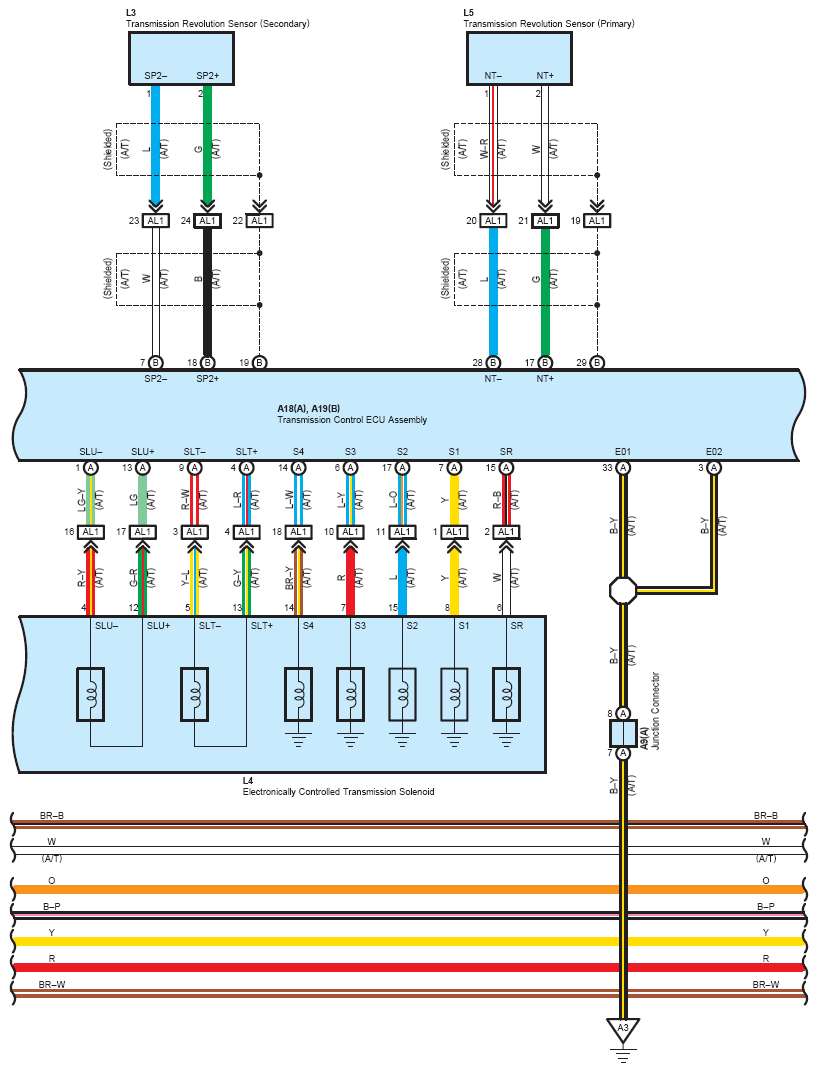

Fig 25: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (25 Of 33)
G08774101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 26: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (26 Of 33)
G08774102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 27: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (27 Of 33)
G08774103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

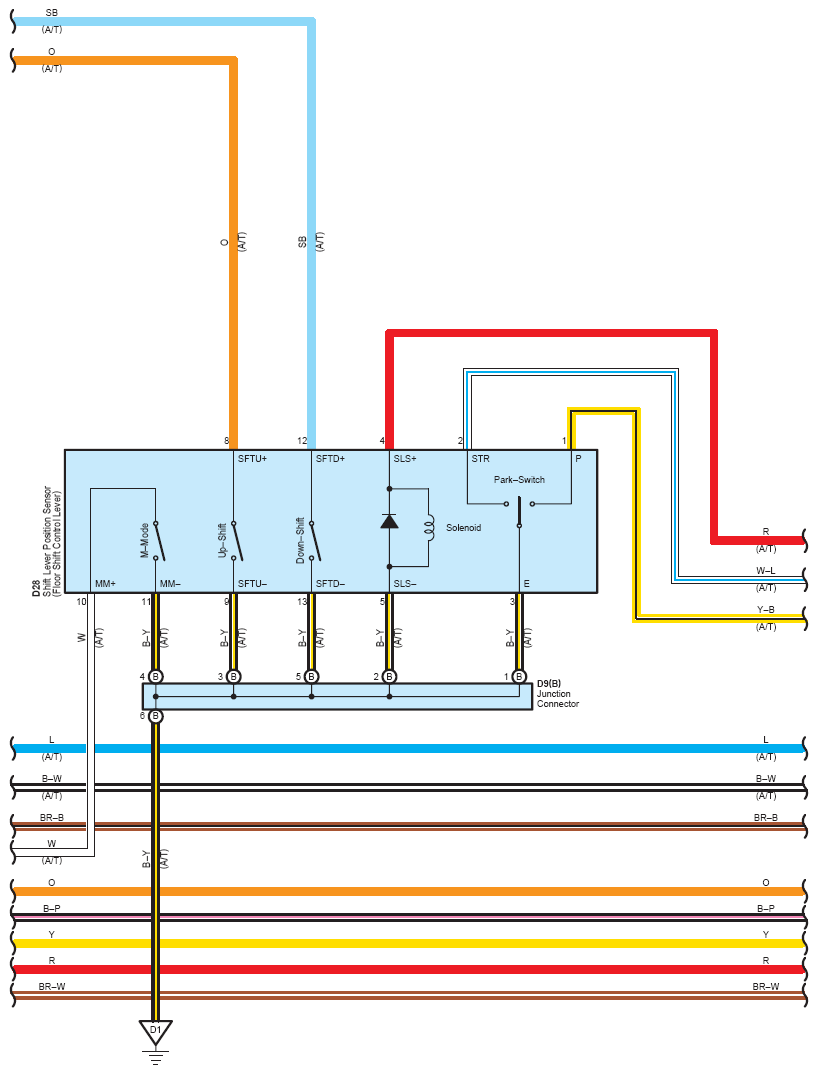

Fig 28: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (28 Of 33)
G08774104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

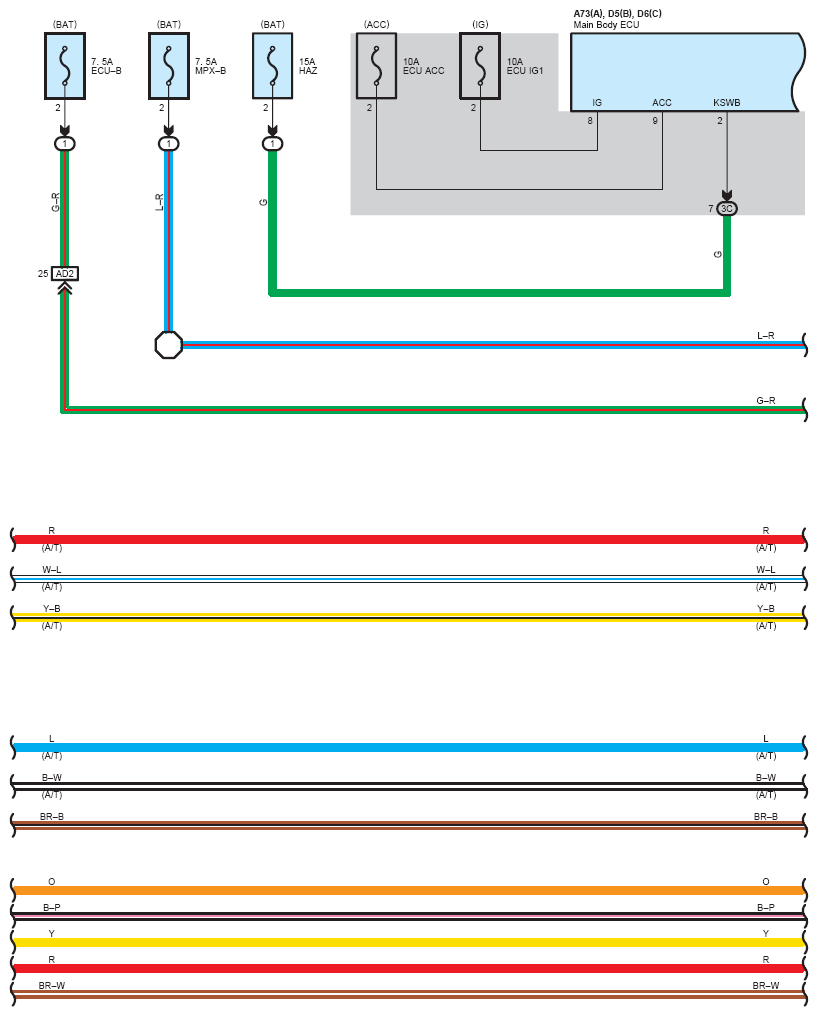

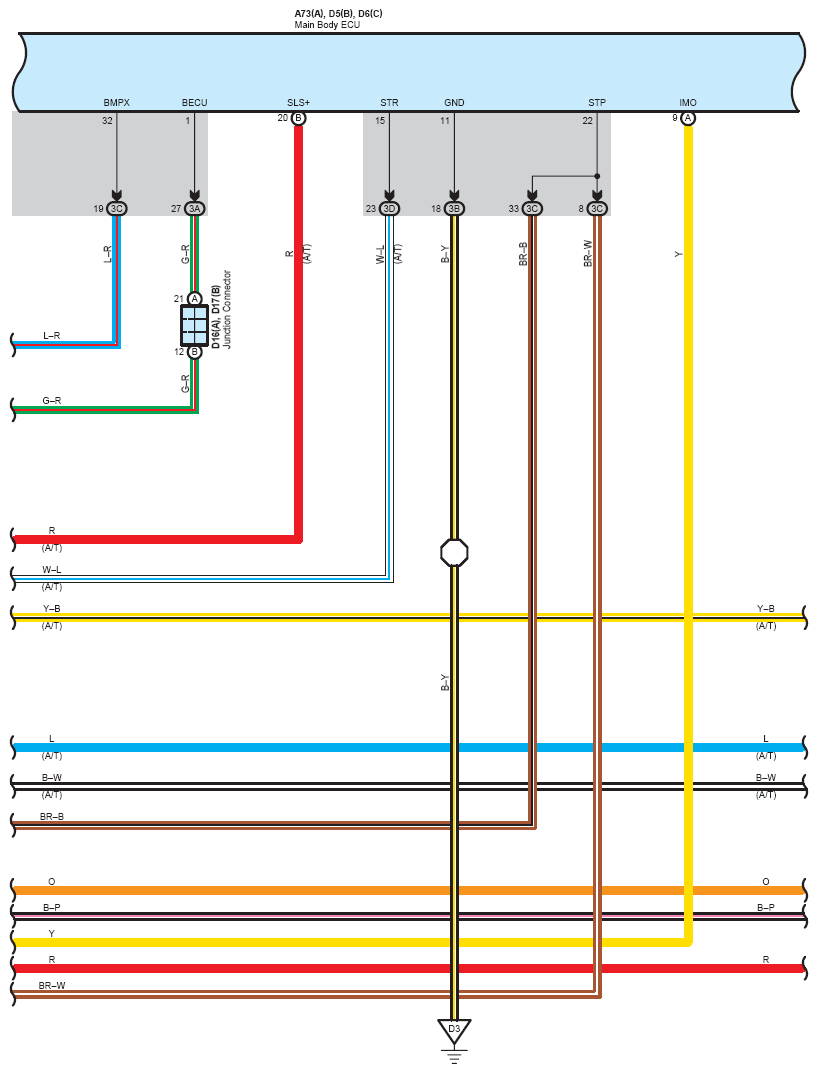

Fig 29: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (29 Of 33)
G08774105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

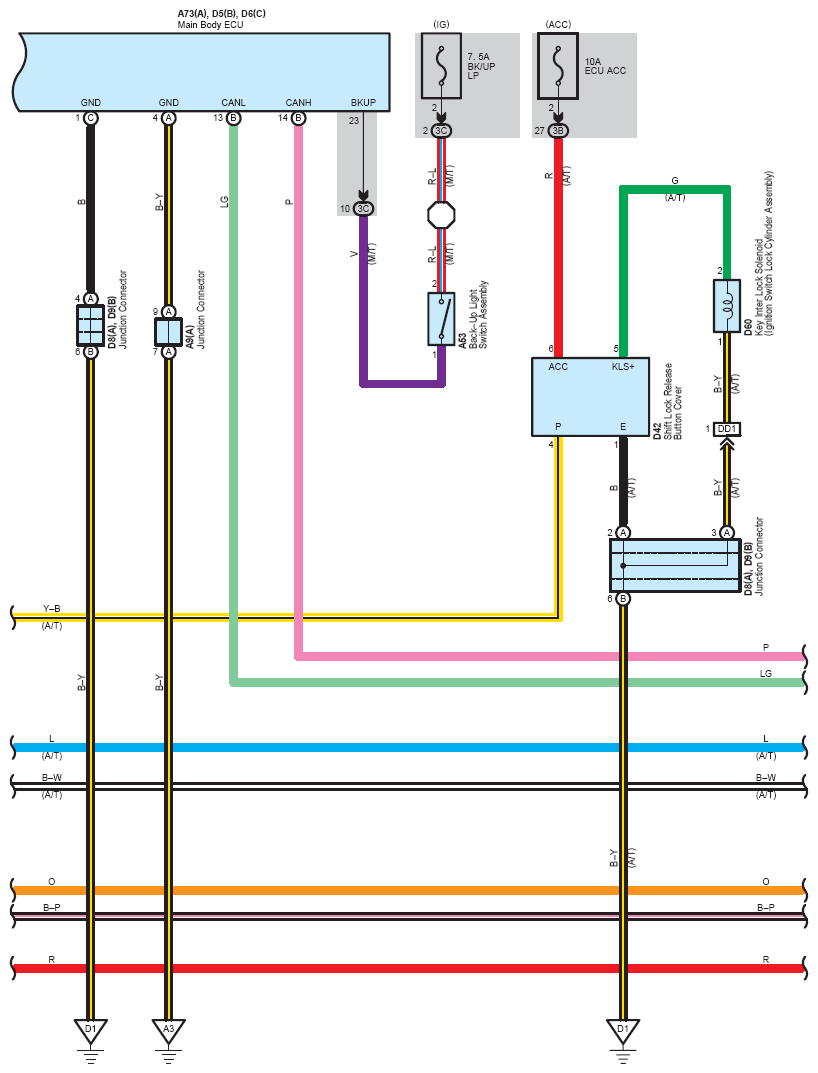

Fig 30: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (30 Of 33)
G08774106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

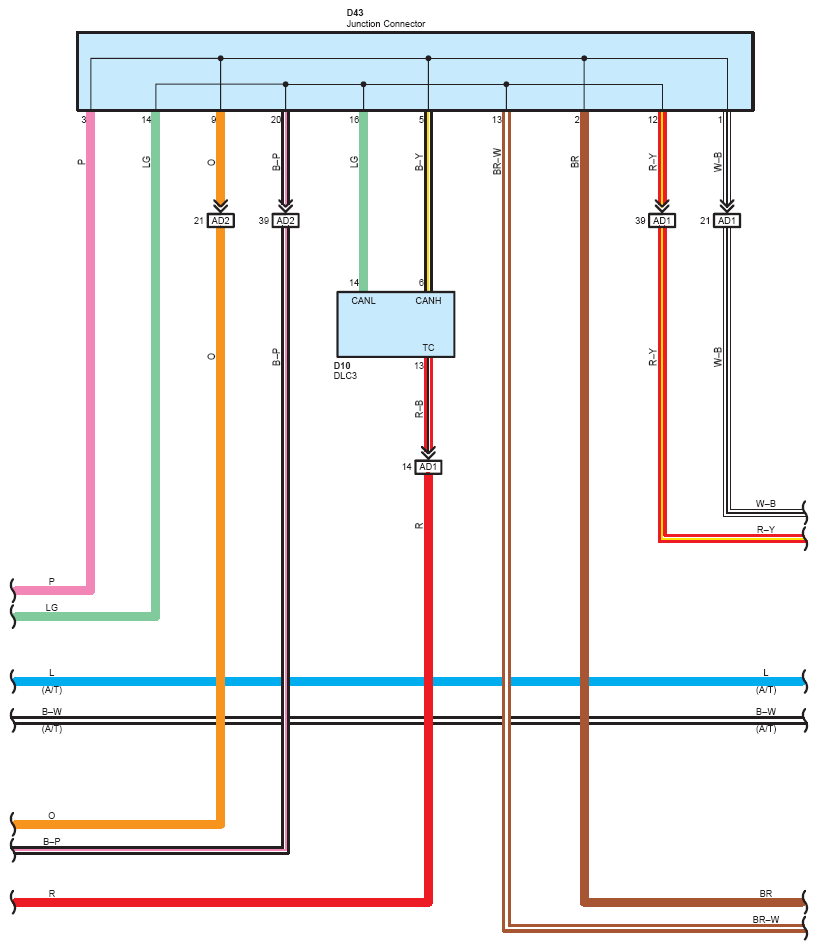

Fig 31: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (31 Of 33)
G08774107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

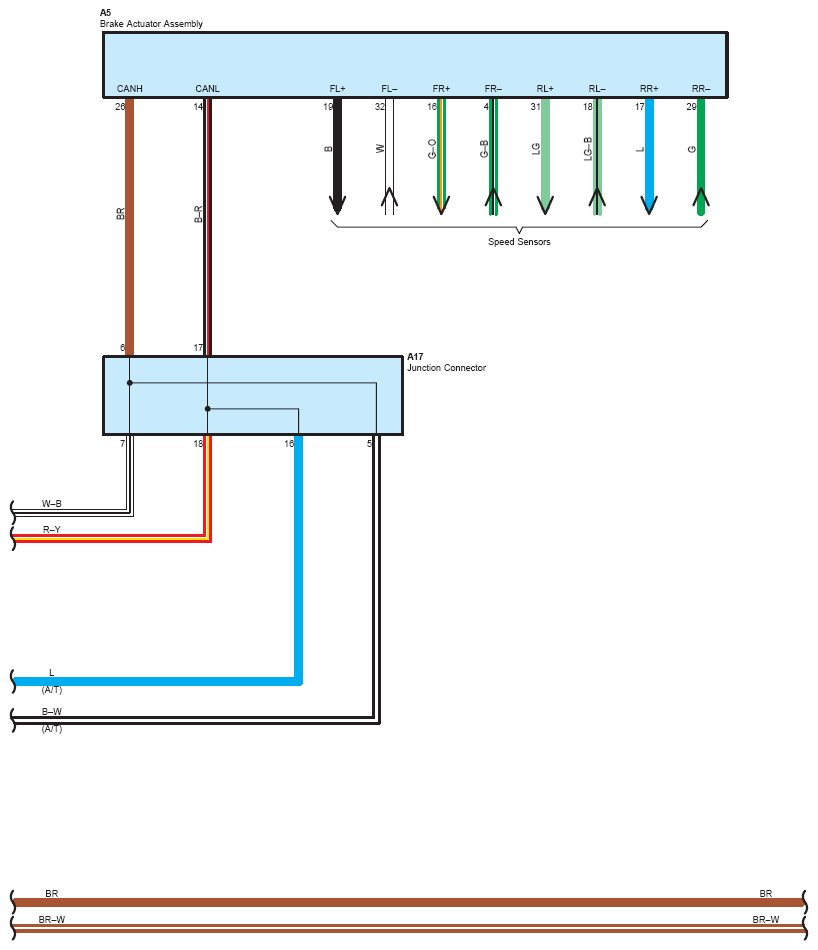

Fig 32: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (32 Of 33)
G08774108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

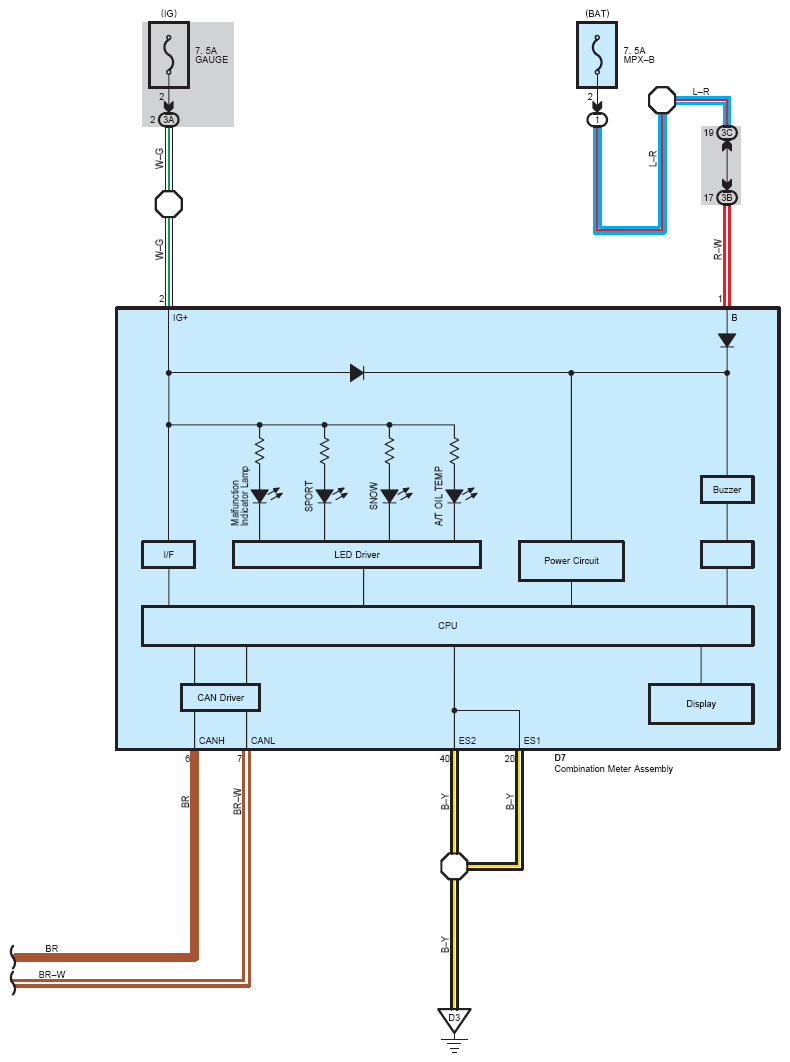

Fig 33: Cruise Control, Electronically Controlled Transmission And A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) And Shift Lock - Wiring Diagram (33 Of 33)
G08774109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
