Transmission Control Cable: Components: Illustration

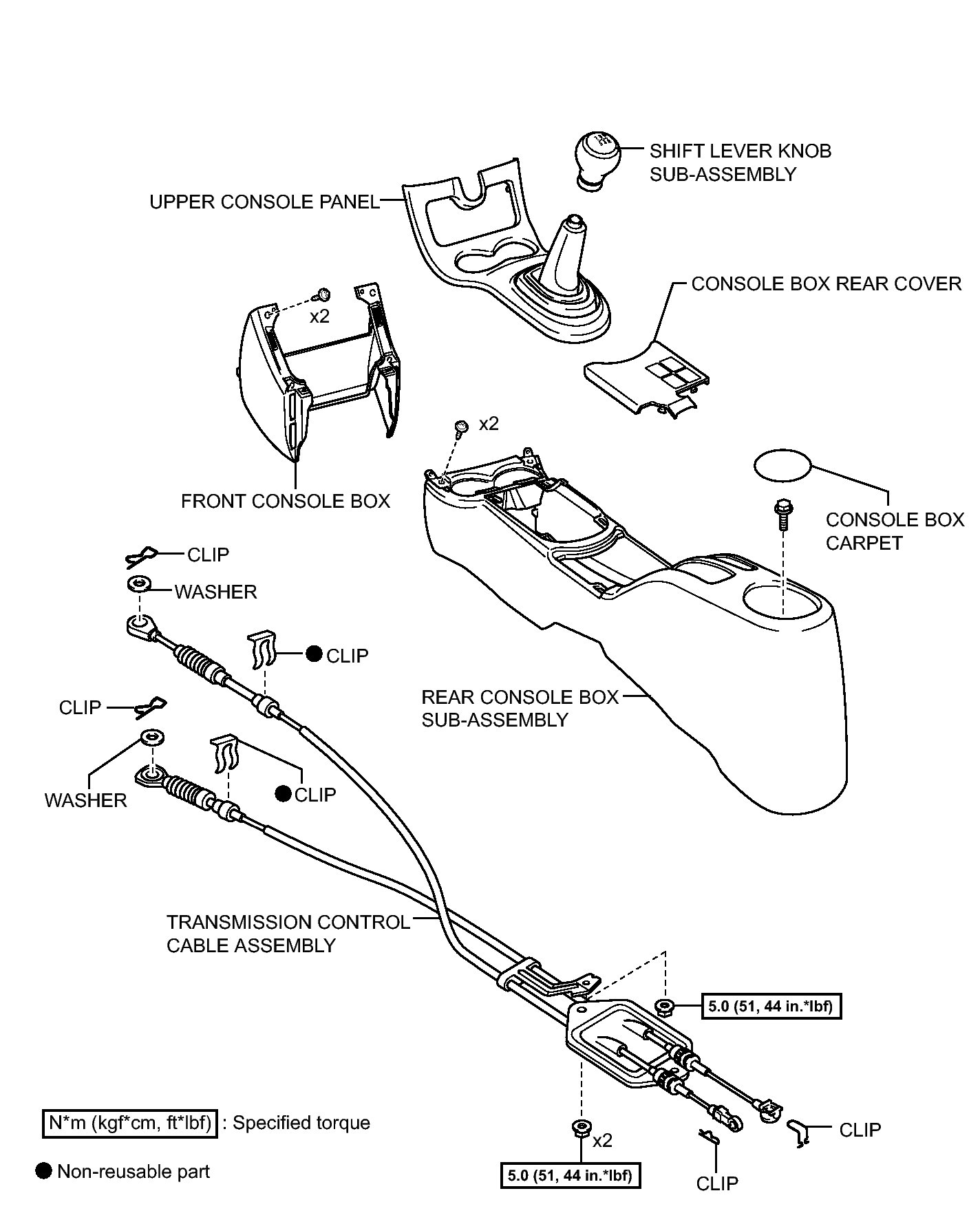

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications (1 Of 2)
GTY158056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
GTY158055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
