System Diagram

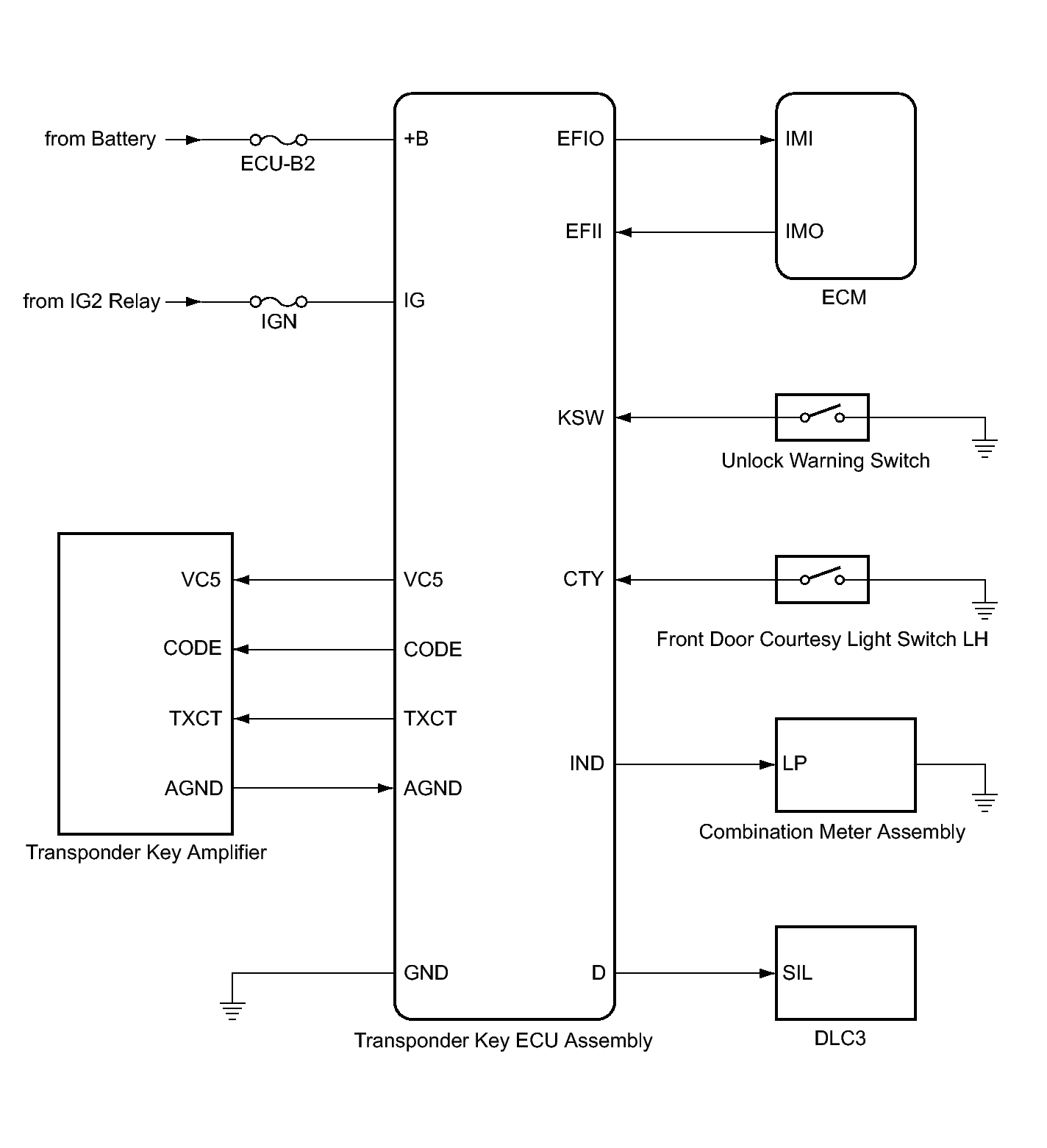

Fig 1: Engine Immobilizer System Circuit Diagram

GTY313528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
