Revolution Sensor (NOUT Sensor): Components: Illustration

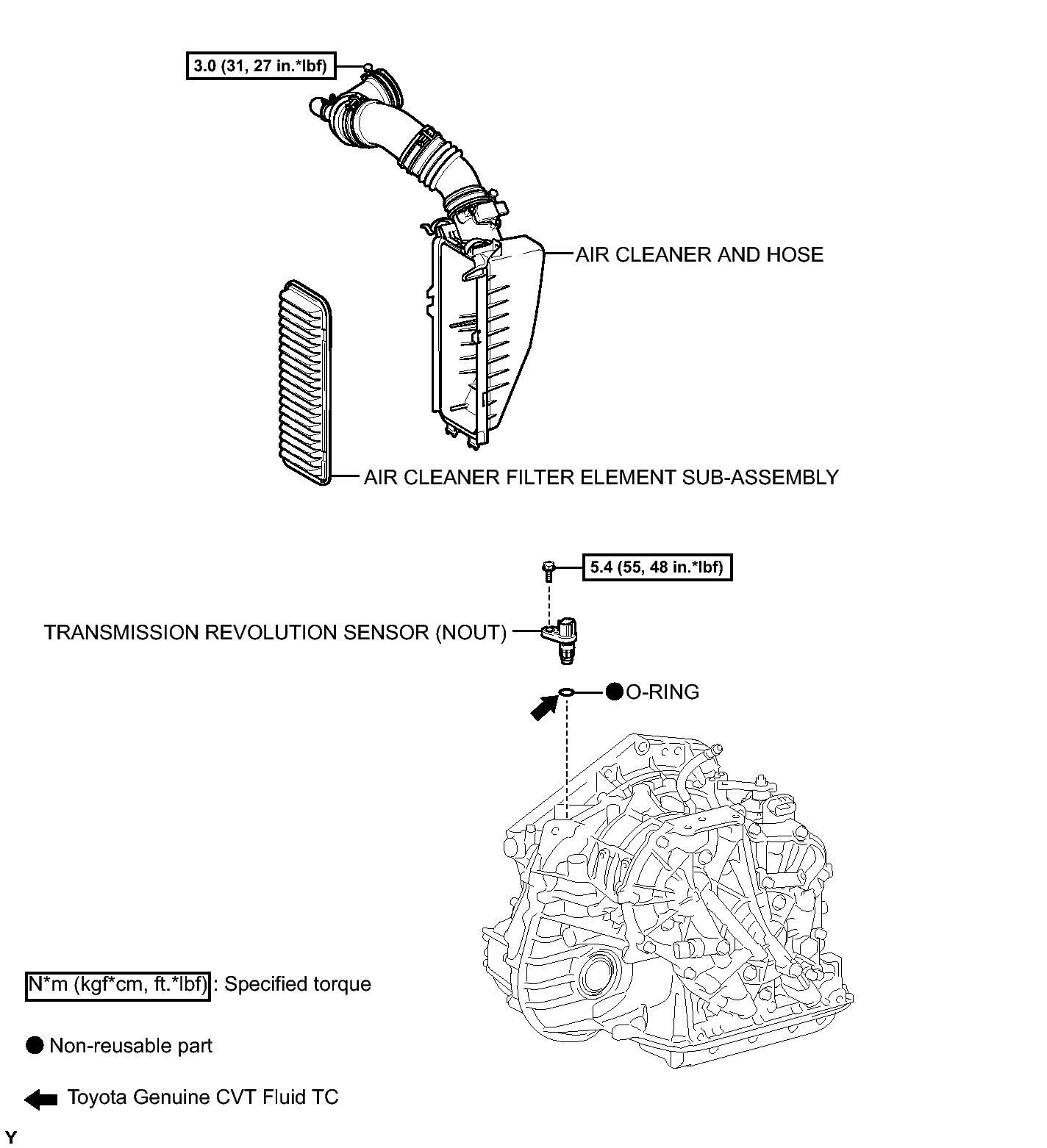

Fig 1: Identifying Revolution Sensor (NOUT Sensor) Replacement Components With Torque Specifications
GTY345451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
