System Diagram

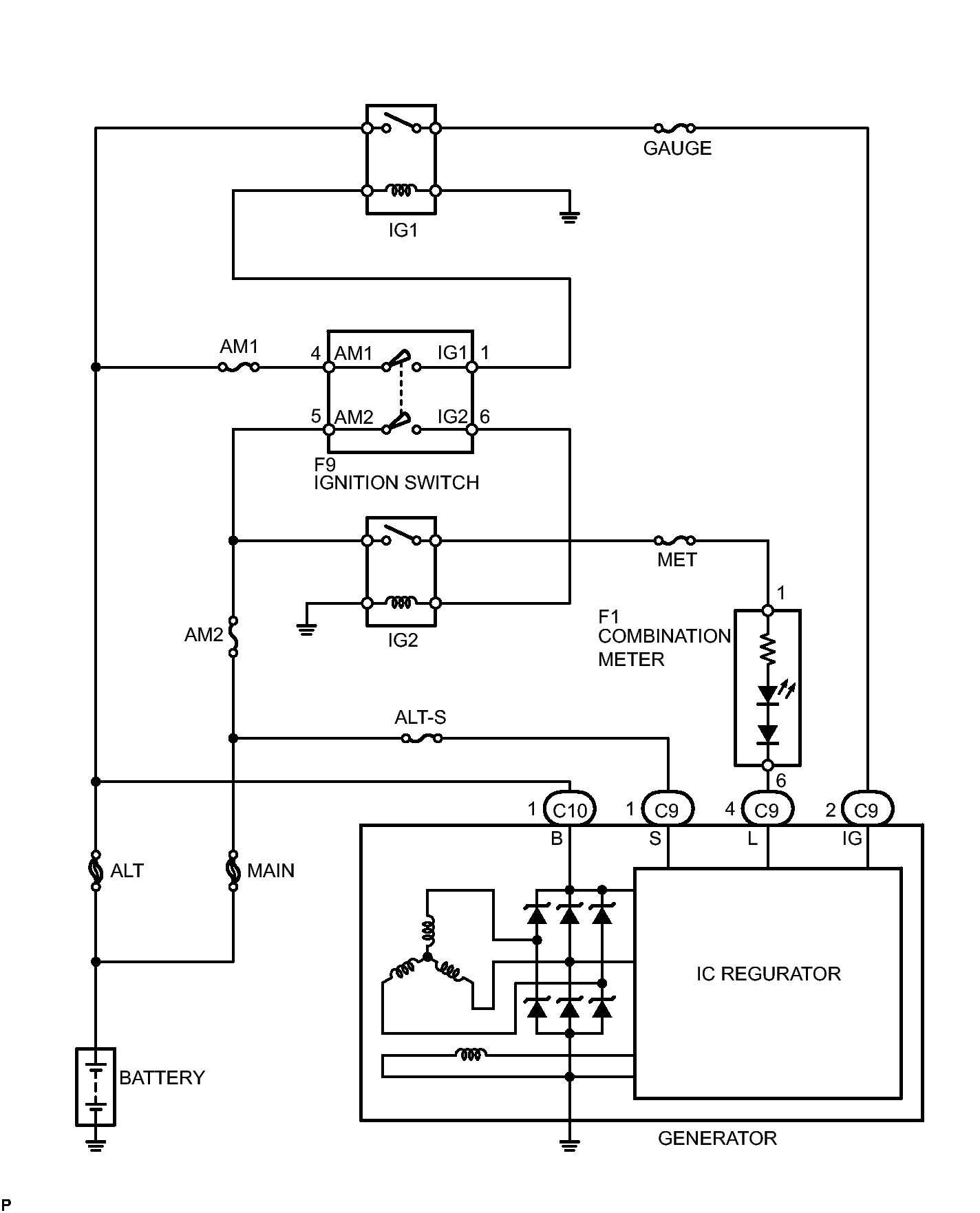

Fig 1: Charging System Circuit Diagram

GTY164841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
