Seat Heater: Notes

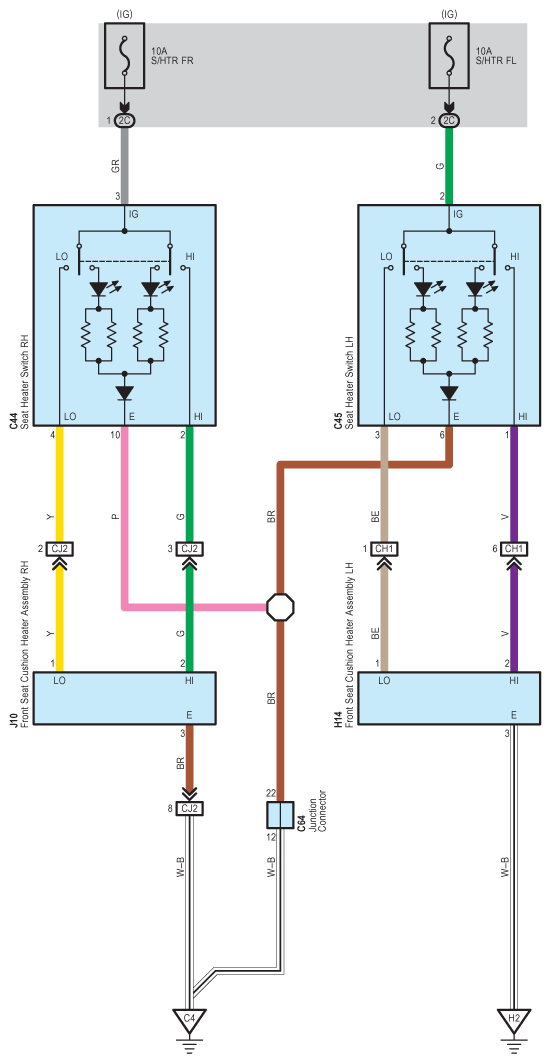

Fig 1: Seat Heater - Circuit Diagram

G07619603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
