ECM Power Source Circuit: Wiring Diagram

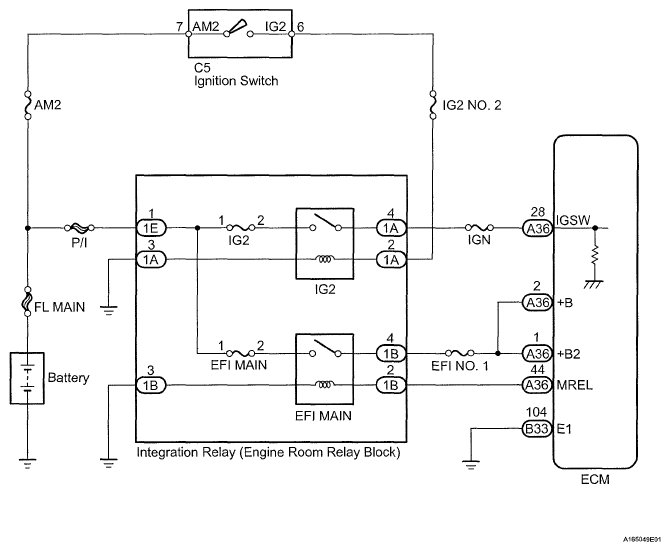

Fig 1: ECM Power Source Circuit - Wiring Diagram

G05386856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
