Home >> Scion >> 2008 >> xD Standard >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control >> Cruise Control System >> Parts Location

Parts Location

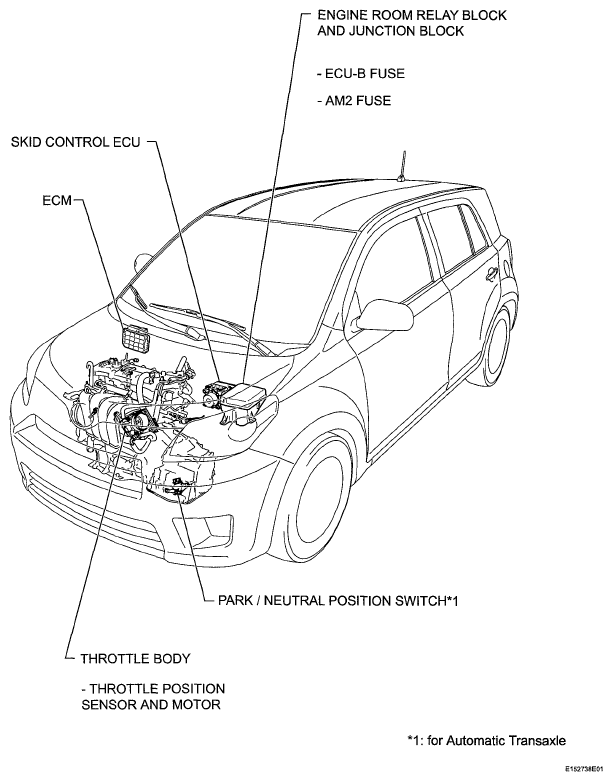

Fig 1: Identifying Cruise Control System Parts Location (1 Of 2)
G05402348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

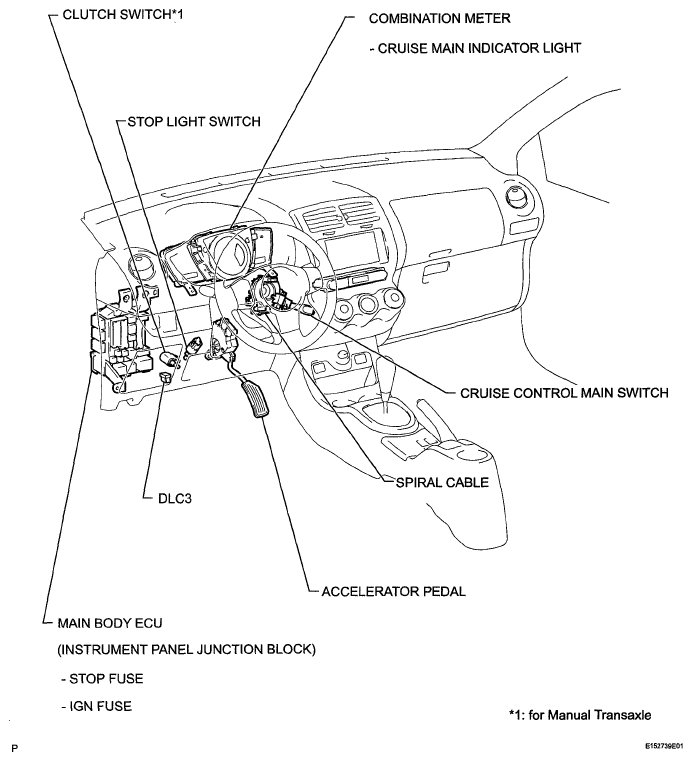

Fig 2: Identifying Cruise Control System Parts Location (2 Of 2)
G05402349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
