Front Axle Hub Bolt: Components

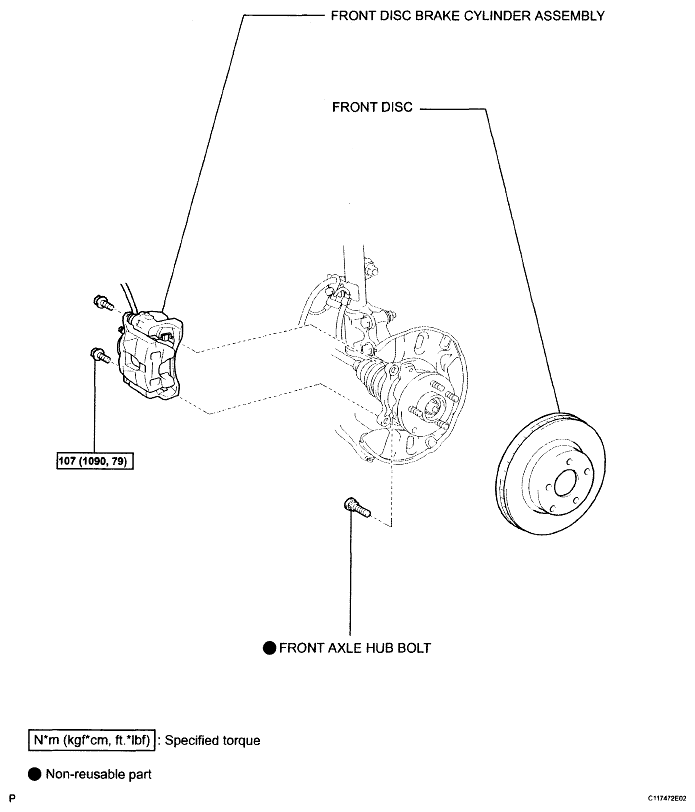

Fig 1: Identifying Front Axle Hub Bolt Components With Specification

G04868322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
