Home >> Scion >> 2007 >> tC Base, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Brakes - Abs >> Brake Actuator Components >> Components

Brake Actuator Components: Components

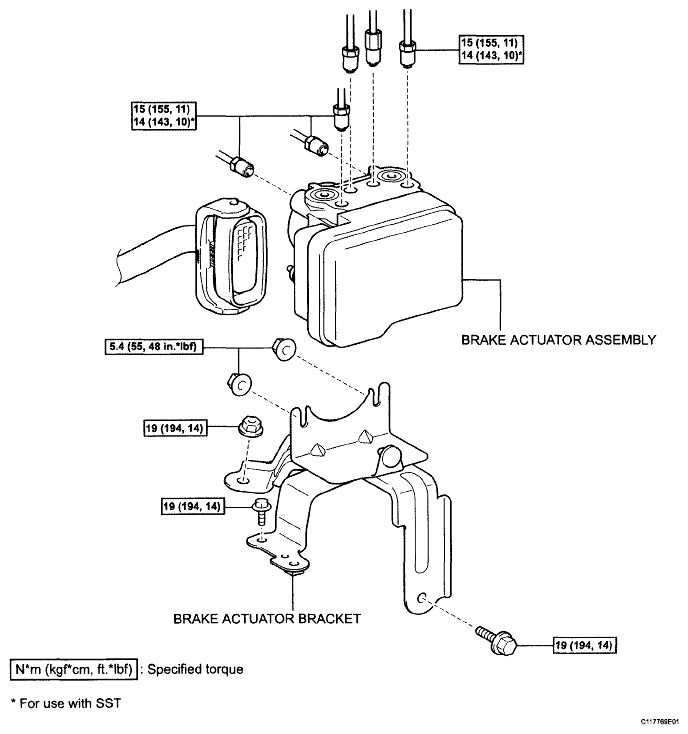

Fig 1: Identifying Brake Actuator Components With Specifications

G04868667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
