Cruise Control Switch Circuit: Wiring Diagram

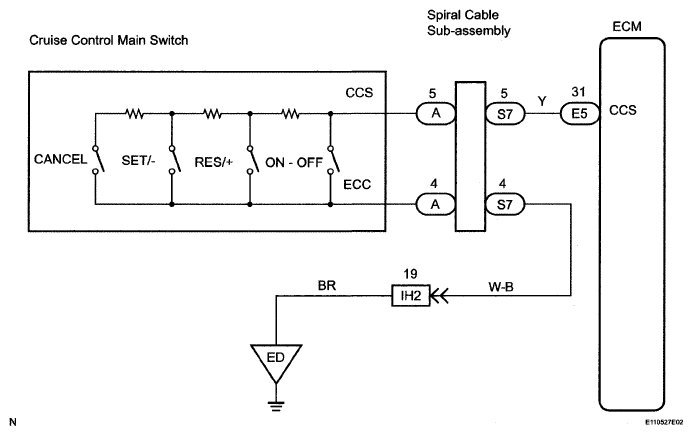

Fig 1: Identifying Cruise Control Switch Circuit Wiring Diagram

G04867025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
