VC Output Circuit: Wiring Diagram

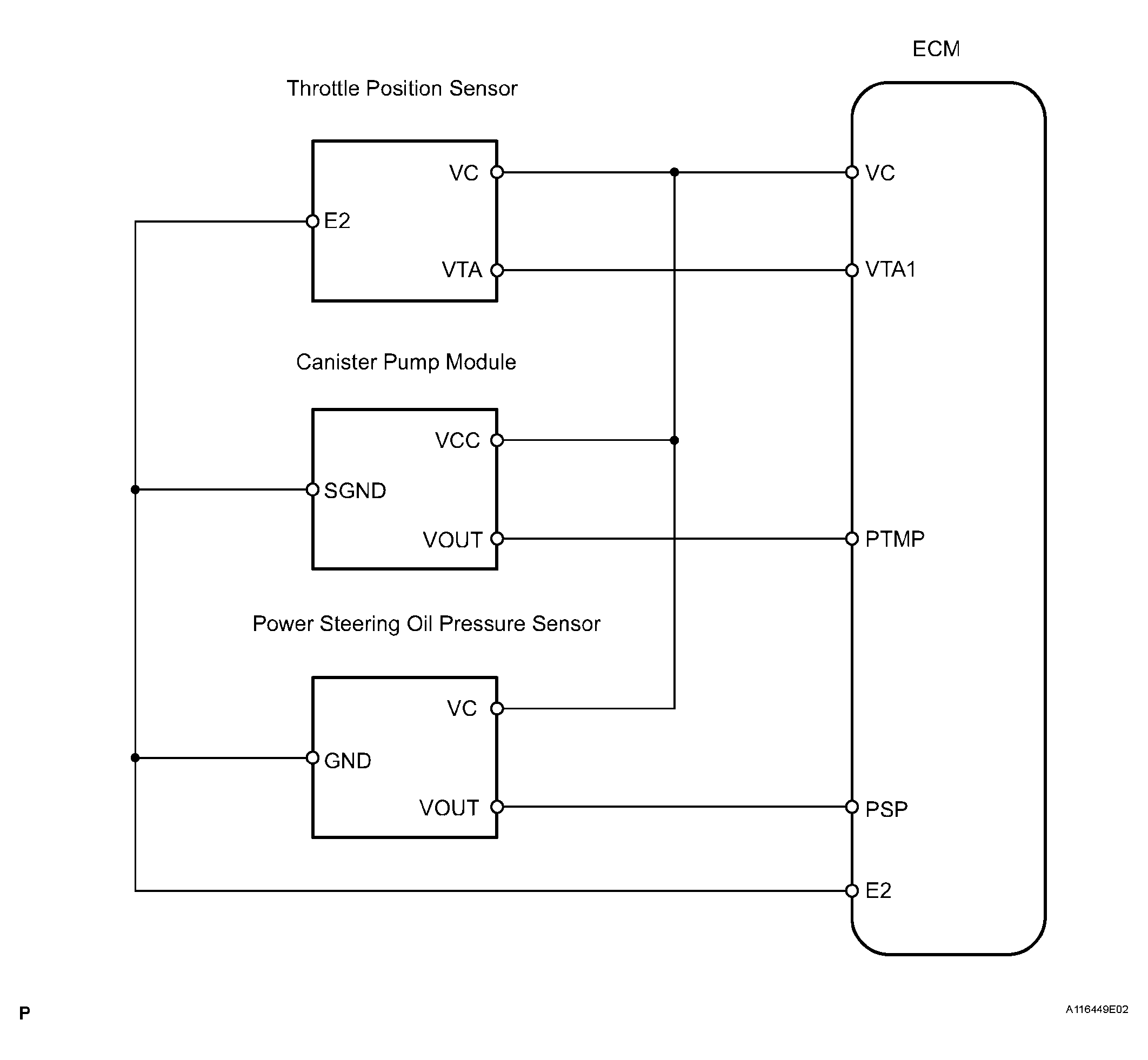

Fig 1: Identifying VC Output Circuit Wiring Diagram

G04225690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
