DTC P0505 Idle Control System Malfunction; DTC P0511 Idle Air Control Circuit: Wiring Diagram

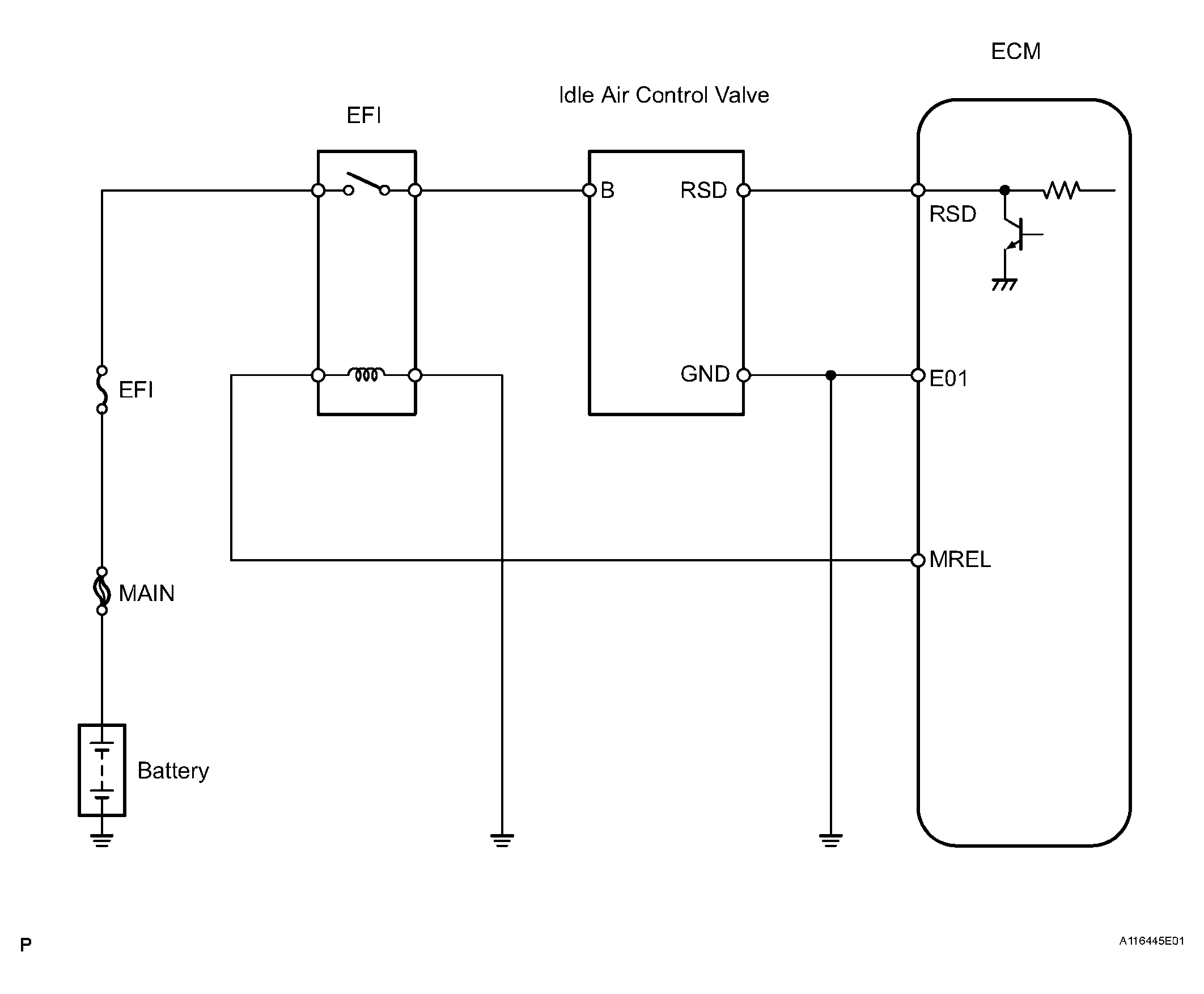

Fig 1: Wiring Diagram - Idle Air Control Circuit

G04153077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
