Transmission Wire: Components

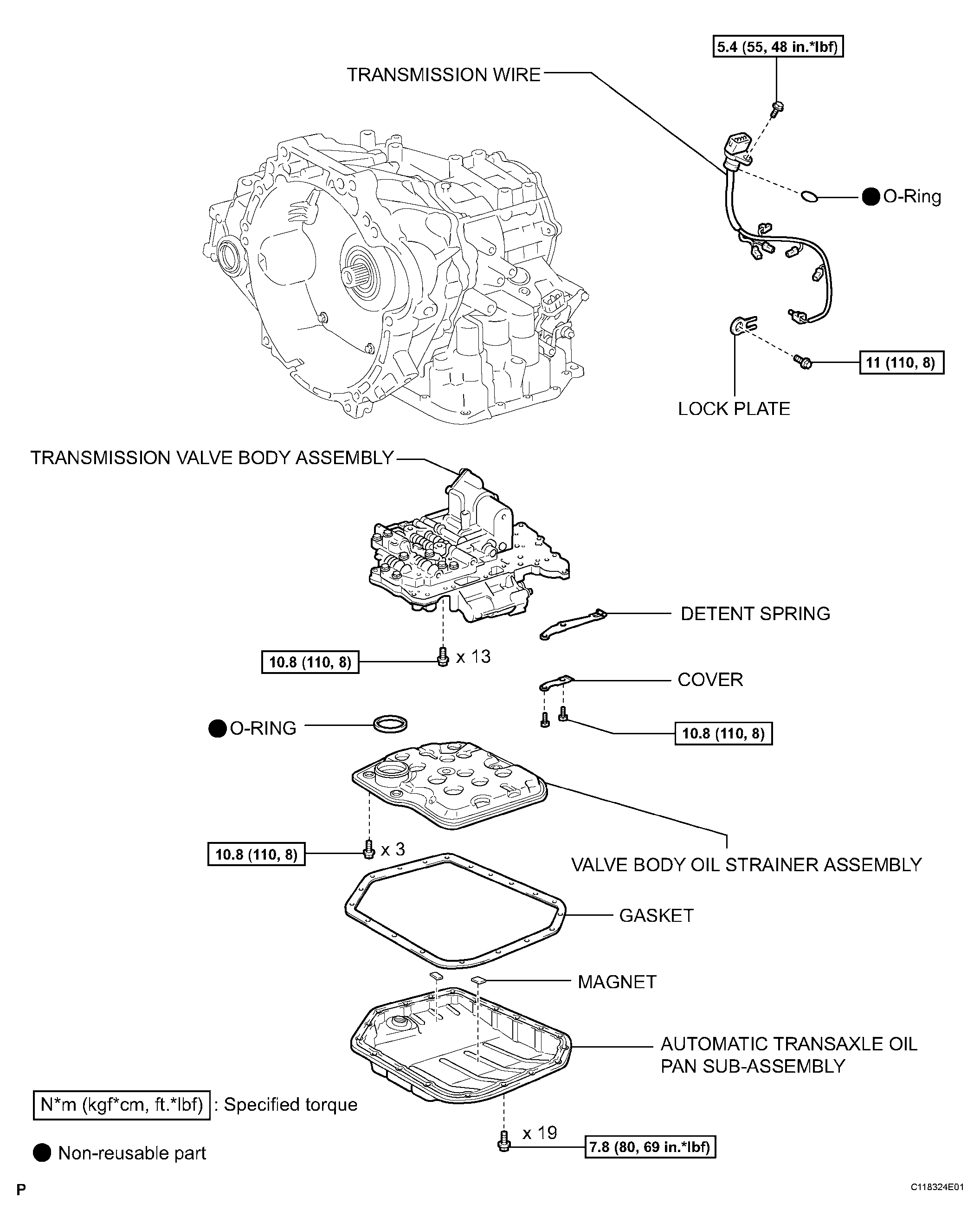

Fig 1: Identifying Transmission Wire Components

G04153981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
