ECM Power Source Circuit: Wiring Diagram

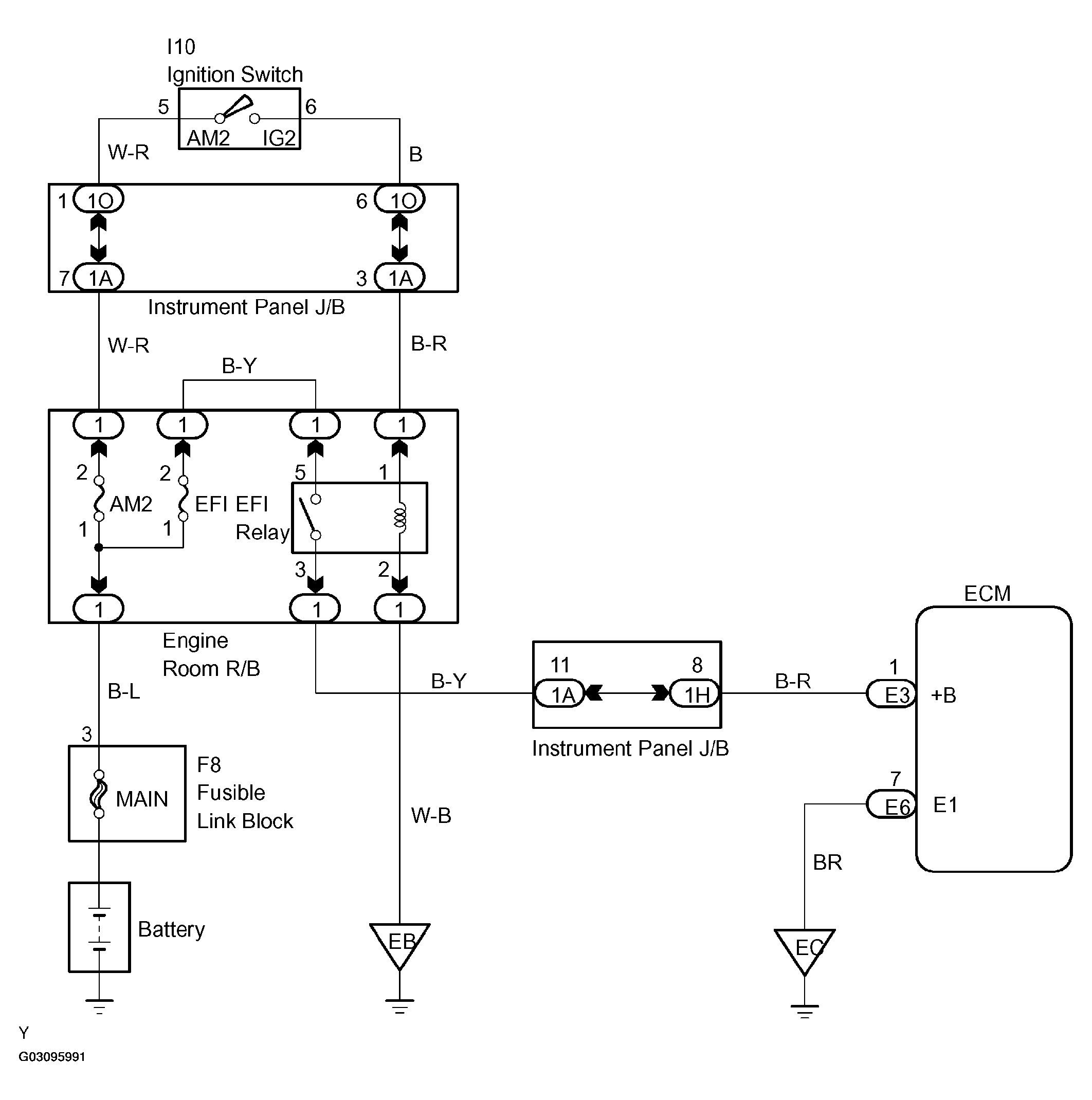

Fig 1: ECM Power Source Circuit Wiring Diagram

G03095991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
