Circuit Description

Refer to DTC P0115 in DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT, DTC P0117 ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT, DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT .

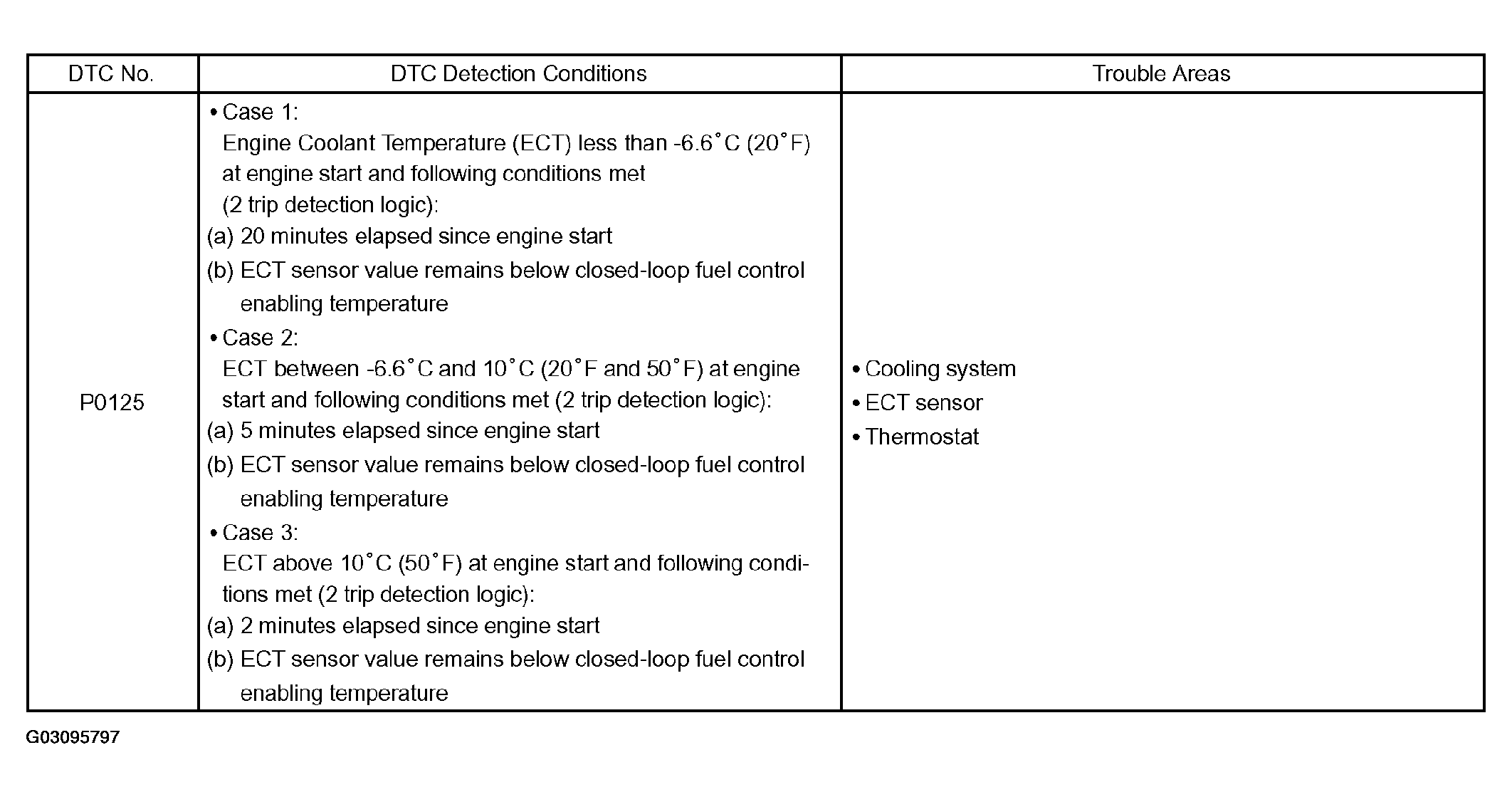

Fig 1: DTC Chart
G03095797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
