DTC P0101: Mass Or Volume Air Flow Circuit Range/Performance Problem
>>
Circuit Description
Circuit Description
Refer to DTC P0100 on
DTC P0101 MASS OR VOLUME AIR FLOW CIRCUIT RANGE/PERFORMANCE PROBLEM
.

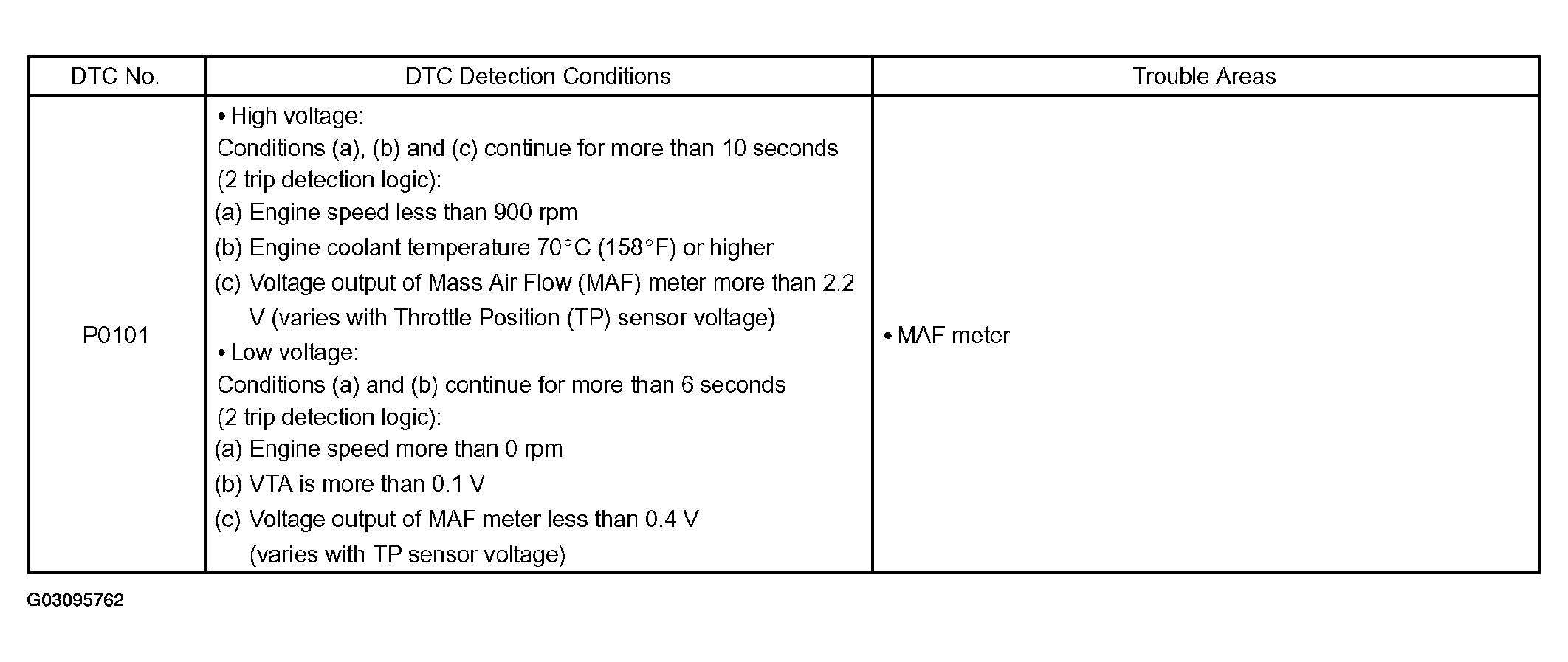

Fig 1: DTC Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
